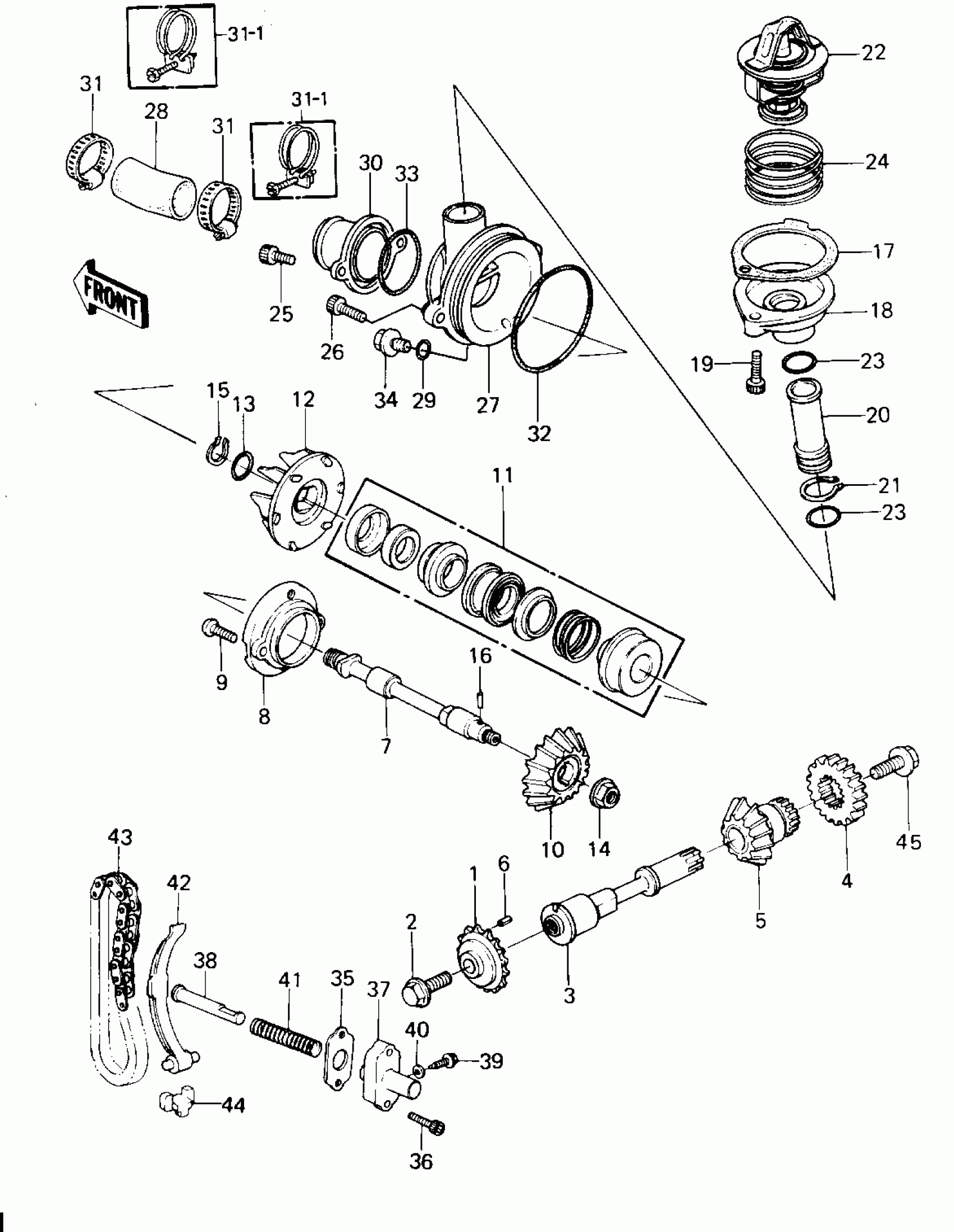

Kawasaki KZ1300-A3 WATER PUMP Diagram
#
1
SPROCKET,TIMING CHAIN
12046-1015
Unavailable
2
BOLT-FLANGED,8X20
130G0820
$4.06
3
SHAFT,WATER PUMP DRIVE
13107-1009
Unavailable
4
GEAR,21T,TIMING
13216-1010
Unavailable
5
GEAR,BEVEL,WATER PUMP
49022-1005
Unavailable
5
GEAR-BEVEL,WATER PUMP
49022-1015
$102.86
6
PIN-SPRING,4X8
555A0408
$3.92
7
SHAFT,WATER PUMP
13107-1011
Unavailable
8
RETAINER,MECHANICAL SEAL
14020-1004
Unavailable
9
SCREW-PAN-CROS
220R0516
$5.00
10
GEAR-BEVEL,WATER PUMP
49022-1006
Unavailable
11
SEAL-MECHANICAL
49063-1001
$98.46
12
IMPELLER,WATER PUMP
59256-1001
Unavailable
13
O RING,8MM
670B1508
$1.29
14
NUT,FLANGED,8MM
92015-1014
$0.65
15
RING-SNAP,11MM
92033-1024
Unavailable
16
PIN,DOWEL,4X15.8
92042-014
$0.43
17
GASKET,THERMOSTAT CAP
11009-1087
$7.74
18
CAP,THERMOSTAT
11012-1054
Unavailable
19
BOLT-SOCKET,6X25
120P0625
$1.92
20
PIPE,WATER BYPASS
32032-1184
Unavailable
21
CIRCLIP-TYPE-C,20MM
480J2000
$2.71
22
THERMOSTAT
49054-1001
$65.32
23
O RING,16MM
670B2016
$1.36
24
SPRING,THERMOSTAT
92081-1104
$14.63
25
BOLT-SOCKET,6X16
120P0616
$2.33
26
BOLT-SOCKET,6X20
120P0620
$1.74
27
COVER,WATER PUMP
14025-1077
Unavailable
28
HOSE-COOLING,31X39X85
39062-1020
Unavailable
29
O RING,8MM
670B1508
$1.29
30
FITTING,SUCTION
92005-1011
Unavailable
31
CLAMP,HOSE
92037-1177
$10.37
31-1
CLAMP,HOSE
92037-1177
$10.37
32
RING-O,67MM
92055-1032
Unavailable
33
RING-O,OR2037
92055-1033
Unavailable
34
PLUG,DRAIN,8X10
92066-1026
$10.19
35
GASKET,TIMING CHAIN TENSIONER
11009-1099
Unavailable
36
BOLT-SOCKET,6X25
120P0625
$1.92
37
TENSIONER,TIMING CHAIN
12049-1007
Unavailable
38
ROD-PUSH,TENSIONER
13116-1014
Unavailable
39
BOLT,TENSIONER ADJUST
92001-1155
$5.33
40
WASHER OIL PUMP BANJO
92022-077
$3.99
41
SPRING,TENSIONER
92081-1102
Unavailable
42
GUIDE-CHAIN,TIMING
12053-1027
Unavailable
43
CHAIN,TIMING,BF25HX72L
92057-1019
Unavailable
44
DAMPER,TIMING CHAIN GUIDE
92075-1187
Unavailable
45
BOLT-FLANGED,8X20
130G0820
$4.06
45
BOLT,FLANGED,8X17
92001-1371
Unavailable
