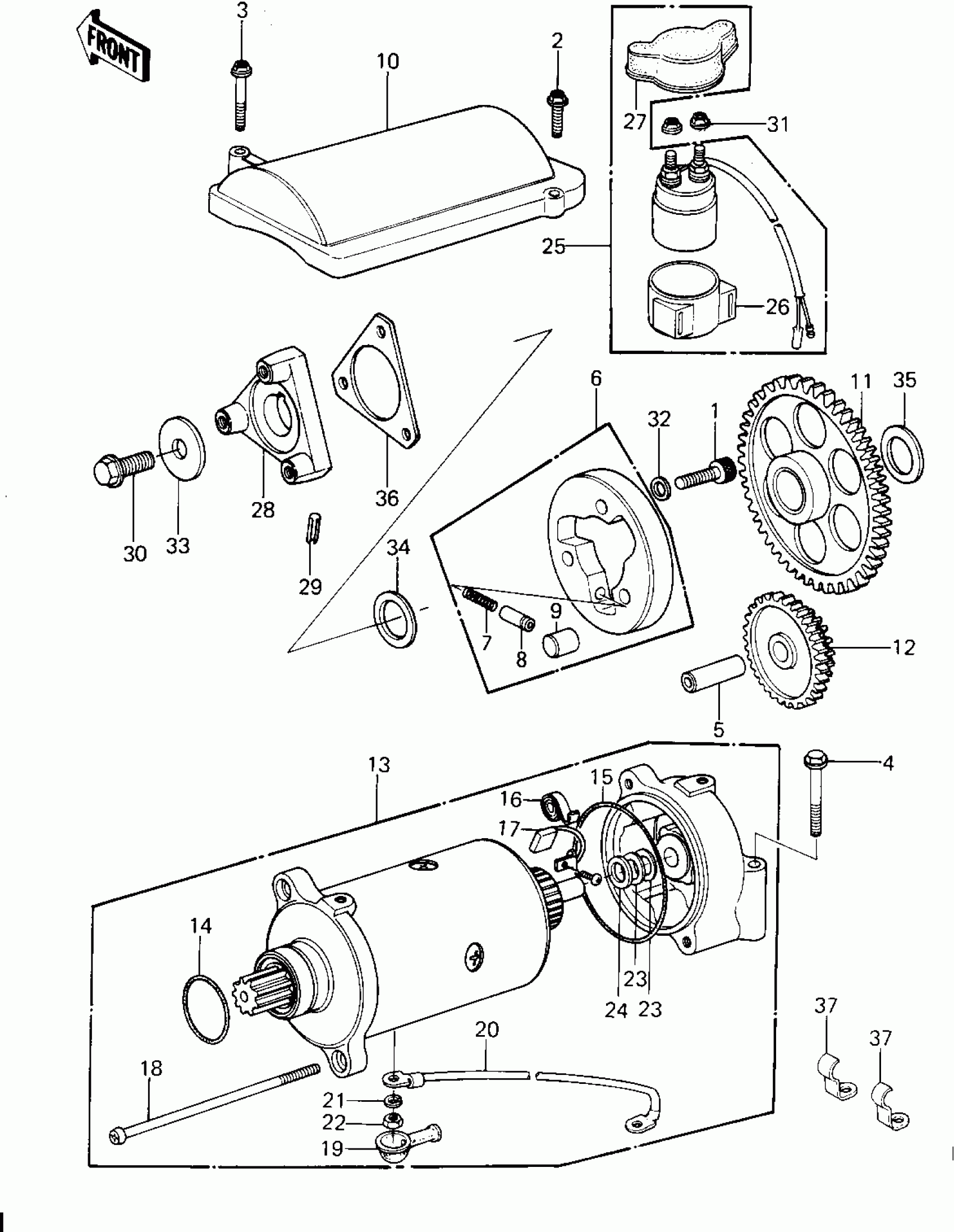

Kawasaki KZ1300-A3 STARTER MOTOR/STARTER CLUTCH (KZ1300-A3) Diagram

#

Description
Price

1

BOLT-SOCKET,8X25

120P0825

$1.92

2

BOLT-FLANGED,6X25

130B0625

$0.55

3

BOLT,FLANGED,6X40

130B0640

$0.74

4

BOLT-FLANGED,6X55

130G0655

$4.65

5

PIN-PISTON

13002-019

Unavailable

6

CLUTCH-ASSY-ONEWAY

13193-1012

Unavailable

7

PIN

92043-087

$12.76

8

SPRING

92081-110

$4.76

9

ROLLER,15X13

92122-004

$11.07

10

COVER,STARTER MOTOR

14025-1752

Unavailable

11

GEAR,STARTER CLUTCH

16085-1010

Unavailable

12

GEAR,STARTER REDUCTON

16085-1011

$81.30

13

STARTER-ELECTRIC

21163-1014

$518.02

14

RING-O,STARTER MOTOR,25MM

21027-004

$9.91

15

RING-O,STARTER MOTOR

21027-003

Unavailable

16

SPRING-BRUSH

21040-003

Unavailable

17

BRUSH,CARBON

21039-003

$40.76

18

SCREW,PAN HEAD,5X110

21015-005

$9.81

19

GROMMET,STARTER TERMINAL

21017-017

$9.43

20

WIRE-LEAD,STRTR MOTOR

26011-1094

$49.87

21

WASHER SPRING 6MM

461F0600

$0.69

22

NUT 6MM

312B0600

$0.72

23

WASHER,9.1X18X0.2

21025-011

Unavailable

24

WASHER,THRUST,T=1.6

21025-010

Unavailable

25

SWITCH,MAGNETIC

27010-1025

$127.17

26

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

27

COVER,MAGNETIC SWITCH

14025-1165

Unavailable

28

HUB,TORSION DAMPER

49030-1006

$112.51

29

PIN-SPRING,4X6

555A0406

$5.71

30

BOLT,FLANGED,12X25

92001-1425

Unavailable

31

NUT,FLANGED,6MM

92015-1078

Unavailable

32

WASHER,8.5X13.5X2

92022-1108

$4.31

33

WASHER,PLAIN

92022-1263

$42.02

34

SHIM,25.3X36X0.30

92025-1019

Unavailable

35

SPACER,25.0X34X2.3

92026-1059

Unavailable

36

SPACER,TORSION DAMPER

92026-1090

$13.12

37

CLAMP,LEAD WIRE

92037-1345

$4.75
