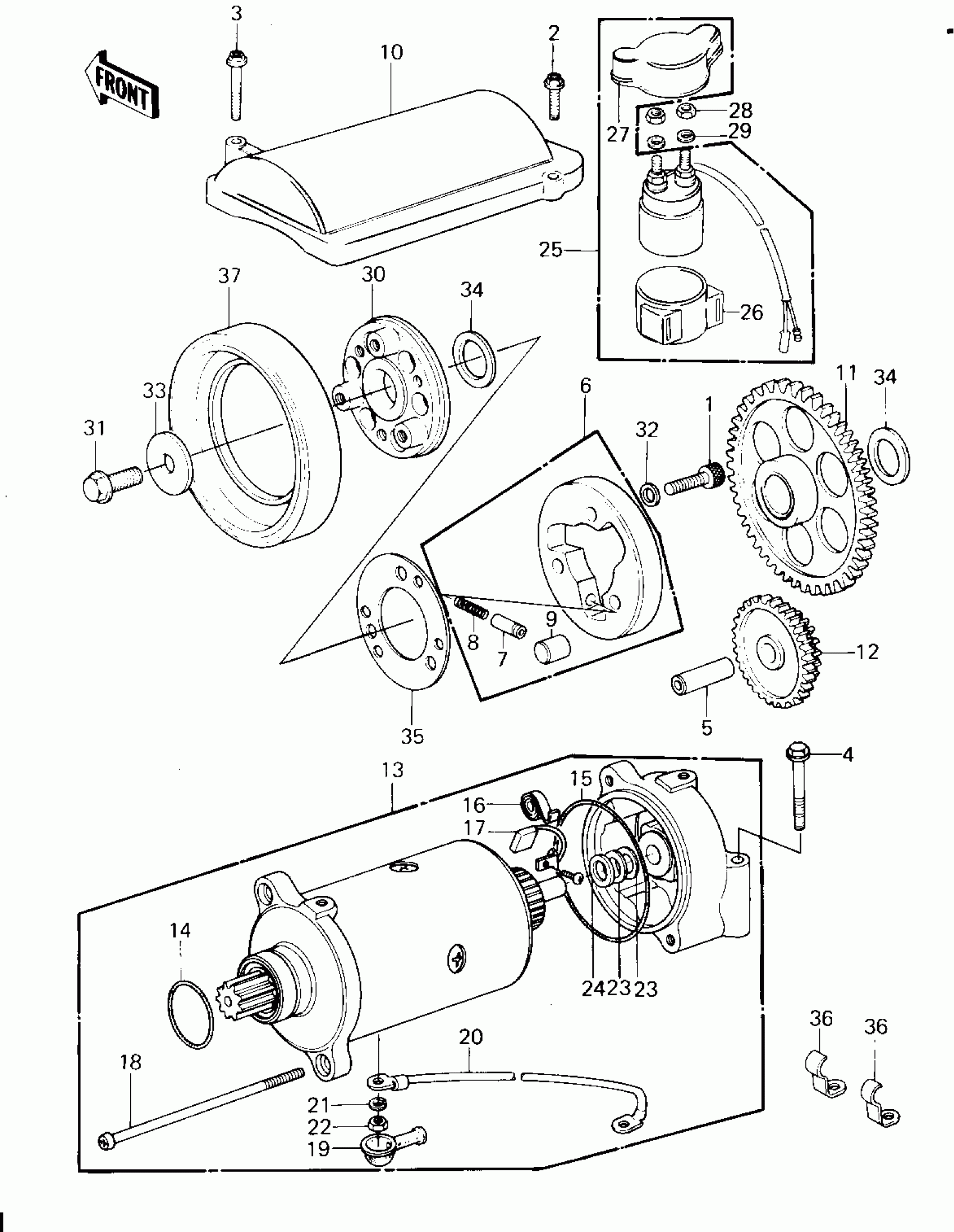

Kawasaki KZ1300-A3 STARTER MOTOR/STARTER CLUTCH (KZ1300-A1/ Diagram
#
Description
Price
1
BOLT-SOCKET,8X30
120P0830
$2.62
2
BOLT-FLANGED,6X25
130B0625
$0.55
3
BOLT,FLANGED,6X40
130B0640
$0.74
4
BOLT-FLANGED,6X55
130G0655
$4.65
5
PIN-PISTON
13002-019
Unavailable
6
CLUTCH-ASSY-ONEWAY
13193-1012
Unavailable
7
PIN
92043-087
$12.76
8
SPRING
92081-110
$4.76
9
ROLLER,15X13
92122-004
$11.07
10
COVER,STARTER MOTOR
14025-1752
Unavailable
11
GEAR,STARTER CLUTCH
16085-1010
Unavailable
12
GEAR,STARTER REDUCTON
16085-1011
$81.30
13
MOTOR ASSY,STARTER
21163-1005
$632.12
14
RING-O,STARTER MOTOR,25MM
21027-004
$9.91
15
RING-O,STARTER MOTOR
21027-003
Unavailable
16
SPRING-BRUSH
21040-003
Unavailable
17
BRUSH,CARBON
21039-003
$40.76
18
SCREW,PAN HEAD,5X110
21015-005
$9.81
19
GROMMET,STARTER TERMINAL
21017-017
$9.43
20
WIRE,LEAD,STARTER MTR
26011-1054
$54.32
21
WASHER SPRING 6MM
461F0600
$0.69
22
NUT 6MM
312B0600
$0.72
23
WASHER,9.1X18X0.2
21025-011
Unavailable
24
WASHER,THRUST,T=1.6
21025-010
Unavailable
25
SWITCH,MAGNETIC
27010-1025
$127.17
26
DAMPER,MAGNETIC SWITCH
21064-002
Unavailable
27
COVER,MAGNETIC SWITCH
14025-1165
Unavailable
28
NUT 6MM
312B0600
$0.72
29
WASHER SPRING 6MM
461F0600
$0.69
30
HUB,TORSION DAMPER
49030-1002
$116.87
31
BOLT,DAMPER,L.H.THRED
92001-1212
Unavailable
32
WASHER,8.5X13.5X2
92022-1108
$4.31
33
WASHER-PLN,11X36X4
92022-307
Unavailable
34
SPACER,25.0X34X2.3
92026-1059
Unavailable
35
PLATE,CLUTCH STARTER
92026-112
Unavailable
36
CLAMP,LEAD WIRE
92037-1345
$4.75
37
DAMPER,TORSION
92075-1118
$162.26
