Description

Price

1

SPROCKET,SECOND,DRVN

13112-1003

Unavailable

2

BEARING-BALL,#6009

92045-1015

$35.50

3

BEARING,NEEDLE,HK2520

92046-1014

$24.06

4

SPROCKET,TIMING,28T&24T

12046-1011

Unavailable

5

FOLLOWER,CAM

13048-1001

Unavailable

6

SHAFT,SECONDARY

13107-1007

Unavailable

7

SPROCKET,PRIMARY,DRVN

13112-1001

Unavailable

7

SPROCKET-PRIMARY,32T

13112-1007

Unavailable

8

SPROCKET,SECOND,DRIVE

13112-1002

Unavailable

9

RING-POSITION

14013-1001

Unavailable

10

GEAR,OIL PUMP,INPUT,19T

16085-1004

$39.47

11

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

12

WASHER,25.3X33X1

92022-1109

$5.96

13

SPRING,CAM FOLLOWER

92081-1085

$40.67

14

COLLAR,25X40X26.1

92027-1136

$17.32

15

CHAIN,PRIMARY

92057-1016

Unavailable

16

CHAIN,SECONDARY

92057-1017

Unavailable

17

PLATE,SECONDARY SHAFT

13169-1327

Unavailable

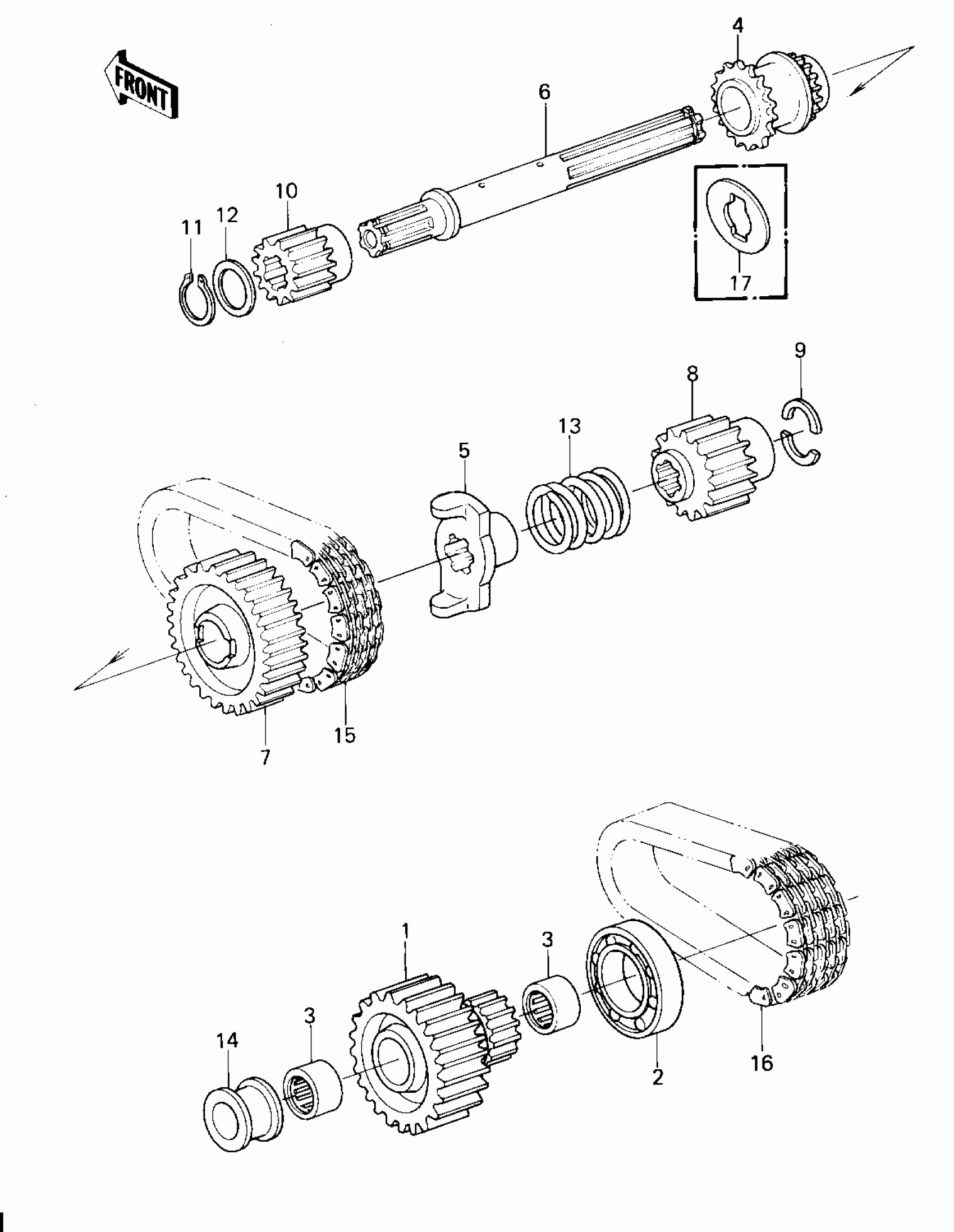

Kawasaki KZ1300-A3 SECONDARY SHAFT Diagram

SPROCKET,SECOND,DRVN

BEARING-BALL,#6009

BEARING,NEEDLE,HK2520

SPROCKET,TIMING,28T&24T

FOLLOWER,CAM

SHAFT,SECONDARY

SPROCKET,PRIMARY,DRVN

SPROCKET-PRIMARY,32T

SPROCKET,SECOND,DRIVE

RING-POSITION

GEAR,OIL PUMP,INPUT,19T

CIRCLIP-TYPE-C,25MM

WASHER,25.3X33X1

SPRING,CAM FOLLOWER

COLLAR,25X40X26.1

CHAIN,PRIMARY

CHAIN,SECONDARY

PLATE,SECONDARY SHAFT
