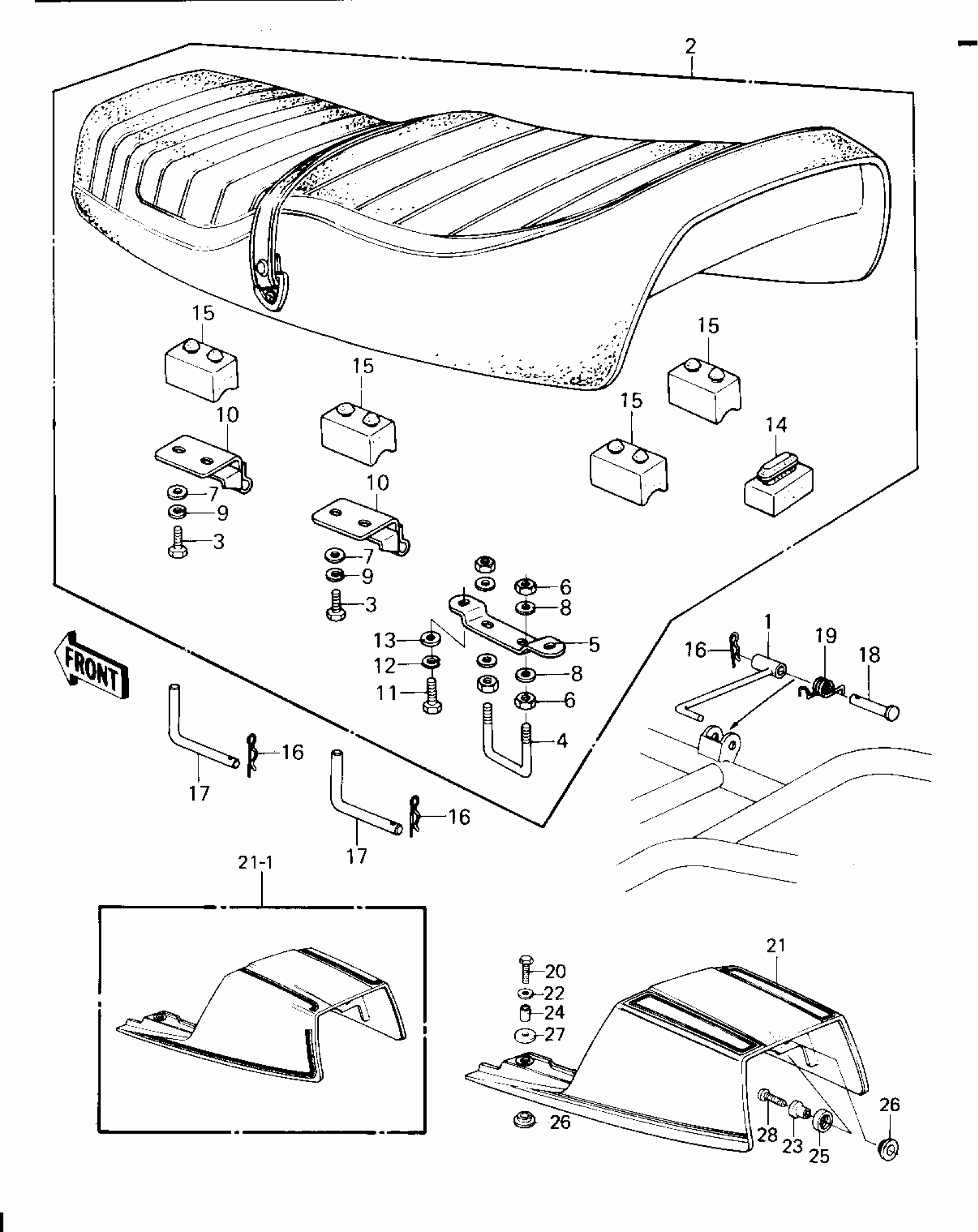

Kawasaki KZ1300-A3 SEAT/SEAT COVER Diagram
#
Description
Price
1
STAY,SEAT STAND
35011-1018
$10.20
2
DESC-SEAT-ASSY,DUAL
53001-1358
$696.97
2
DESC-SEAT-ASSY,DUAL
53001-1358
$696.97
3
BOLT-UPSET 6X14
112B0614
Unavailable
4
HOOK,SEAT
53056-002
$16.66
5
BRACKET, SEAT CATCH
53058-001
Unavailable
6
NUT 6MM
311B0600
$0.93
7
WASHER PLAIN 6MM
411B0600
$2.84
8
WASHER PLAIN 6MM
411B0600
$2.84
9
WASHER SPRING 6MM
461F0600
$0.69
10
HINGE,SEAT
53009-1011
Unavailable
11
BOLT-UPSET 6X14
112B0614
Unavailable
12
WASHER SPRING 6MM
461F0600
$0.69
13
WASHER PLAIN 6MM
411B0600
$2.84
14
DAMPER
92075-099
$5.52
15
DAMPER RUBBER,SEAT
92075-139
$11.46
16
COTTER PIN
92041-003
$5.72
16
PIN,SNAP
554A0600
$0.93
17
PIN,SEAT PIVOT
92043-1021
$5.38
18
PIN,SEAT STAND
92043-1045
$3.10
19
SPRING,SEAT STAND
92081-1100
$9.08
20
BOLT 6X22
112B0622
$3.48
21
COVER,SEAT,L.S.BLUE
14025-1064-C1
Unavailable
21-1
COVER,SEAT,EBONY
14025-1064-8G
Unavailable
22
WASHER,7X24X1.6
92022-228
$3.92
23
COLLAR,SEAT COVER
92027-1122
Unavailable
24
COLLAR
92027-241
$6.57
25
DAMPER,SEAT COVER FIT
92075-1097
Unavailable
26
RUBBER,FENDER COVER
92075-174
$4.78
27
DAMPER,FEMALE
92075-175
$4.39
28
SCREW PAN HEAD 6X25
220B0625
$2.60
