Description

Price

1

CYLINDER ASSY,REAR

43015-1062

Unavailable

2

PISTON-COMP-BRAKE

43020-1024

Unavailable

3

ROD ASSY,BRAKE

43010-1001

$69.17

4

STOPPER,PISTON

43022-1002

$5.15

5

DUST COVER

49016-1026

$14.38

6

STOPPER,DUST COVER

43022-1003

$5.15

7

DIAPHRAGM

43028-1007

Unavailable

8

CAP,OIL CUP

43026-1013

$46.83

9

SWITCH,REAR BRAKE

27010-1027

$112.12

10

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$5.84

11

HOSE-BRAKE,L=620

43059-1177

$61.23

12

GROMMET,HOSE CLAMP

43064-007

$5.52

13

BOLT,OIL,L=23

92002-1888

$5.48

14

WASHER,10.5X15X1.5

43067-001

$2.15

15

BOLT,FLANGED,8X28

92001-1095

$6.57

16

BUSHING

92092-1007

$14.29

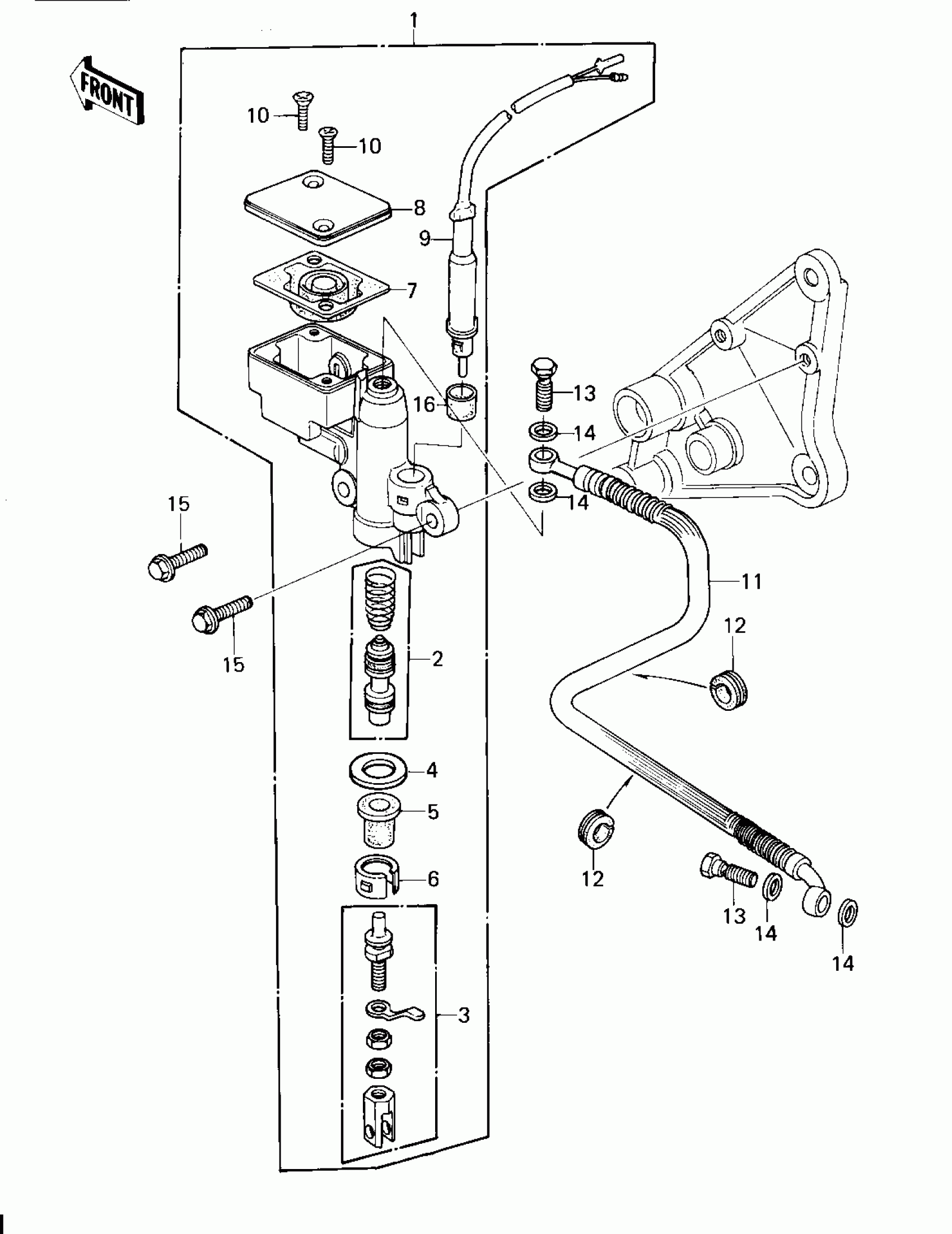

Kawasaki KZ1300-A3 REAR MASTER CYLINDER Diagram

CYLINDER ASSY,REAR

PISTON-COMP-BRAKE

ROD ASSY,BRAKE

STOPPER,PISTON

DUST COVER

STOPPER,DUST COVER

DIAPHRAGM

CAP,OIL CUP

SWITCH,REAR BRAKE

SCREW-CSK-CROS,5X12,BLACK

HOSE-BRAKE,L=620

GROMMET,HOSE CLAMP

BOLT,OIL,L=23

WASHER,10.5X15X1.5

BOLT,FLANGED,8X28

BUSHING
