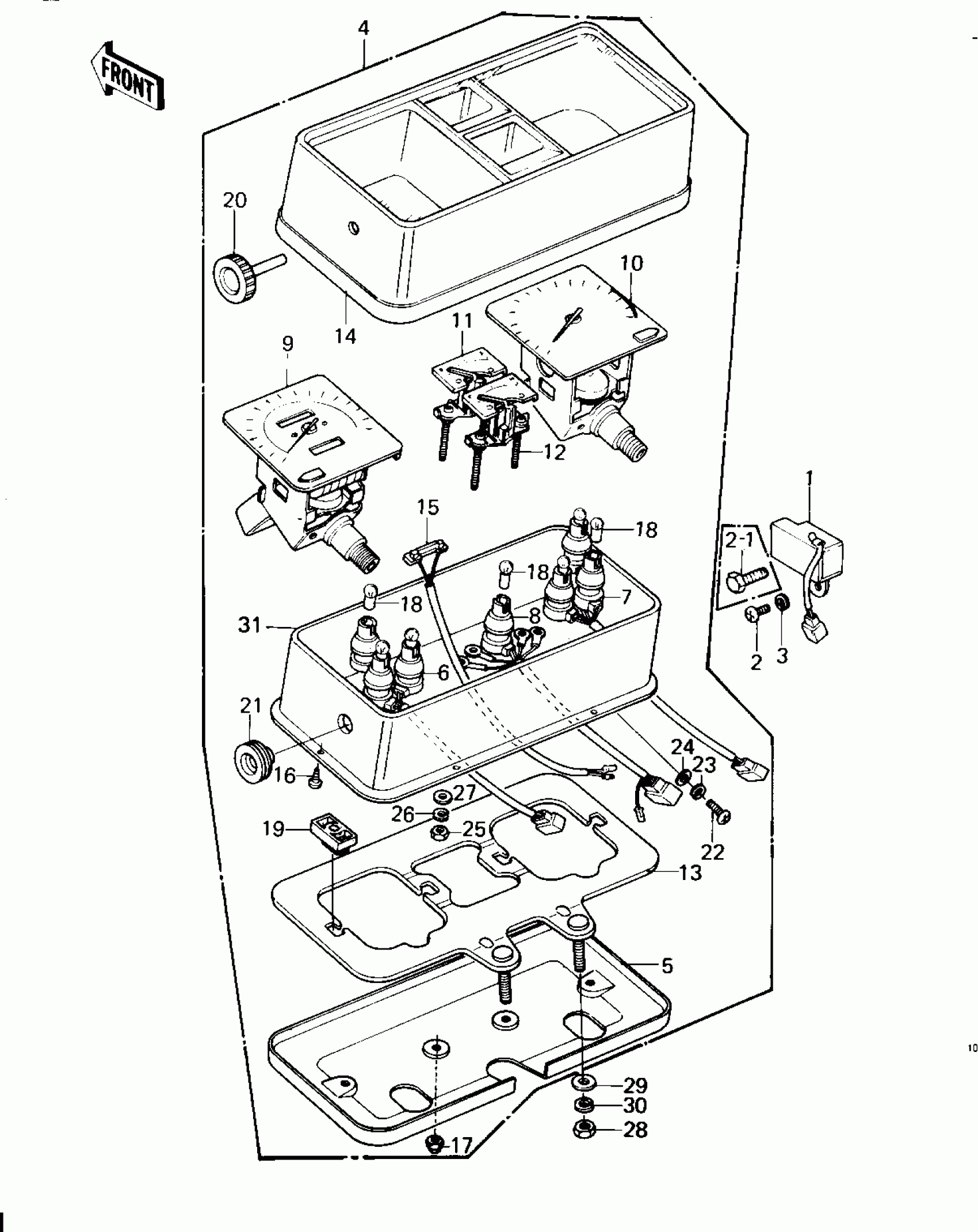

Kawasaki KZ1300-A3 METERS Diagram

#

Description
Price

1

REGULATOR,VOLTAGE

21066-1006

$108.55

2

SCREW PAN HEAD 6X12

220B0612

Unavailable

2-1

BOLT-UPSET,6X12

112G0612

$1.45

3

WASHER SPRING 6MM

461F0600

$0.69

4

METER ASSY,MPH

25001-1299

$832.81

4

METER ASSY,MPH

25001-1147

$995.42

4

METER ASSY,MPH

25001-1147

$995.42

4

25001-1148 (Canada)

25001-1088

Unavailable

4

METER ASSY,KPH (Canada)

25001-1148

Unavailable

5

COVER,METER,LOWER

14025-1098

Unavailable

6

SOCKET ASSY,SPEEDOMET

23008-1033

$30.29

7

SOCKET ASSY,TACHOMETE

23008-1034

$30.29

8

SOCKET ASSY,FUEL & TE

23008-1035

$23.12

9

SPEEDOMETER ASSY,MPH

25005-1044

$339.45

9

SPEEDOMETER UNIT,MPH

25005-1069

Unavailable

9

SPEEDOMETER UNIT,KPH (Canada)

25005-1051

Unavailable

10

TACHOMETER UNIT

25015-1037

$449.70

11

METER,FUEL

28011-1003

$107.43

12

METER,TEMPERATURE

28011-1007

Unavailable

12

METER,TEMPERATURE

28011-1007

Unavailable

13

BRACKET,METER

25008-1015

$42.09

14

COVER,METER,UPPER

25023-1010

Unavailable

15

SENSOR,DISTANCE

27010-1032

$35.43

16

SCREW,TAPPING,3.5X12

92008-012

$4.38

17

NUT-CAP,5MM

322N0500

$2.85

18

BULB 12V 3W

92069-018

$4.87

19

DAMPER,METER BRACKET

92075-1140

$5.88

20

KNOB,TRIP

92077-1008

Unavailable

21

SEAL,TRIP KNOB

92093-1029

$5.15

22

SCREW PAN HEAD 4X8

220B0408

$0.67

23

WASHER SPRING 4MM

461F0400

Unavailable

24

WASHER PLAIN 4MM

410B0400

$0.48

25

NUT-HEX

311B0400

$0.52

26

WASHER SPRING 4MM

461F0400

Unavailable

27

WASHER PLAIN 4MM

410B0400

$0.48

28

NUT-HEX-SMALL,8MM

317B0800

$0.67

29

WASHER PLAIN 8MM

411B0800

$0.93

30

WASHER SPRING 8MM

461F0800

$0.40

31

COVER,METER CASE

14025-1805

Unavailable
