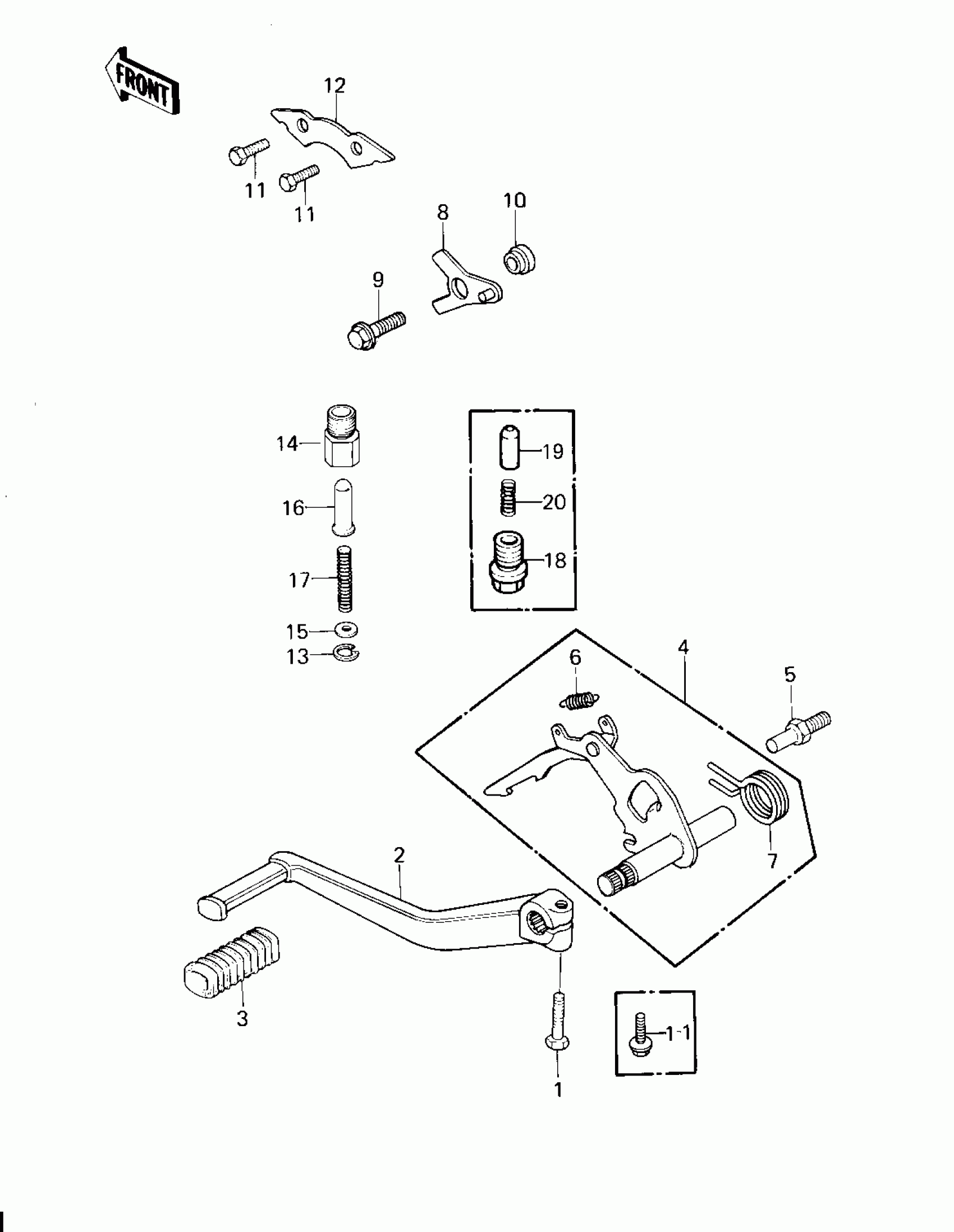

Kawasaki KZ1300-A3 GEAR CHANGE MECHANISM Diagram

#

Description
Price

1

BOLT-UPSET

112G0625

Unavailable

1-1

BOLT-FLANGED,6X25

130P0625

Unavailable

2

PEDAL,CHANGE

13156-1038

Unavailable

2

PEDAL,CHANGE

13156-1038

Unavailable

3

DAMPER RUBER,CHNG PDL

92075-1112

$4.25

3

DAMPER,CHANGE PEDAL

92075-1175

Unavailable

4

LEVER-COMP-CHANGE SHAFT

13161-1114

Unavailable

5

BOLT,RETURN SPRING

92001-1401

$4.17

5

BOLT,RETURN SPRING

92001-1401

$4.17

6

SPRING,CHANGE LEVER

92081-076

$4.14

7

SPRING,CHG PEDL RTRN

92083-028

Unavailable

8

LEVER,CHANGE

13168-1034

Unavailable

9

BOLT-FLANGED,8X25

130G0825

Unavailable

9

BOLT-FLANGED,8X25

130G0825

Unavailable

10

COLLAR,L=8.7

92027-1139

$8.46

11

BOLT-UPSET,6X16

112G0616

Unavailable

12

PLATE-POSITION

14014-1008

Unavailable

13

CIRCLIP, 12MM

481J1200

Unavailable

14

BOLT,POSITIONING

92001-1134

$13.39

15

WASHER,4X11.5X1.0

92022-1095

$3.20

16

PIN,POSITIONING

92043-1044

$5.53

17

SPRING,POSITIONING

92081-1094

$2.08

18

BOLT,FLANGED,16X16.5

92001-131

Unavailable

19

PIN

92043-076

$11.22

20

SPRING

92081-112

$5.37
