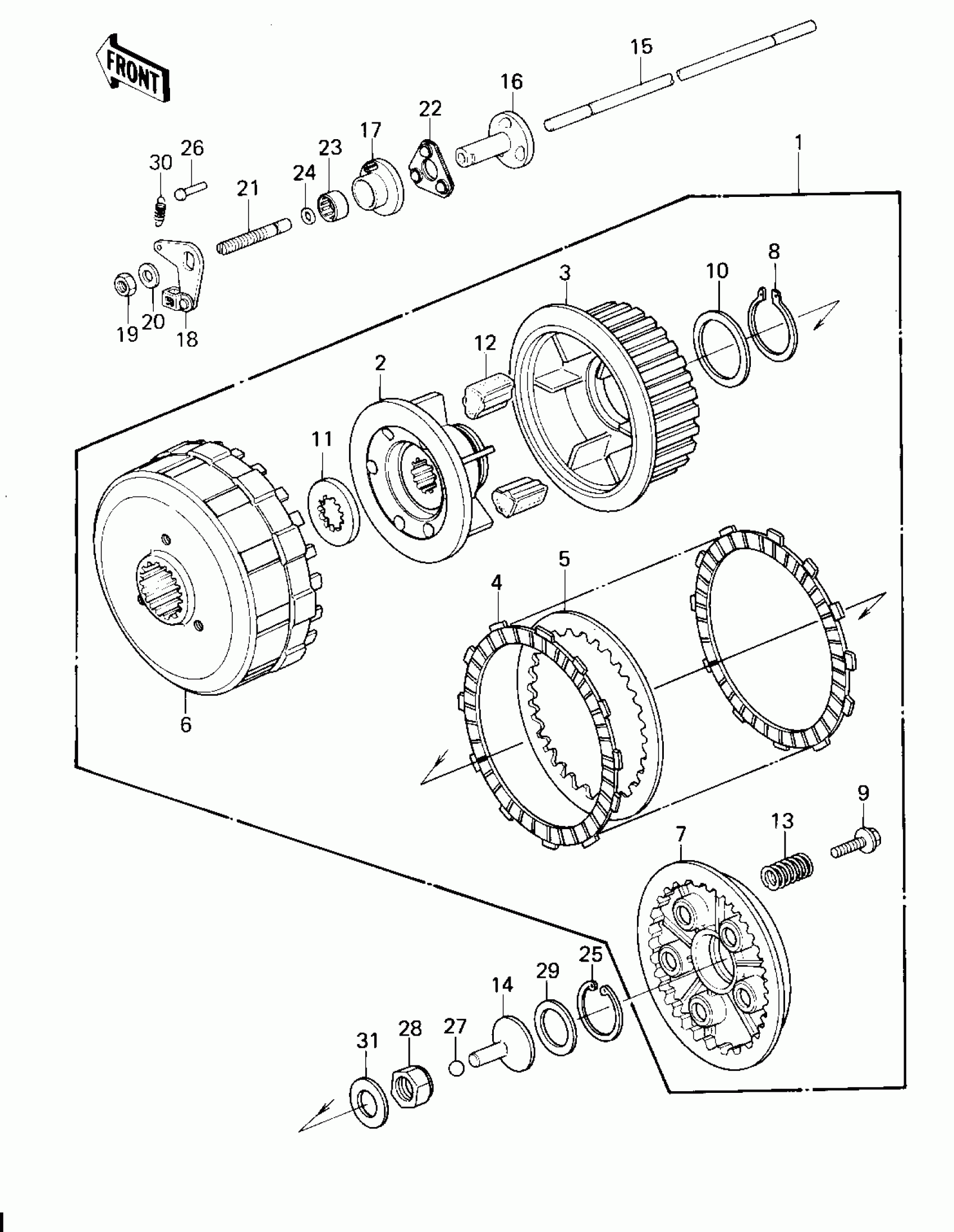

Kawasaki KZ1300-A3 CLUTCH Diagram

#

Description
Price

1

CLUTCH-ASSY

13081-1018

Unavailable

2

HUB,CLUTCH,INNER

13087-1006

Unavailable

3

HUB,CLUTCH,OUTER

13087-1007

Unavailable

4

PLATE,FRICTION

13088-1004

Unavailable

5

PLATE,CLUTCH,STEEL

13089-1003

Unavailable

6

HOUSING,CLUTCH

13096-1007

Unavailable

7

PLATE,CLUTCH SPRING

13187-1002

Unavailable

8

CIRCLIP,50MM

480J5000

$9.29

9

BOLT,FLANGED,6X18

92001-1066

$4.67

10

WASHER,50.3X60X1.0

92022-1081

$6.73

11

WASHER,SPLINED

92022-1082

$25.66

12

DAMPER,CLUTCH

92075-1088

$16.86

13

SPRING,CLUTCH

92081-1149

$12.05

14

PUSHER,CLUTCH SPRG P

13116-022

Unavailable

15

ROD,PUSH,CLUTCH,8X328

13116-1013

Unavailable

16

CAM,RELEASE,INNER

13119-1005

Unavailable

17

CAM,RELEASE,OUTER

13119-1006

Unavailable

18

LEVER,CLUTCH RELEASE

13236-1008

Unavailable

19

NUT-HEX-SMALL,8MM

318B0800

$0.54

20

WASHER PLAIN 8MM

411B0800

Unavailable

21

SCREW,SLOTTED,8M/M

92009-1038

$11.47

22

BALL ASSY,CLUTCH RELE

92045-1014

$11.24

23

BEARING,N,TLA1412

92046-1013

$48.32

24

O RING,5MM

670B1505

$2.49

25

CIRCLIP,45MM

481J4500

$1.49

26

RIVET,ROUND,4X20

530C0420

$3.64

27

BALL-STEEL,3/8"

600A1200

$1.14

28

NUT,20M/M,CLUTCH HUB

92015-1054

$10.42

29

WASHER,30X44.7X3.2

92022-1097

$7.68

30

SPRING GEAR CHNG LEV

92083-011

$3.66

31

WASHER

92125-002

Unavailable
