Description

Price

1

CAM-CHANGE DRUM

13145-1058

$22.72

2

DRUM ASSY,CHANGE

13239-1020

Unavailable

2

DRUM ASSY,GEAR CHANGE

13239-1050

Unavailable

2

BOLT-FLANGED,6X40

130G0640

$1.17

4

HOLDER,BEARING

13091-1032

Unavailable

5

HOLDER,DRUM PIN

13091-1033

Unavailable

6

ROLLER,4X8

610A0408

$4.31

7

PIN,DOWEL,4X15.8

92042-014

$0.43

8

BEARING-BALL,#6906

92045-1016

$33.09

9

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

10

ROLLER,4X6

610A0406

$4.31

11

FORK,SHIFT,LOW,2ND,3D

13140-1019

Unavailable

11

FORK-SHIFT,LOW,2ND & 3RD

13140-1050

Unavailable

12

FORK,SHIFT,4TH & TOP

13140-1020

Unavailable

12

FORK-SHIFT,4TH & TOP

13140-1051

Unavailable

13

ROD-SHIFT,12X173

49047-1008

$24.39

14

SWITCH,NEUTRAL

13151-5002

Unavailable

14-1

SWITCH,NEUTRAL

13151-5002

Unavailable

15

SWITCH-COMP,NEUTRAL

13151-1007

Unavailable

16

GASKET,10.5X16X1

92065-058

$3.96

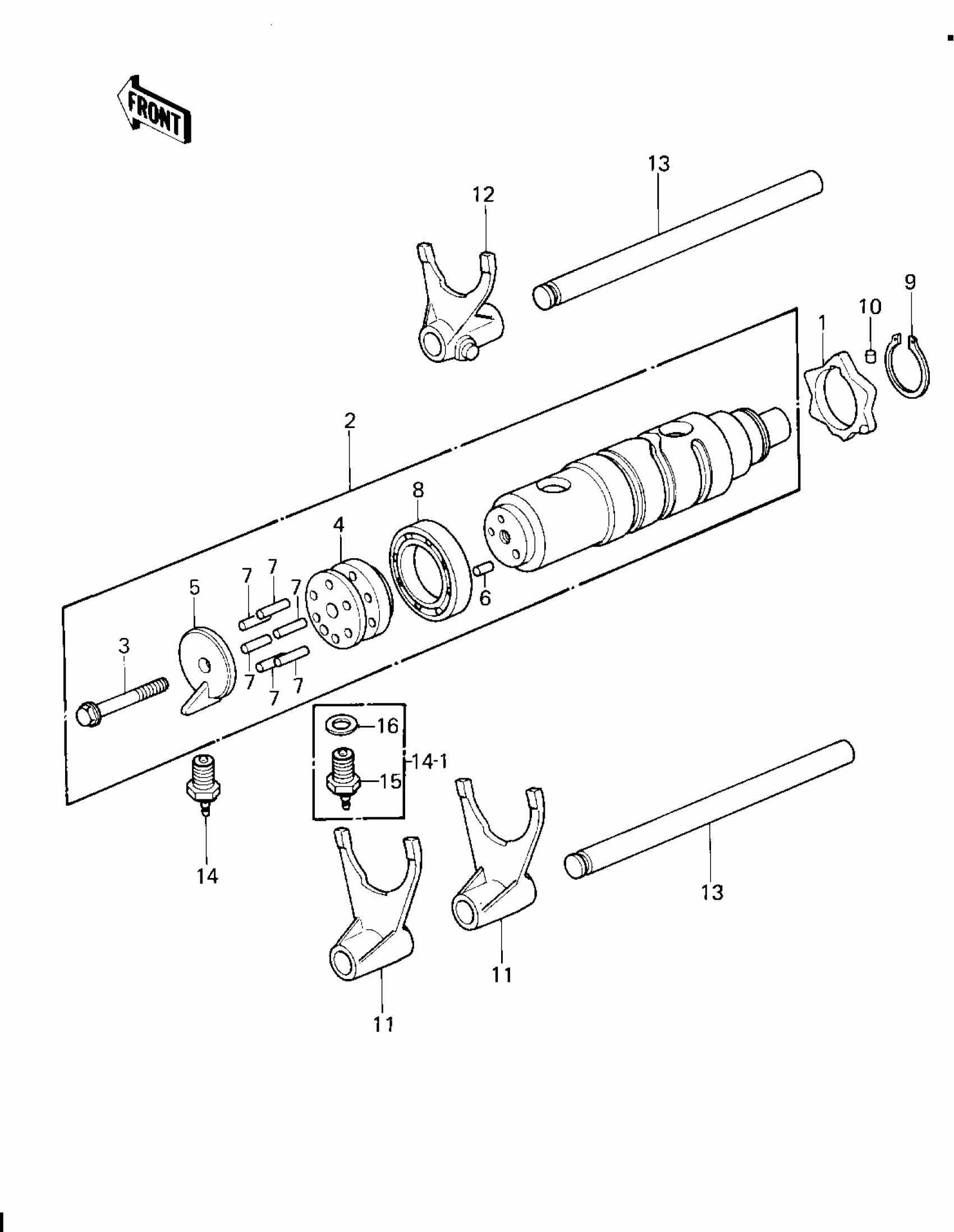

Kawasaki KZ1300-A3 GEAR CHANGE DRUM & FORKS Diagram

CAM-CHANGE DRUM

DRUM ASSY,CHANGE

DRUM ASSY,GEAR CHANGE

BOLT-FLANGED,6X40

HOLDER,BEARING

HOLDER,DRUM PIN

ROLLER,4X8

PIN,DOWEL,4X15.8

BEARING-BALL,#6906

CIRCLIP-TYPE-C,30MM

ROLLER,4X6

FORK,SHIFT,LOW,2ND,3D

FORK-SHIFT,LOW,2ND & 3RD

FORK,SHIFT,4TH & TOP

FORK-SHIFT,4TH & TOP

ROD-SHIFT,12X173

SWITCH,NEUTRAL

SWITCH,NEUTRAL

SWITCH-COMP,NEUTRAL

GASKET,10.5X16X1
