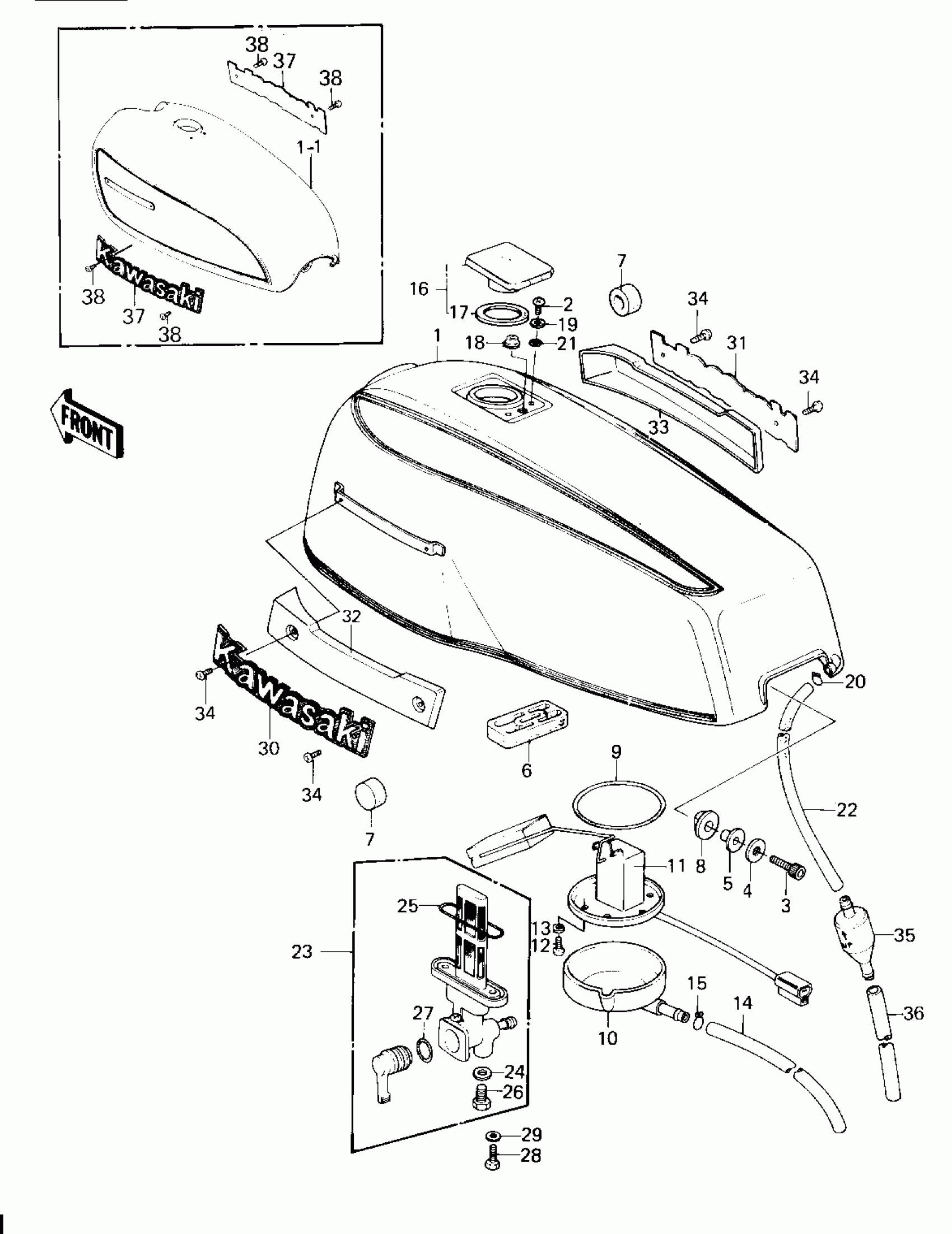

Kawasaki KZ1300-A3 FUEL TANK Diagram
#
Description
Price
1
TANK-FUEL,L.S.BLUE
51001-1017-C1
Unavailable
1-1
TANK-FUEL,EBONY
51001-1063-8G
$851.04
2
SCREW PAN HEAD 5X10
220B0510
$0.69
3
BOLT-SOCKET,8X30
120P0830
$2.62
4
WASHER,8.5X26X1.6
92022-092
$4.31
5
COLLAR,FUEL TANK FITT
92027-1134
$10.28
6
DAMPER,FUEL TANK,RR
92075-1114
$16.72
7
DAMPER,FUEL TANK,FR
92075-1115
$6.57
8
DAMPER,FUEL TANK
92075-1116
$7.58
9
"0" RING
92055-1067
$24.09
10
COVER,FUEL GAGE
14025-1091
Unavailable
11
GAGE,FUEL
52005-1006
$95.91
12
SCREW PAN HEAD 5X8
220B0508
$0.46
13
WASHER SPRING 5MM
461F0500
$0.69
14
TUBE-BREATHER (BULK)
702A071000
$13.38
15
CLAMP,TUBE
92037-147
$7.34
16
CAP ASSY,FUEL TANK
51048-1019
Unavailable
17
GASKET,FUEL TANK CAP
11009-1051
$10.97
18
SEAL,FUEL TANK CAP
92093-1030
$7.77
19
WASHER,5.3X10X0.8
92022-1038
$3.65
20
CLAMP,TUBE
92037-010
$3.92
21
RING-O
92055-1023
$3.92
22
TUBE,4.5X9X750M/M
92059-1092
$8.79
22
TUBE-RUBBER,7X10X280
702A07280
$13.38
23
TAP ASSY,FUEL
51023-1028
$155.24
23
TAP ASSY,FUEL
51023-1028
$155.24
24
GASKET,DRAIN BOLT
11009-1045
Unavailable
25
RING,TAP FLANGED
51039-010
$7.55
26
BOLT,DRAIN
92001-1089
Unavailable
27
RING-O
92055-1036
$5.21
28
BOLT,6X20
92001-1091
$3.92
29
WASHER-PLAIN
92022-183
$3.92
30
EMBLEM,FUEL TANK,L.H
56014-1025
Unavailable
31
EMBLEM,FUEL TANK,R.H
56014-1026
Unavailable
32
EMBLEM BASE,FUEL TANK
56014-1027
$45.33
33
EMBLEM BASE,FUEL TANK
56014-1028
$39.62
34
SCREW-PAN-CROS,3X8
220C0308
$0.58
35
BREATHER,FUEL TANK
14069-1004
$10.19
36
TUBE-RUBBER,7X10X400
702A07400
$13.38
37
EMBLEM,FUEL TANK
56014-1043
$85.47
38
SCREW-CSK-CROS
221C0306
$0.74
