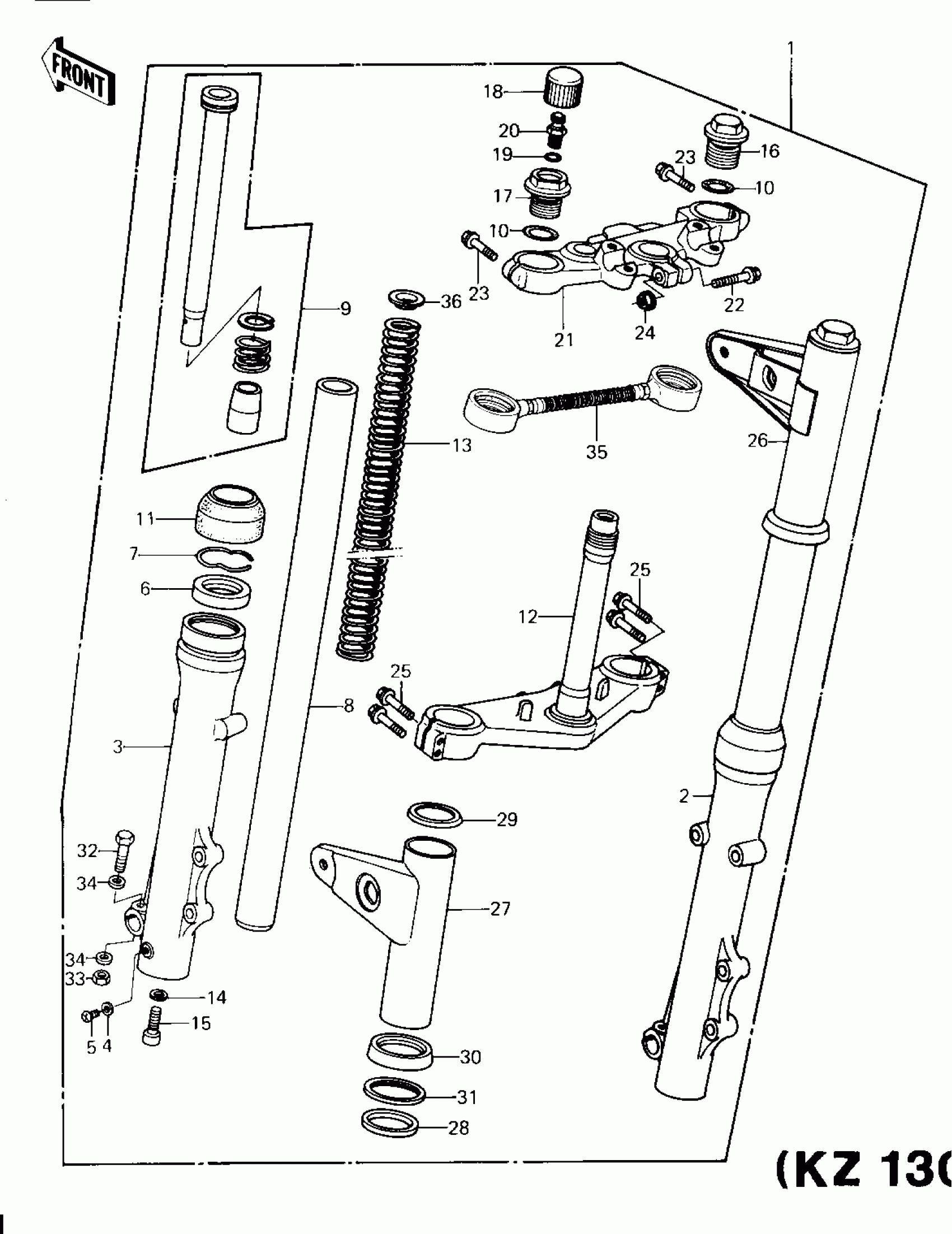

Kawasaki KZ1300-A3 FRONT FORK (KZ1300-A3) Diagram

#

Description
Price

1

FORK-FRONT

44001-1267

$1,122.35

2

TUBE,RH,FORK OUTER

44006-1043

$355.43

3

TUBE,LH,FORK OUTER

44005-1043

$541.53

4

GASKET,FORK DRAIN PLUG

44045-002

$5.18

5

SCREW PAN HEAD 4X8

220B0408

$0.67

6

OIL SEAL

92049-1043

$19.34

7

RING-SNAP

92033-1036

$6.51

8

TUBE FORK INNER

44013-1057

$411.89

9

CYLINDER-FORK

44022-1029

$118.05

10

RING-O,FORK TOP CAP

92055-1050

$6.27

11

DUST SHIELD,FORK

92093-1023

Unavailable

12

STEM,STEERING

44037-1016

$497.27

13

SPRING,FORK

44026-1028

$78.17

14

GASKET,FORK CYLINDER BOLT

11009-1127

$5.18

15

BOLT,FORK CYLINDER

92001-1309

$7.62

16

CAP FORK TOP RH

44029-1023

$46.86

17

CAP FORK TOP LH

44029-1024

$54.77

18

CAP,AIR VALVE

11012-1241

$18.24

19

"0" RING,AIR VALVE

92055-1094

$1.28

20

VALVE,AIR

16126-1052

$35.06

21

HEAD,STEERING STEM

44039-1013

$350.55

22

BOLT FLANGED 8X55

92001-1398

$4.04

23

BOLT,FLANGED,10X45

92001-1189

Unavailable

24

NUT,8M/M

44007-1002

Unavailable

25

BOLT,FLANGED,8X40

92001-1188

Unavailable

26

COVER FORK RH

44033-1064

$124.62

27

COVER FORK LH

44033-1063

$121.91

28

DAMPER,FORK COVER

92075-1155

Unavailable

29

GUIDE,FORK COVER,UPER

13169-1164

Unavailable

30

GUIDE,FORK COVER,LOWE

13169-1163

Unavailable

31

GUIDE,FORK COVER DMPE

13169-1154

Unavailable

32

BOLT,HEX HEAD,8X55

114G0855

Unavailable

33

NUT,LOCK,8MM

92015-1124

$5.42

34

WASHER PLAIN 8MM

410B0800

$0.93

35

HOSE ASSY FRONT FORK

51044-1005

$160.18

36

GUIDE-FORK SPRING

44028-1003

$11.28
