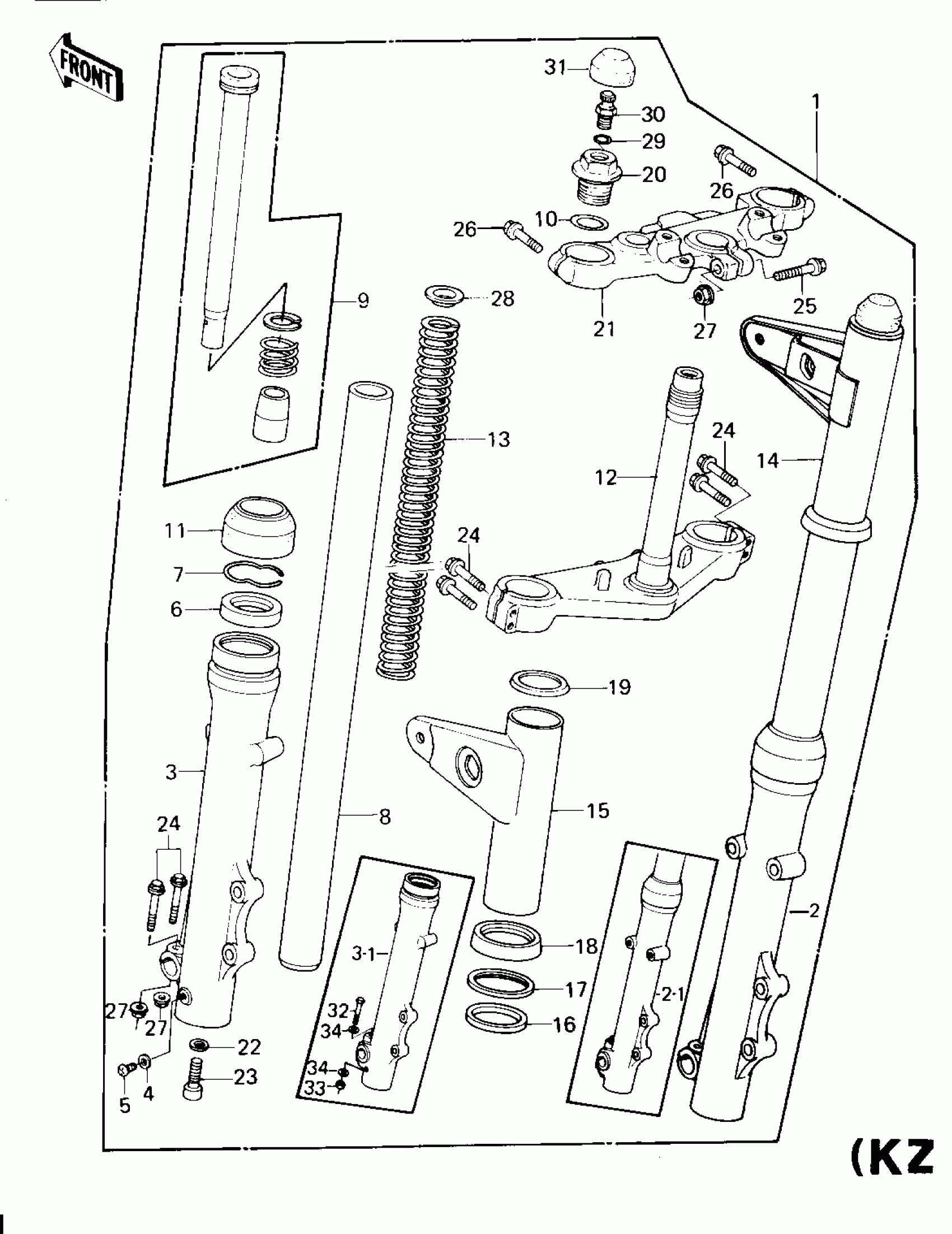

Kawasaki KZ1300-A3 FRONT FORK (KZ1300-A1/A2) Diagram
#
1
FORK-FRONT
44001-1227
$1,258.54
1
FORK-FRONT
44001-1227
$1,258.54
2
TUBE,RH,FORK OUTER
44006-1022
$269.28
2-1
TUBE,RH,FORK OUTER
44006-1043
$355.43
3
TUBE,LH,FORK OUTER
44005-1022
$292.39
3-1
TUBE,LH,FORK OUTER
44005-1043
$541.53
4
GASKET,FORK DRAIN PLUG
44045-002
$5.18
5
SCREW PAN HEAD 4X8
220B0408
$0.67
6
OIL SEAL
92049-1043
$19.34
7
RING-SNAP
92033-1036
$6.51
8
TUBE,FORK INNER
44013-1019
$433.74
9
CYLINDER-FORK
44022-1029
$118.05
10
RING-O,FORK TOP CAP
92055-1050
$6.27
11
DUST SHIELD,FORK
92093-1023
Unavailable
12
STEM,STEERING
44037-1016
$497.27
13
SPRING,FORK
44026-1028
$78.17
14
COVER,R.H,FORK
44033-1036
Unavailable
15
COVER,L.H,FORK
44033-1037
Unavailable
16
DAMPER,FORK COVER
92075-1155
Unavailable
17
GUIDE,FORK COVER DMPE
13169-1154
Unavailable
18
GUIDE,FORK COVER,LOWE
13169-1163
Unavailable
19
GUIDE,FORK COVER,UPER
13169-1164
Unavailable
20
CAP,FORK TOP
44029-1008
Unavailable
21
HEAD,STEERING STEM
44039-1013
$350.55
22
GASKET,FORK CYLINDER BOLT
11009-1127
$5.18
23
BOLT,FORK CYLINDER
92001-1186
$3.40
24
BOLT,FLANGED,8X40
92001-1188
Unavailable
24
BOLT,FLANGED,8X40
92001-1188
Unavailable
25
BOLT,HEX HEAD,8X53
92001-1060
Unavailable
26
BOLT,FLANGED,10X45
92001-1189
Unavailable
27
NUT,8M/M
44007-1002
Unavailable
27
NUT,8M/M
44007-1002
Unavailable
28
GUIDE-FORK SPRING
44028-1003
$11.28
29
"0" RING,AIR VALVE
92055-1018
Unavailable
30
VALVE ASSY,AIR
16126-1003
Unavailable
31
CAP,RUBBER,FORK TOP
44029-1009
Unavailable
32
BOLT,HEX HEAD,8X55
114G0855
Unavailable
33
NUT,LOCK,8MM
92015-1124
$5.42
34
WASHER PLAIN 8MM
410B0800
$0.93
