Description

Price

1

CALIPER ASSY,FRONT,LH

43041-1016

$436.35

2

SHAFT ASSY,CALIPER

13234-1002

Unavailable

3

DISC,FR,SILVER

41080-1123

$614.99

4

BLEEDER SET

43085-001

$24.57

5

PLUG

43088-002

Unavailable

6

NUT-HEX-FINE,10MM

315B1000

$0.58

7

PACKING,PISTON SEAL

43049-002

$13.90

8

PISTON,BRAKE,42M/M

43020-1012

Unavailable

9

DUST SEALD,RUBBER

43054-003

Unavailable

10

PAD SET

43082-1004

Unavailable

11

DUST SHILD,SHAFT

43052-005

Unavailable

12

SPACER

43040-004

$10.00

13

SCREW PAN HEAD 6X12

220B0612

Unavailable

14

WASHER SPRING 6MM

461F0600

$0.69

15

CALIPER ASSY,FRONT,RH

43041-1017

$436.35

16

BOLT,FLANGED,10X44

92001-1299

Unavailable

16

BOLT,FLANGED,10X44

92001-1299

Unavailable

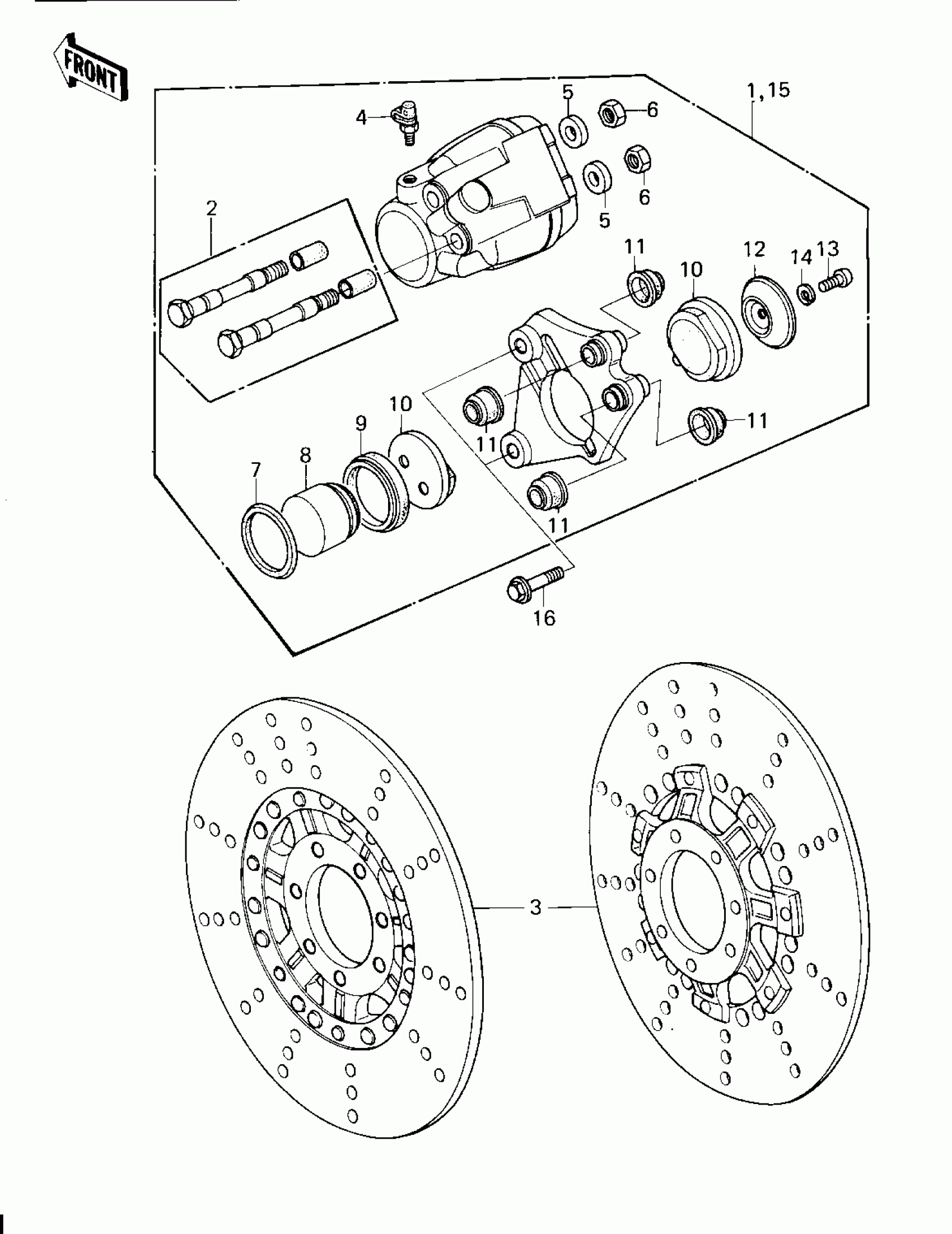

Kawasaki KZ1300-A3 FRONT BRAKE Diagram

CALIPER ASSY,FRONT,LH

SHAFT ASSY,CALIPER

DISC,FR,SILVER

BLEEDER SET

PLUG

NUT-HEX-FINE,10MM

PACKING,PISTON SEAL

PISTON,BRAKE,42M/M

DUST SEALD,RUBBER

PAD SET

DUST SHILD,SHAFT

SPACER

SCREW PAN HEAD 6X12

WASHER SPRING 6MM

CALIPER ASSY,FRONT,RH

BOLT,FLANGED,10X44

BOLT,FLANGED,10X44
