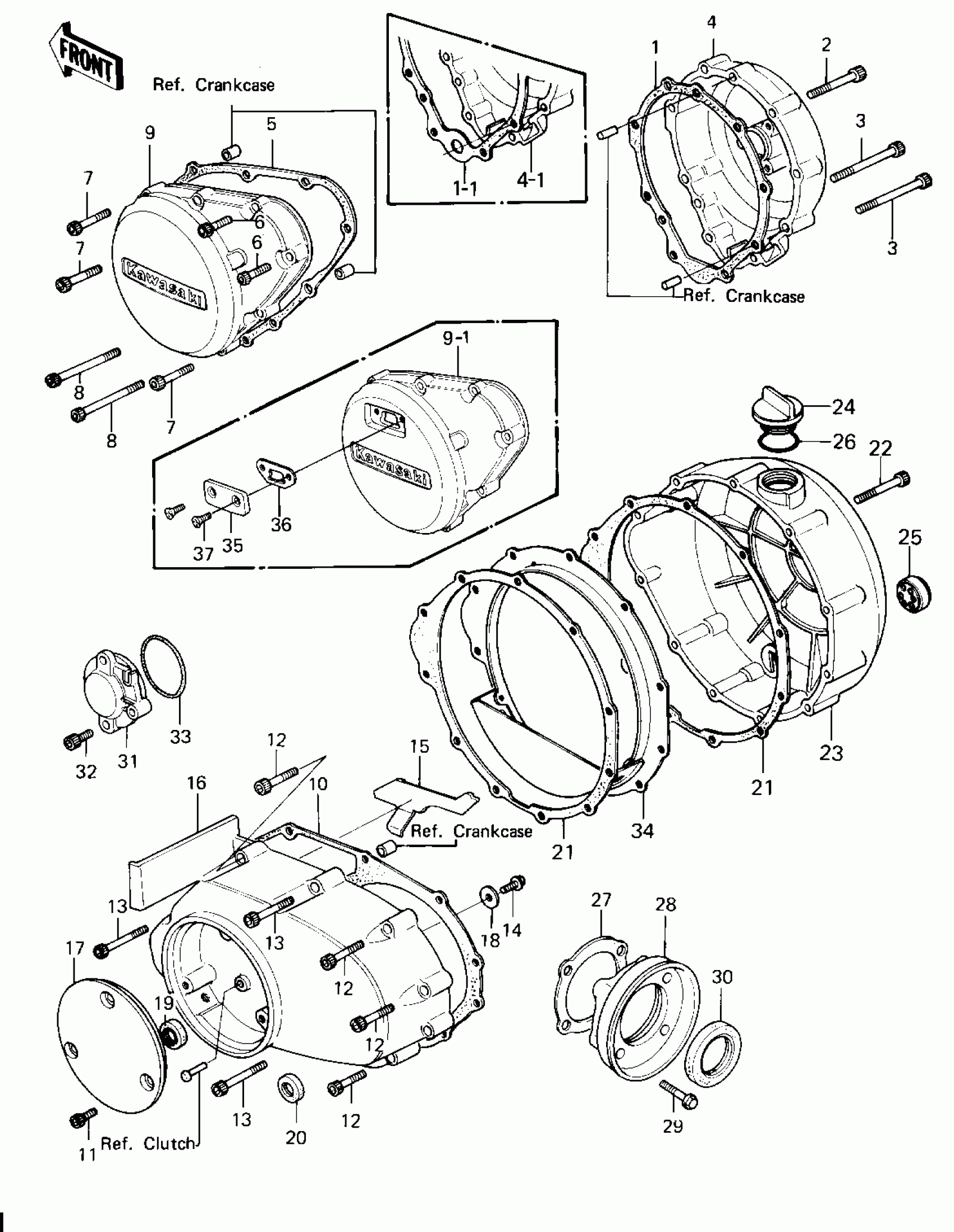

Kawasaki KZ1300-A3 ENGINE COVERS Diagram
#
1
GASKET,GENERATOR COV
11009-1189
Unavailable
1-1
GASKET,GENERATOR COV
11009-1189
Unavailable
2
BOLT-SOCKET,6X35
120P0635
$1.92
3
BOLT,SOCKET,6X50
120P0650
$4.24
4
COVER,GENERATOR
14031-1039
Unavailable
4
COVER,GENERATOR
14031-1039
Unavailable
4-1
COVER,GENERATOR
14041-1006
Unavailable
4-1
COVER,GENERATOR
14041-1006
Unavailable
5
GASKET,ENGINE COVER,LH
11009-1090
Unavailable
6
BOLT-SOCKET,6X25
120P0625
$1.92
7
BOLT-SOCKET,6X35
120P0635
$1.92
8
BOLT,SOCKET,6X50
120P0650
$4.24
9
COVER,L.H ENGINE
14025-1501
Unavailable
9
COVER,L.H ENGINE
14025-1501
Unavailable
9-1
COVER,ENGINE,LH
14025-1271
Unavailable
10
GASKET,MISSION COVER
11009-1091
Unavailable
11
BOLT-SOCKET,6X12
120P0612
$1.60
12
BOLT-SOCKET,6X35
120P0635
$1.92
13
BOLT-SOCKET,6X45
120P0645
$1.92
14
BOLT,FLANGED,6X14
130G0614
$1.17
15
PLATE,BAFFLE,BREATHER
13169-1131
Unavailable
16
COVER,MISSION
14025-1063
Unavailable
16
COVER,MISSION
14025-1313
Unavailable
17
COVER,RELEASE
14025-1314
Unavailable
17
COVER,RELEASE
14025-1314
Unavailable
17
COVER,RELEASE
14025-1314
Unavailable
18
WASHER
42046-008
$4.38
19
SEAL-OIL,TC14244.8
92049-1037
$9.89
20
SEAL-OIL,TB13225.5
92051-005
$7.74
21
GASKET,CLUTCH COVER
11009-1092
Unavailable
21
GASKET,CLUTCH COVER
11009-1092
Unavailable
22
BOLT-SOCKET,6X45
120P0645
$1.92
23
COVER,CLUTCH
14032-1012
Unavailable
23
COVER,CLUTCH
14032-1045
Unavailable
23
COVER,CLUTCH
14032-1053
Unavailable
24
CAP-OIL FILLER
16115-013
$19.96
25
GAUGE,OIL LEVEL
52015-004
$48.05
25
GAUGE,OIL LEVEL
52005-1017
Unavailable
26
RING-O,31.5X2.6
92055-049
$4.31
27
GASKET,BEARING CAP
11009-1159
$11.48
28
CAP-BEARING,OUTLET SHAFT
14022-1005
Unavailable
29
BOLT,FLANGED,6X28
92003-202
Unavailable
30
SEAL-OIL,TC35527
92049-1038
$17.95
31
CAP,TIMING SPROCKET
11012-1060
Unavailable
32
BOLT-SOCKET,6X14
120P0614
$3.82
32
BOLT-SOCKET,6X14
120P0614
$3.82
33
O RING,45MM
670B3045
$3.71
34
BAFFLE
18020-1020
$53.85
35
COVER,INSPECTION
14025-1272
Unavailable
36
GASKET,INSPCTN COVER
11009-1219
Unavailable
37
SCREW-CSK-RD-CROS
222E0510
$3.16
