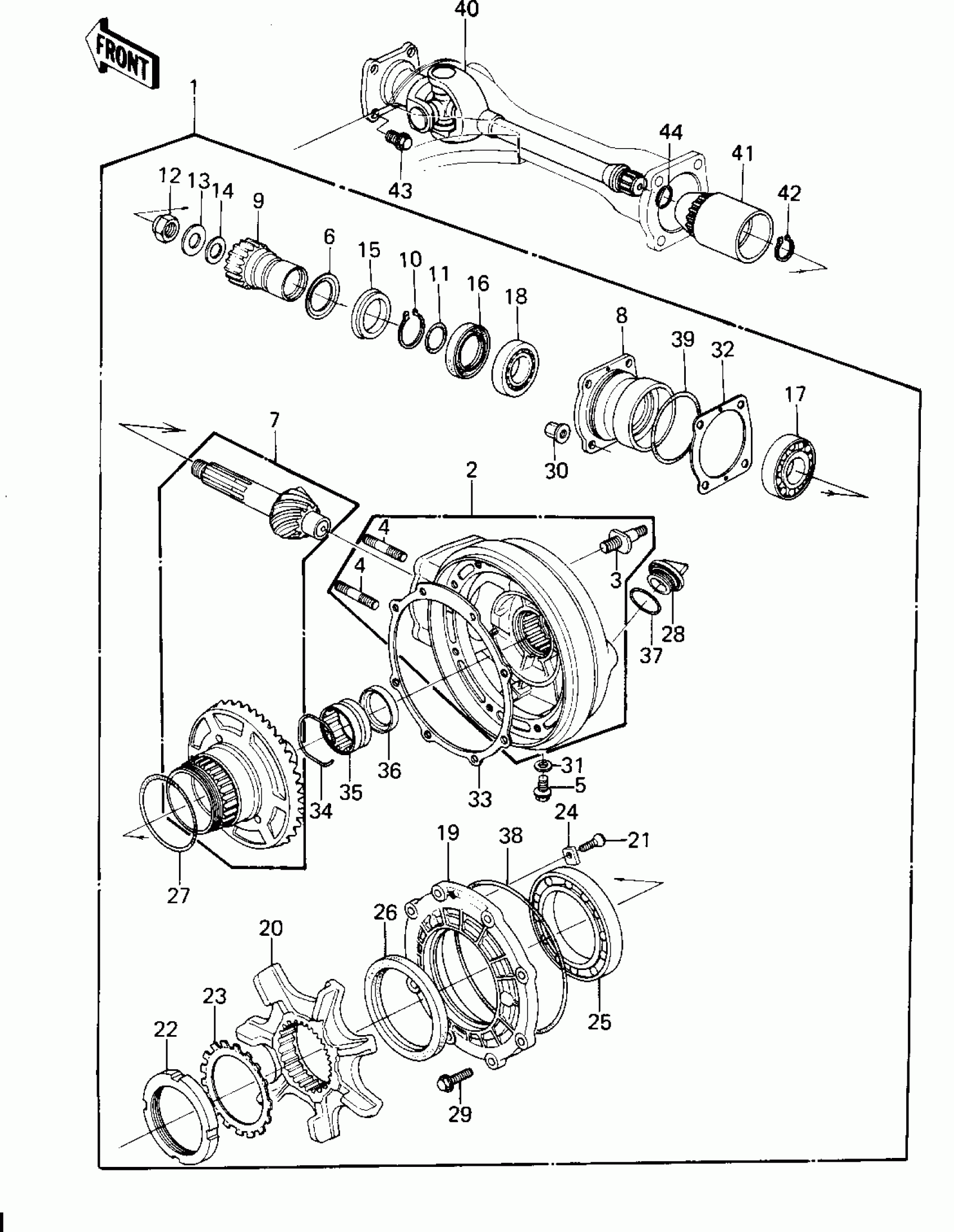

Kawasaki KZ1300-A3 DRIVE SHAFT/FINAL GEARS Diagram

#

Description
Price

1

GEAR ASSY,FINAL

13101-1007

Unavailable

2

CASE ASSY,FINAL GEAR

11021-1009

Unavailable

3

STUD

92004-1020

$29.95

4

STUD,10X31.5

92004-1021

$5.83

5

BOLT-FLANGED,8X12

130B0812

$0.77

6

PLATE,OIL SEAL GUIDE

13169-1129

Unavailable

7

GEAR SET,FINAL BEVEL

13101-5026

Unavailable

8

HOUSING,BEARING,FINAL

41046-1008

$155.02

9

COUPLING PINION SHAFT

42034-1008

$193.26

10

CIRCLIP-TYPE-C,36MM

480J3600

$4.71

11

O RING,25MM

671B2525

$5.00

12

NUT,16MM

92015-1059

Unavailable

13

WASHER,16X32X3.2

92022-1105

$11.49

14

SHIM

92025-1027

Unavailable

14

SHIM

92025-1028

Unavailable

14

SHIM

92025-1030

Unavailable

14

SHIM

92025-1031

Unavailable

14

SHIM

92025-1032

Unavailable

14

SHIM

92025-1033

Unavailable

14

SHIM

92025-1034

Unavailable

14

SHIM

92025-1034

Unavailable

14

SHIM

92025-1036

Unavailable

15

OIL SEAL,OS-50369HS

92049-1023

Unavailable

16

OIL SEAL,SC35558

92049-1024

Unavailable

17

BEARING-ROLLER,4T30305C

92116-1002

$39.77

18

BEARING-ROLLER,4T30205

92116-1003

$36.32

19

COVER,FINAL GEAR CASE

14025-1066

Unavailable

20

COUPLING,REAR HUB

42034-1007

$225.97

21

SCREW,COUNTERSNK,6X16

92009-1041

$3.35

22

NUT,75M/M,RING GEAR

92015-1060

$35.76

23

WASHER,75M/M,RING GER

92022-1106

$11.75

24

WASHER,BEARING STOPPR

92022-1112

$4.04

25

BEARING,BALL,16016

92045-1020

$116.92

26

SEAL-OIL,S-901159HS

92049-1026

$40.70

27

"0" RING,75MM

92055-1031

Unavailable

28

CAP

16115-1003

Unavailable

29

BOLT,FLANGED,8X28

92001-1095

$6.57

30

NUT,FLANGED,10MM

92015-1415

$4.69

31

WASHER,8.2X16X1

92022-1086

$3.92

32

SHIM,73X0.6

92025-1037

Unavailable

32

SHIM,73X0.9

92025-1038

Unavailable

32

SHIM,73X1.2

92025-1039

Unavailable

32

SHIM,73X0.1

92025-1040

Unavailable

32

SHIM,73X0.15

92025-1041

Unavailable

32

SHIM,73X0.2

92025-1042

Unavailable

32

SHIM,73X0.3

92025-1043

Unavailable

33

SHIM,168X0.6

92025-1045

Unavailable

33

SHIM,168X0.9

92025-1046

Unavailable

33

SHIM,168X1.2

92025-1047

Unavailable

33

SHIM,168X0.1

92025-1048

Unavailable

33

SHIM,168X0.15

92025-1049

Unavailable

33

SHIM,168X0.3

92025-1051

Unavailable

34

RING,SNAP

92033-1020

Unavailable

35

BEARING

92046-1020

Unavailable

36

SEAL-OIL,S-35477HS

92049-1025

$14.90

37

RING-O,31.5X2.6

92055-049

$4.31

38

"0" RING,159MM

92055-1030

Unavailable

39

RING-O,67MM

92055-1032

Unavailable

40

SHAFT ASSY,PROPELLER

39158-1001

$378.09

41

COUPLING,PROP SHAFT

42034-1009

$162.45

42

CIRCLIP-TYPE-C,20MM

480J2000

$2.71

43

BOLT,FLANGED,12X15

92001-1139

Unavailable

44

RING-O,20.5MM

92055-1029

Unavailable
