Description

Price

1

HOLDER SET,TACHOMETER

13091-5001

Unavailable

2

BOLT-SOCKET,6X14

120P0614

$3.82

3

HOLDER,TACHOMETER2.3T

13091-1008

$4.26

4

HOLDER,TACHOMETR,3.2T

13091-1009

$4.26

5

GEAR,TACHOMETER,10T

13223-011

Unavailable

6

SEAL-OIL

92050-075

$11.39

7

RING-O,10MM

92055-1149

$6.57

8

GASKET,TACHOMETER GEAR

92065-103

$4.07

9

GUIDE,TACHOMETER GEAR

92087-010

$24.19

10

GASKET,CYLINDER HEAD COVER

11009-1095

Unavailable

11

CAP,REED VALVE,LH

11012-1057

Unavailable

12

CAP,REED VALVE,RH

11012-1058

Unavailable

13

VALVE-ASSY-REED

12021-1004

Unavailable

14

GUIDE-CHAIN,CAM

12053-1026

Unavailable

15

COVER,CYLINDER HEAD

14025-1062

Unavailable

15

COVER,CYLINDER HEAD

14025-1312

Unavailable

17

SCREW-PAN-CROS,6X16

220B0616

$2.84

18

NUT 6MM

311B0600

$0.93

19

BOLT,FLANGED,6X20

92001-1100

$5.23

20

BOLT,FLANGED,6X52

92001-1192

$7.46

21

BOLT,FLANGED,6X45

92003-092

$7.58

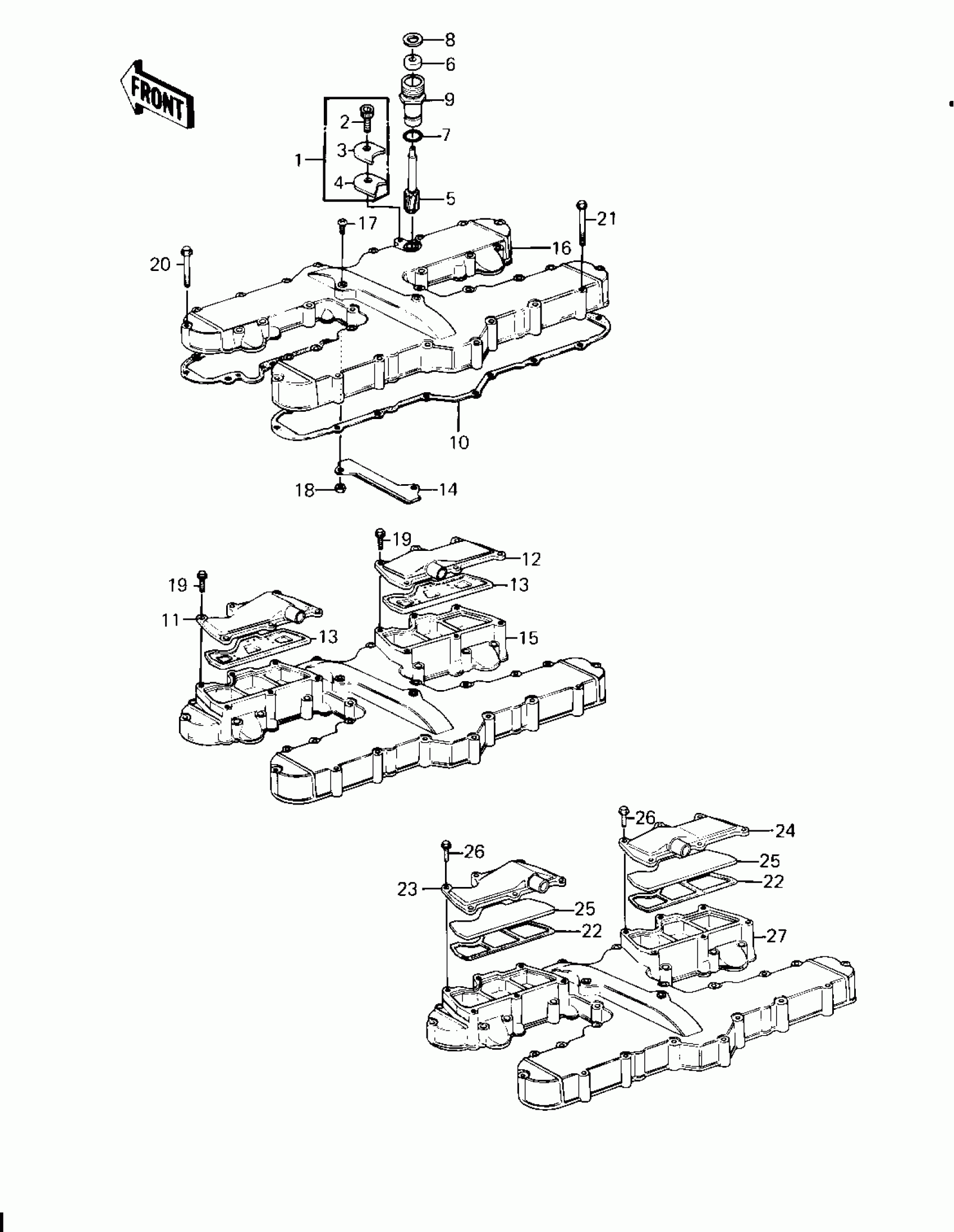

Kawasaki KZ1300-A3 CYLINDER HEAD COVER Diagram

HOLDER SET,TACHOMETER

BOLT-SOCKET,6X14

HOLDER,TACHOMETER2.3T

HOLDER,TACHOMETR,3.2T

GEAR,TACHOMETER,10T

SEAL-OIL

RING-O,10MM

GASKET,TACHOMETER GEAR

GUIDE,TACHOMETER GEAR

GASKET,CYLINDER HEAD COVER

CAP,REED VALVE,LH

CAP,REED VALVE,RH

VALVE-ASSY-REED

GUIDE-CHAIN,CAM

COVER,CYLINDER HEAD

COVER,CYLINDER HEAD

SCREW-PAN-CROS,6X16

NUT 6MM

BOLT,FLANGED,6X20

BOLT,FLANGED,6X52

BOLT,FLANGED,6X45
