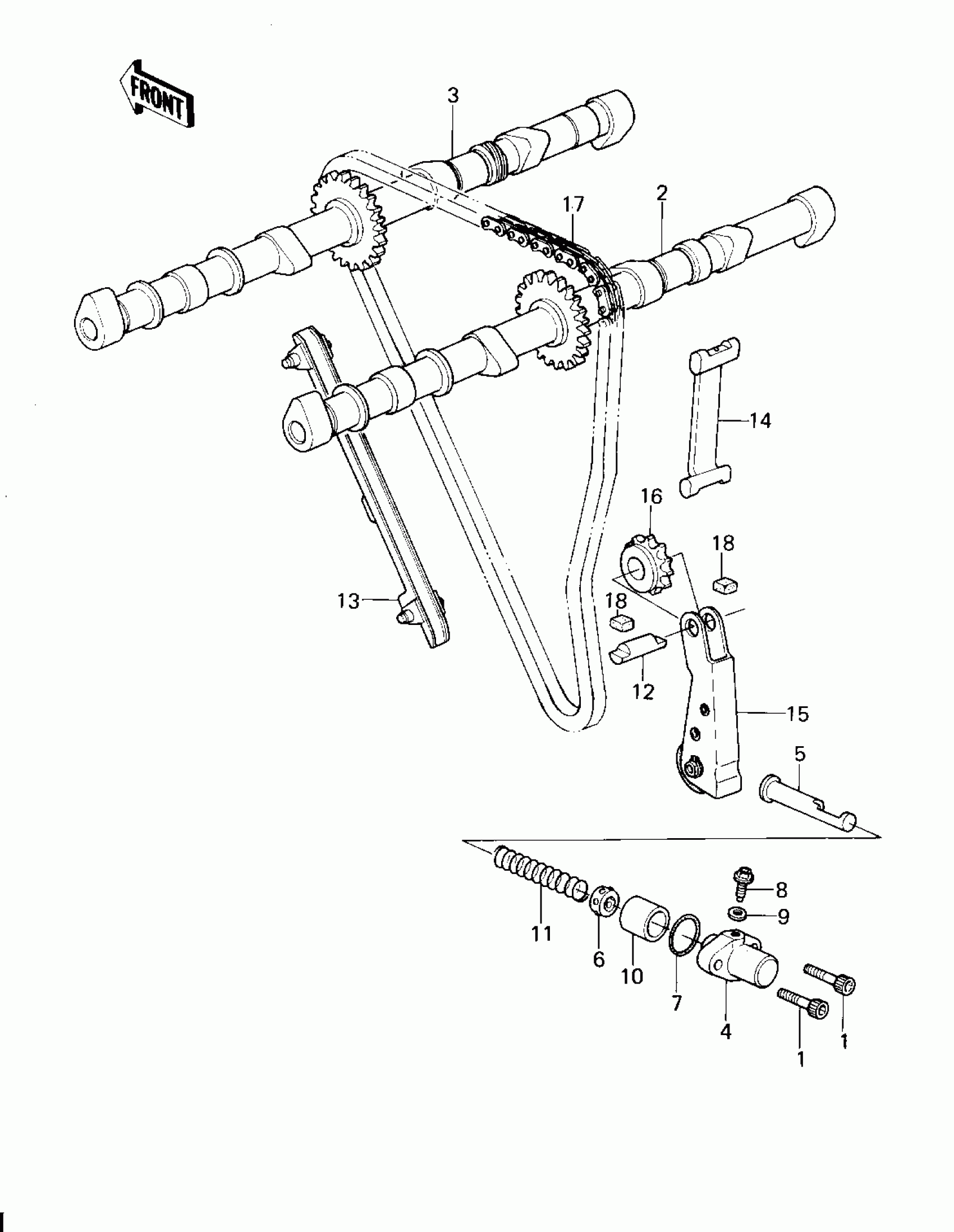

Kawasaki KZ1300-A3 CAMSHAFTS/CHAIN/TENSIONER Diagram

#

Description
Price

1

BOLT-SOCKET,6X25

120P0625

$1.92

2

CAMSHAFT,VALVE,INTAKE

12044-1012

Unavailable

3

CAMSHAFT,VALVE,EXHUST

12044-1013

Unavailable

4

TENSIONER,CAM CHAIN

12049-1055

$46.14

5

ROD,PUSH

13116-1015

Unavailable

6

RETAINER,TENSIONER

14020-1002

$17.55

7

O RING,22MM

670B2022

$4.69

8

BOLT,TENSIONER ADJUST

92001-1155

$5.33

9

WASHER OIL PUMP BANJO

92022-077

$3.99

10

COLLAR,TENSIONER

92027-1273

$32.58

10

COLLAR,TENSIONER

92027-1273

$32.58

11

SPRING,TENSIONER

92081-1105

$4.55

12

SHAFT-IDLER,GUIDE ROLLAR

12052-005

$32.94

13

GUIDE-CHAIN,CAM,FR

12053-1024

Unavailable

14

GUIDE-CHAIN,CAM,RR

12053-1025

Unavailable

15

GUIDE-CHAIN,TENSIONER

12053-1028

Unavailable

16

SPROCKET-ASSY,CAM CHAIN

21053-1004

Unavailable

17

CHAIN,CAMSHAFT,75-010X158L

92057-1018

Unavailable

18

DAMPER,IDLER SHAFT

92075-232

$5.72
