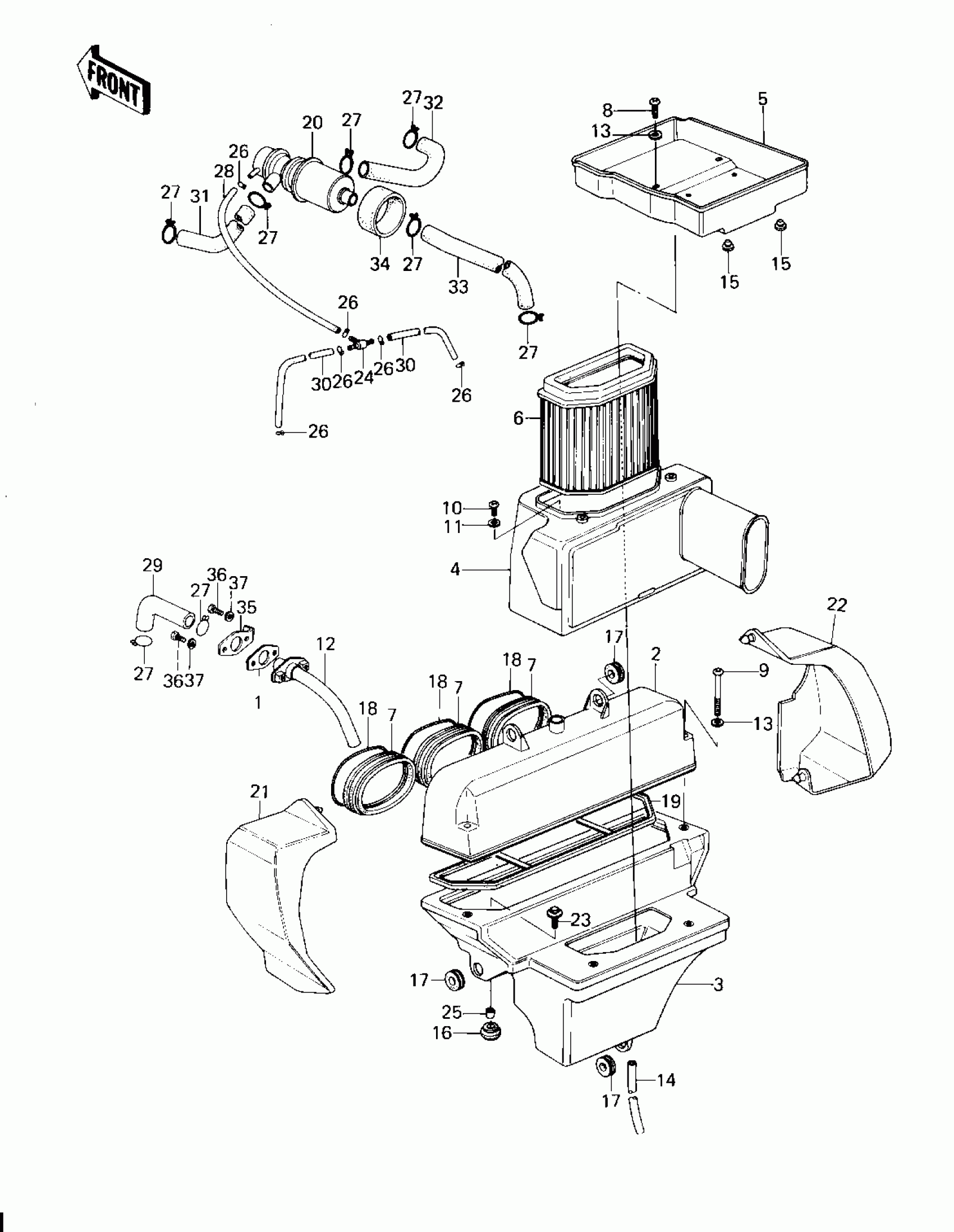

Kawasaki KZ1300-A3 AIR CLEANER Diagram

#

Description
Price

1

GASKET,BREATHER PIPE

11009-1097

Unavailable

2

CASE,AIR CLEANER,FRNT

11011-1021

Unavailable

3

CASE,AIR CLEANER LOWR

11011-1022

Unavailable

4

CASE,AIR CLEANER,REAR

11011-1023

Unavailable

5

CAP,AIR CLEANER

11012-1062

Unavailable

6

ELEMENT,AIR CLNR

11013-1014

Unavailable

7

DUCT,AIR CLEANER

14073-1015

$47.98

8

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

9

SCREW PAN HEAD 6X55

220B0655

$4.12

10

SCREW PAN HEAD 6X12

220B0612

Unavailable

11

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

12

PIPE,BREATHER

32032-1199

$26.75

13

WASHER PLAIN 6MM

411B0600

$2.84

14

TUBE,VINYL,6X200

700Q06200

Unavailable

14

TUBE-RUBBER,6X110

702A06110

$21.97

15

PLUG,7X2

92074-028

$4.26

16

DAMPER,AIR CLEANER

92075-1124

$4.36

17

DAMPER,CLEANER COVER

92075-1126

$8.94

18

SPRING,CLEANER DUCT

92081-1150

Unavailable

19

SEAL,CLEANER LWR CASE

92093-1025

Unavailable

20

VALVE ASSY,AIR SWITNG

16126-1015

Unavailable

21

COVER-SIDE-SUB,AIR CL

36002-5499

Unavailable

21

COVER-SIDE AR FLTR,LH

36001-1121

$131.11

22

COVER-SIDE-SUB,AIR CL

36002-5499

Unavailable

22

COVER SIDE AR FLTR RH

36001-1122

Unavailable

23

BOLT,6X25,W/WASHER

92001-1140

$5.01

24

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

25

COLLAR 6.8X10X10.5

92027-120

$5.00

26

CLAMP,TUBE

92037-072

$7.22

27

CLAMP,TUBE

92037-213

$4.31

28

TUBE,VACUUM,LONG

92059-1162

$19.09

29

TUBE,BREATHER PIPE

92059-1053

Unavailable

30

TUBE,4X9X100

92059-1058

$19.09

31

TUBE,SWITCH VALVE,L.H

92059-1076

Unavailable

32

TUBE,SWITCH VALVE,R.H

92059-1077

Unavailable

33

TUBE,SWITH VALVE,CLNR

92059-1078

Unavailable

34

DAMPER,AIR SWITCHNG,V

92075-1195

$3.83

35

BRACKET,FUEL VALVE

11034-1561

Unavailable

36

BOLT-UPSET,6X16

112G0616

$1.10

37

WASHER SPRING 6MM

461F0600

$0.69
