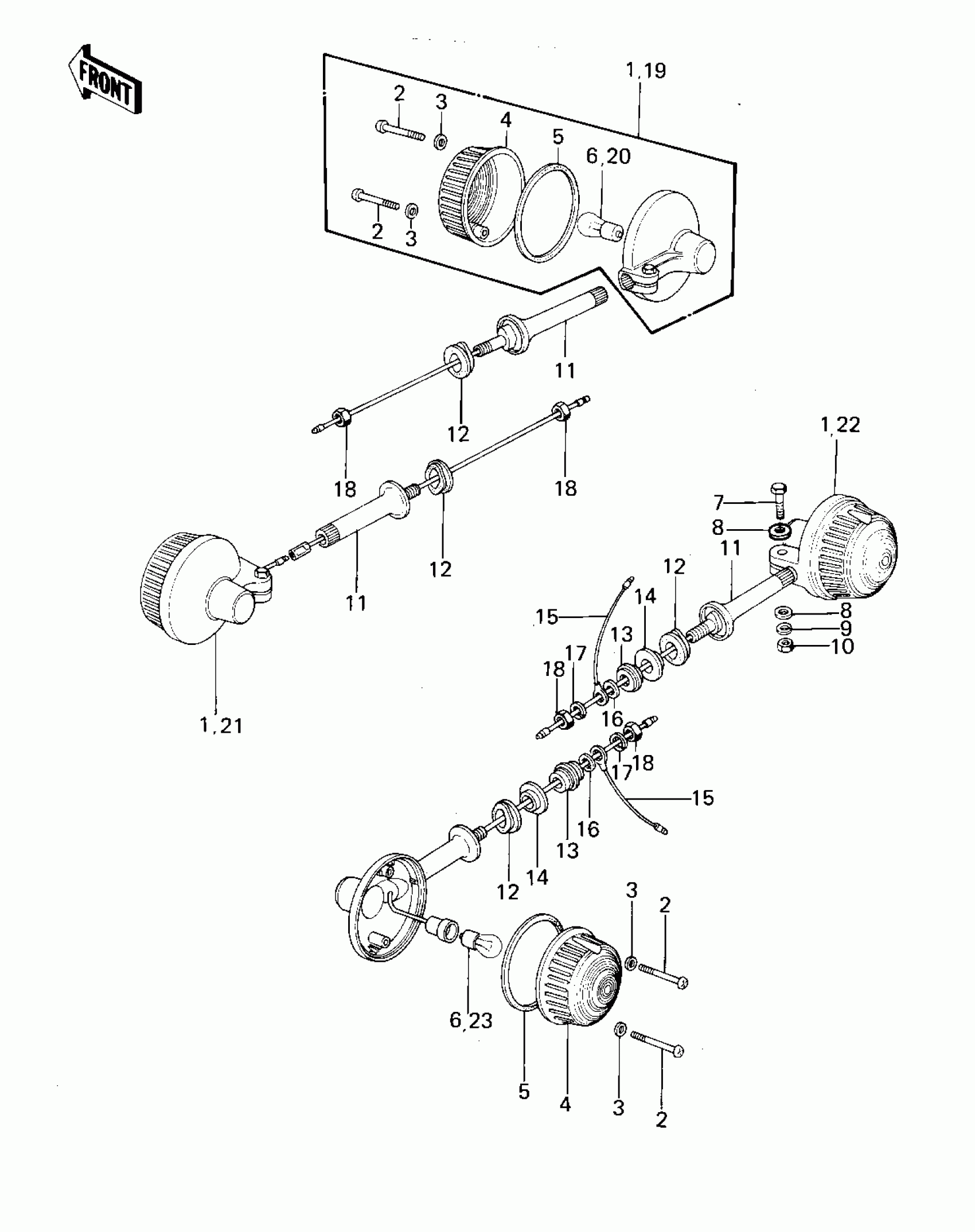

Kawasaki KZ1000 TURN SIGNALS ('77-'78 A1/A2/A2A) Diagram

#

Description
Price

1

LAMP ASSY,TURN SIGNAL

23040-034

$169.45

2

SCREW-PAN HEAD,4X35

220E0435A

$8.69

3

WASHER,PLAIN,4MM

23058-002

$1.77

4

LENS-SIGNAL LAMP,"6.1445"MARK

23048-1024

$8.34

5

GASKET,TURN SIGNAL LAMP

23050-002

$4.41

6

BULB,12V 32CP(23W)

92069-055

$3.95

7

BOLT-UPSET

112G0630

Unavailable

8

WASHER PLAIN 6MM

411B0600

Unavailable

9

WASHER SPRING 6MM

461F0600

Unavailable

10

NUT 6MM

311B0600

Unavailable

11

BRACKET-TURN SIG LAMP

23078-001

Unavailable

11

BRACKET,TURN SIG LAMP

23051-1006

Unavailable

12

DAMPER,LAMP

92075-128

$4.42

13

COLLAR

92027-147

$11.53

14

DAMPER RUBBER,SIG LM

92075-158

$4.15

15

LEAD WIRE,SIGNAL LAMP

26011-063

$6.56

16

WASHER,10.5X20X1

92022-239

$2.99

17

WASHER SPRING 10MM

461F1000

Unavailable

18

NUT-HEX-FINE,10MM

315B1000

Unavailable

19

LAMP-SIGNAL,RH

23040-1005

$91.82

20

BULB,12V 32/3CP(23/8W)

92069-060

$7.39

21

LAMP-SIGNAL,LH

23040-1006

$91.82

22

LAMP-TURN SIGNAL

23040-029

$156.39

23

BULB,12V 32CP(23W)

92069-055

$3.95
