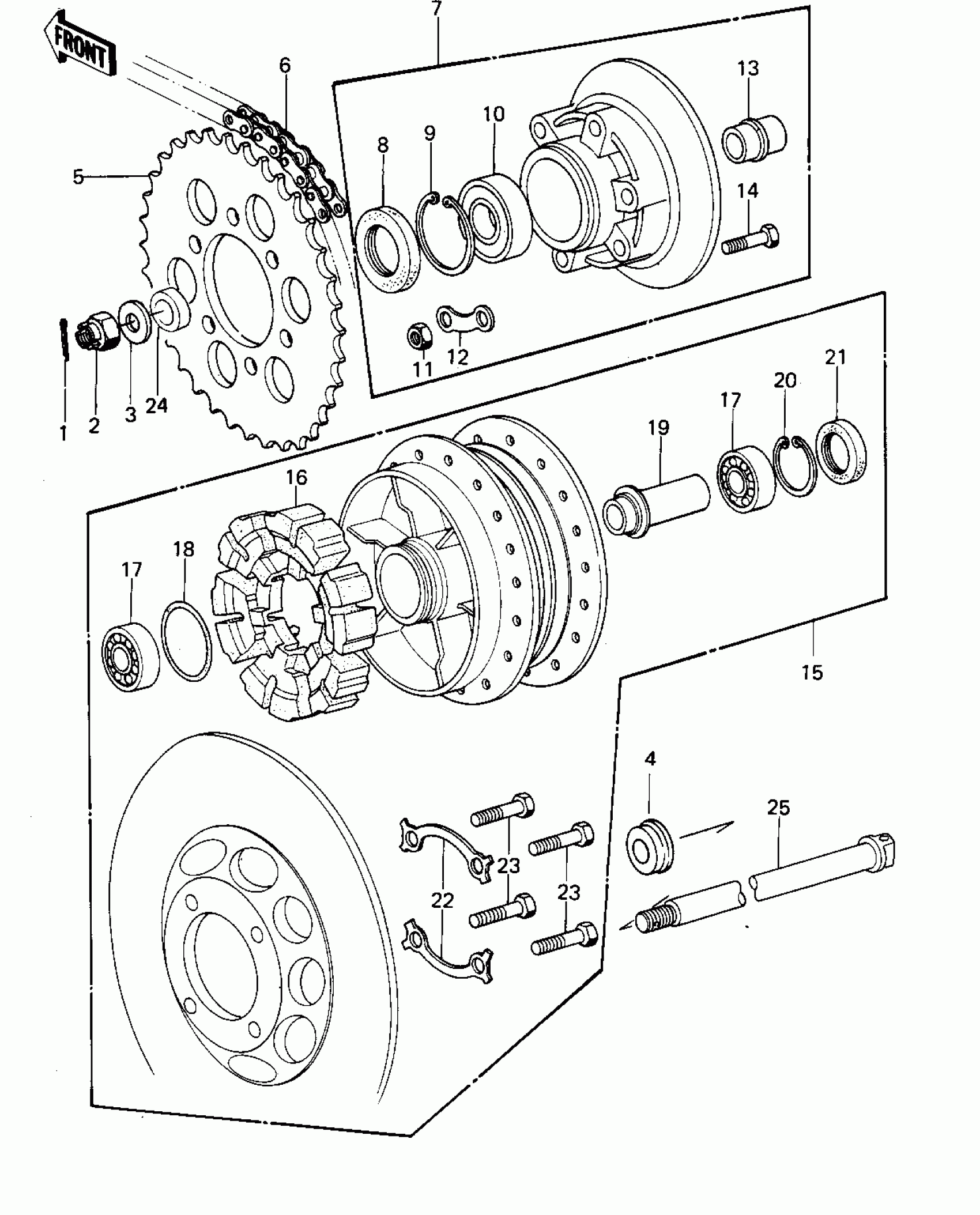

Kawasaki KZ1000 REAR HUB/CHAIN ('77-'78 A1/A2/A2A) Diagram

#

Description
Price

1

PIN-COTTER,4.0X35

550D4035

$1.81

2

NUT,CASTLE,18MM

42045-018

$7.31

3

WASHER,20.3X34X4.5

92022-248

Unavailable

4

COLLAR,REAR AXLE

42032-070

Unavailable

5

REAR SPROCKET,33T

42041-1010

Unavailable

6

DR CHAIN 630X92

92057-107

Unavailable

7

COUPLING ASSY,REAR H

42008-034

Unavailable

8

SEAL-OIL,AJN40627

92050-027

$19.42

9

RING-SNAP,62MM

92033-1044

$8.95

10

BALL BEARING,#6206

601B6206

$20.68

11

NUT,10MM

42045-005

$6.34

12

WASHER LOCK

92088-007

$12.61

13

SLEEVE

42036-024

$81.71

14

BOLT,10X45

92001-1208

$7.49

15

DRUM ASSY,REAR BRAKE

42005-053

$416.72

16

SHOCK DAMPER,REAR HU

42014-028

Unavailable

17

BEARING BALL #6304

601B6304

$37.55

18

O RING,60MM

671B2560

$5.45

19

COLLAR,BRG

42010-030

Unavailable

20

RING-SNAP,52MM

92033-1043

$6.41

21

SEAL-OIL,TWC35527

92052-006

Unavailable

22

WASHER,LOCK

92088-023

$11.33

23

BOLT

92001-158

Unavailable

24

COLLAR,REAR AXLE

42032-071

Unavailable

25

AXLE,REAR

42031-034

$144.85
