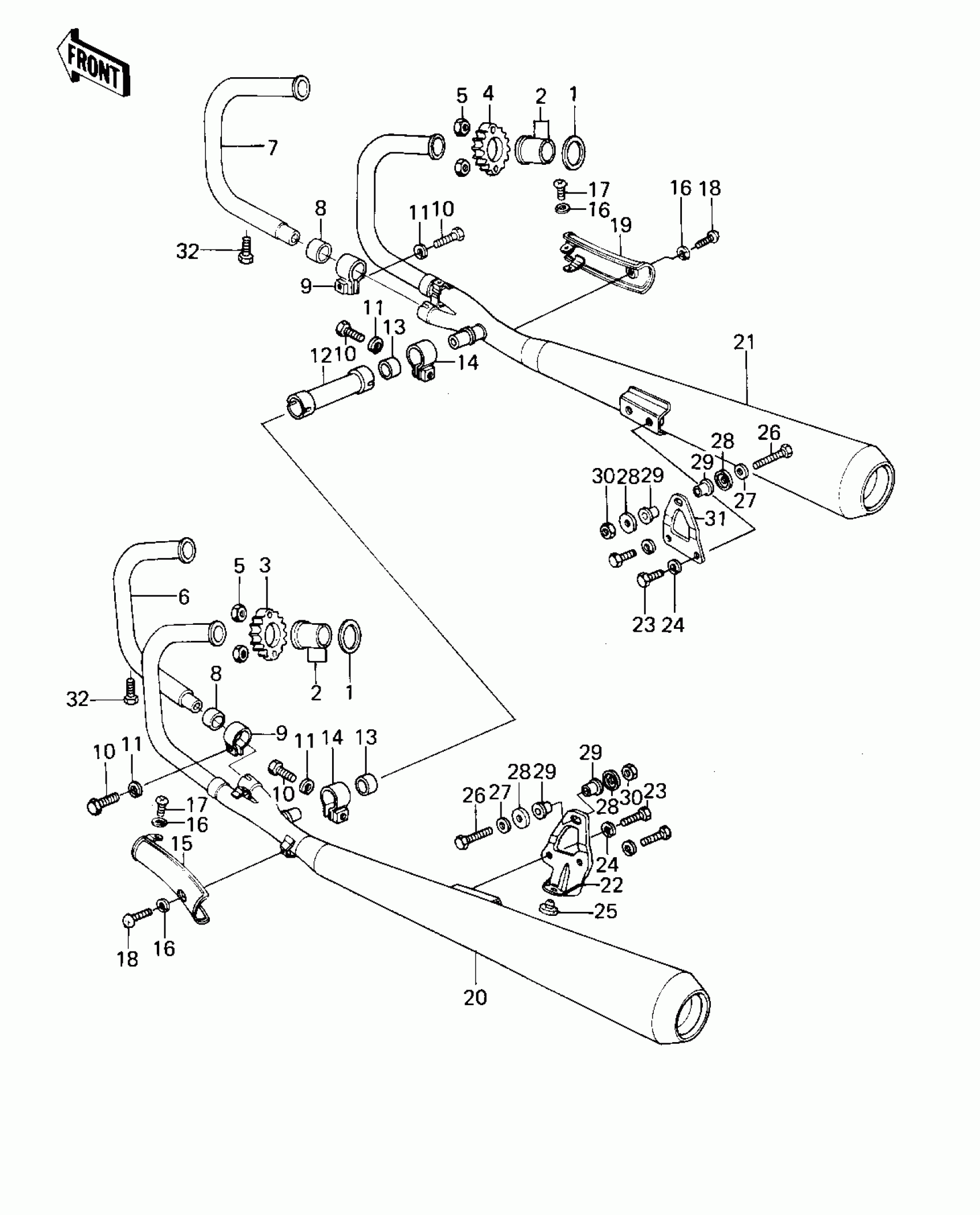

Kawasaki KZ1000 MUFFLERS ('77-'78 A1/A2/A2A) Diagram

#

Description
Price

1

GASKET,EXHAUST PIPE H

18067-018

$8.41

2

INSERT,EXHAUST PIPE

92027-170

$12.86

3

HOLDER,EXHAUST PIPE,

18069-064

$62.48

4

HOLDER,EXHAUST PIPE,

18069-063

Unavailable

5

NUT,LOCK,8MM

92017-013

$7.89

6

PIPE,EXHAUST,L.H INN

18049-119

Unavailable

6

PIPE,EXHAUST,L.H INN

18049-1018

$111.66

7

PIPE,EXHAUST,R.H INN

18049-120

Unavailable

7

PIPE,EXHAUST,R.H INN

18049-1019

$111.66

8

GASKET,MANIFOLD EXHA

11009-1002

Unavailable

9

CLAMP,MUFFLER

92037-208

$12.06

10

BOLT HEX HEAD 8X32

110G0832

Unavailable

11

WASHER SPRING 8MM

461F0800

Unavailable

12

PIPE,MUFFLER CONNECT

18039-025

Unavailable

13

GASKET,EXHAUST PIPE

11009-1001

Unavailable

14

LAMP,CONNECTING PIP

92037-185 C

Unavailable

15

COVER,MUFFLER,L.H

18057-051

Unavailable

16

WASHER SPRING 6MM

461F0600

Unavailable

17

SCREW PAN HEAD 6X40

220B0640

Unavailable

18

UNAVAILABLE IN PRICE BOOK

92011039

Unavailable

19

COVER,MUFFLER,R.H

18057-052

$19.86

20

MUFFLER,L.H.

18001-1007

Unavailable

20

MUFFLER,L.H.

18001-1007

Unavailable

20

MUFFLER ASSY,L.H

18001-1022

$390.28

21

MUFFLER ASSY,R.H.

18001-1008

$553.50

21

MUFFLER ASSY,R.H.

18001-1008

$553.50

21

MUFFLER ASSY,R.H

18001-1023

$379.74

22

BRACKET,MUFFLER,R.H

18024-038

$28.93

23

BOLT-SMALL-UPSET,8X1

110B0814

Unavailable

24

WASHER SPRING 8MM

461F0800

Unavailable

25

DAMPER

92075-015

$3.81

26

BOLT-HEX HEAD,10X60

92007-050

Unavailable

27

WASHER PLAIN 10MM

410B1000

Unavailable

28

WASHER,PLAIN

92022-328

$4.81

29

BUSHING,MUFFLER FITT

92092-010

$12.27

30

NUT,LOCK,10MM

92019-021

$4.59

31

BRACKET, MUFFLER

18024-035

$31.76

32

BOLT (6X10)

110N0610

Unavailable
