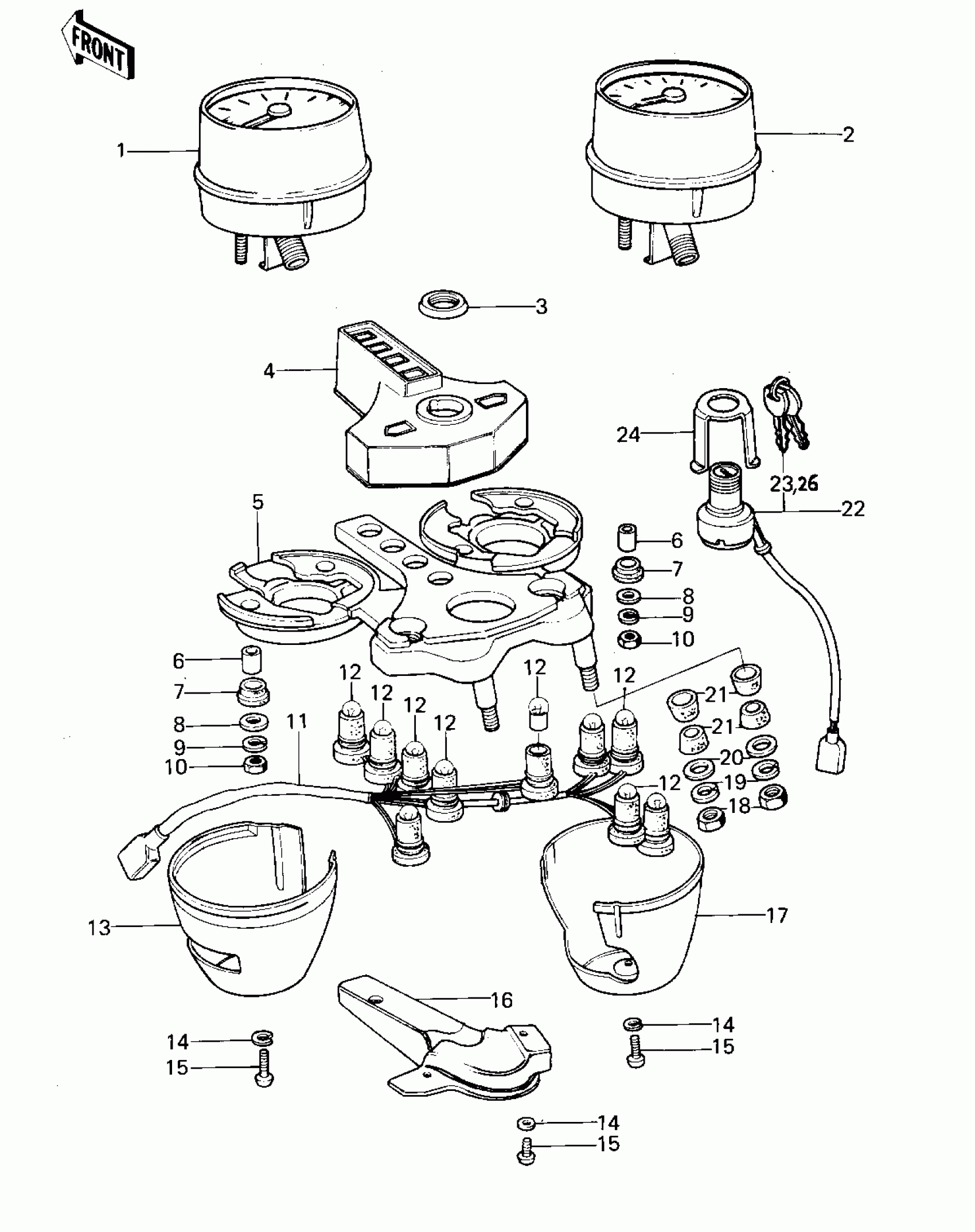

Kawasaki KZ1000 METERS/IGNITION SWITCH ('77-'78 A1/A2/A2 Diagram

#

Description
Price

1

SPEEDOMETER ASSY,MPH

25005-1031

Unavailable

1

SPEEDOMETER,KP4 (Canada)

25006-056

$552.88

2

TACHOMETER ASSY

25015-1010

Unavailable

2

TACHOMETER ASSY

25015-1010

Unavailable

3

NUT,IGNITION SW LOCK

27007-004

Unavailable

4

COVER,METER,INDICATE

25023-015

$224.97

5

BRACKET,METER

25008-045

Unavailable

6

COLLAR,METER

92027-211

Unavailable

7

RUBBER,METER

92075-172

$11.85

8

WASHER,PLAIN,5MM

92022-241

Unavailable

9

WASHER SPRING 5MM

461F0500

Unavailable

10

NUT-HEX,5MM

312B0500

Unavailable

11

SOCKET,SPEEDOMETER

25011-049

$192.91

12

BULB 12V 3W

92069-018

$3.71

13

UNAVAILABLE IN PRICE BOOK

25012010

Unavailable

14

WASHER SPRING 3MM

461F0300

Unavailable

15

SCREW-PAN-CROS,3X8

220B0308

$0.54

16

COVER,METER BRACKET

25024-006

Unavailable

17

COVER,TACHOMETER

25012-011

Unavailable

18

NUT,8MM

311B0800

Unavailable

19

WASHER SPRING 8MM

461F0800

Unavailable

20

WASHER PLAIN 8MM

411B0800

Unavailable

21

DAMPER RUBBER

92075-080

$7.89

22

SWITCH ASSY,IGNITION

27005-092

$206.63

23

KEY SET,#751

27008-069-51

$49.93

23

KEY SET,#752

27008-069-52

$43.72

23

KEY SET,#753

27008-069-53

Unavailable

23

KEY SET,#754

27008-069-54

$49.93

23

KEY SET,#755

27008-069-55

Unavailable

23

KEY SET,#756

27008-069-56

$43.64

23

KEY SET,#757

27008-069-57

Unavailable

23

KEY SET,#758

27008-069-58

$23.68

23

KEY SET,#759

27008-069-59

$49.90

23

KEY SET,#760

27008-069-60

$23.68

23

KEY SET #761

27008-069-61

Unavailable

23

KEY SET #762

27008-069-62

$37.36

23

KEY SET #763

27008-069-63

$23.68

23

KEY SET #764

27008-069-64

$20.05

23

KEY SET #765

27008-069-65

$37.69

23

KEY SET #766

27008-069-66

Unavailable

23

KEY SET #767

27008-069-67

$37.63

23

KEY SET #768

27008-069-68

$26.31

23

KEY SET #769

27008-069-69

$27.47

23

KEY SET #770

27008-069-70

Unavailable

23

KEY SET #771

27008-069-71

Unavailable

23

KEY SET #772

27008-069-72

Unavailable

23

KEY SET #773

27008-069-73

$43.68

23

KEY SET #774

27008-069-74

Unavailable

23

KEY SET #775

27008-069-75

$37.29

23

KEY SET #776

27008-069-76

$37.29

23

KEY SET #777

27008-069-77

$37.29

23

KEY SET #778

27008-069-78

$37.36

23

KEY SET #779

27008-069-79

$37.69

23

KEY SET #780

27008-069-80

$37.29

23

KEY SET #781

27008-069-81

$20.05

23

KEY SET #782

27008-069-82

$37.63

23

KEY SET #783

27008-069-83

$37.29

23

KEY SET #784

27008-069-84

$27.24

23

KEY SET #785

27008-069-85

$37.36

23

KEY SET,#786

27008-069-86

$43.61

23

KEY SET,#787

27008-069-87

$43.72

23

KEY SET,#788

27008-069-88

Unavailable

23

KEY SET,#789

27008-069-89

$43.61

23

KEY SET,#790

27008-069-90

$43.72

23

KEY SET,#791

27008-069-91

$43.61

23

KEY SET,#792

27008-069-92

$28.63

23

KEY SET,#793

27008-069-93

$43.61

23

KEY SET,#794

27008-069-94

$49.93

23

KEY SET,#795

27008-069-95

Unavailable

24

HOLDER IGNITION SW

27019-003

Unavailable

25

WASHER-PLAIN-SMALL,3MM

410B0300

Unavailable

26

KEY,BLANK

27008-1013

Unavailable
