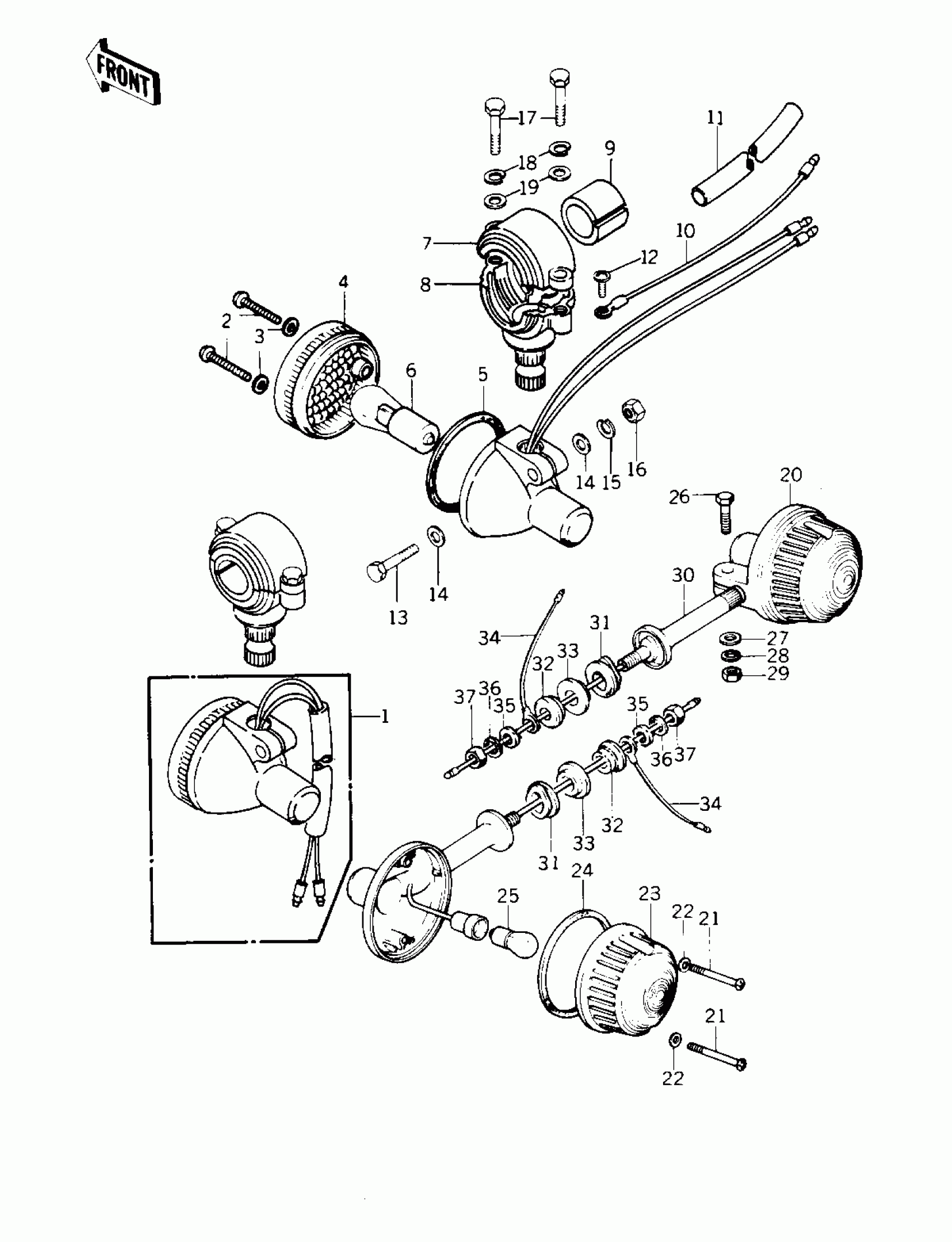

Kawasaki KZ1000 LTD TURN SIGNALS ('79-'80 B3/B4) Diagram

#

Description
Price

1

LAMP,FRNT,TURN SIGNAL

23040-1004

$139.11

2

SCREW-PAN HEAD,4X20

220E0420A

$2.76

3

WASHER,PLAIN,4MM

23058-002

$2.49

4

LENS-SIGNAL LAMP,"045-6588"

23048-1001

$10.57

5

GASKET,SIGNAL LAMP

23050-003

$5.80

6

BULB,12V 32/3CP(23/8W)

92069-060

$9.70

7

BRACKET-SIGNAL LAMP,FR

23051-1013

$22.30

8

BRACKET-SIGNAL LAMP,FR

23051-1004

Unavailable

9

DAMPER

23066-003

$7.71

10

WIRE-LEAD,SIGNAL LAMP

26011-061

Unavailable

11

COVER-WIRING HARNESS

26009-004

Unavailable

12

SCREW PAN HEAD 3X5

220B0305A

$0.59

13

BOLT-UPSET

112G0630

$1.36

14

WASHER PLAIN 6MM

411B0600

$2.84

15

WASHER SPRING 6MM

461F0600

$0.69

16

NUT 6MM

311B0600

$0.93

17

BOLT

110N0516

Unavailable

18

WASHER SPRING 5MM

461F0500

$0.69

19

WASHER-PLAIN-SMALL,5MM

410D0500

$1.59

20

LAMP-TURN SIGNAL

23040-029

$153.16

21

SCREW-PAN HEAD,4X35

220E0435A

$8.56

22

WASHER,PLAIN,4MM

23058-002

$2.49

23

LENS-SIGNAL LAMP,"6.1445"MARK

23048-1024

$10.96

24

GASKET,TURN SIGNAL LAMP

23050-002

$4.97

25

BULB,12V 32CP(23W)

92069-055

$5.18

26

BOLT-UPSET

112G0630

$1.36

27

WASHER PLAIN 6MM

411B0600

$2.84

28

WASHER SPRING 6MM

461F0600

$0.69

29

NUT 6MM

311B0600

$0.93

30

BRACKET,TURN SIG LAMP

23051-1006

Unavailable

31

DAMPER,LAMP

92075-128

$5.86

32

COLLAR

92027-147

$15.20

33

DAMPER RUBBER,SIG LM

92075-158

$5.47

34

LEAD WIRE,SIGNAL LAMP

26011-063

$8.60

35

WASHER,10.5X20X1

92022-239

$3.92

36

WASHER SPRING 10MM

461F1000

$0.67

37

NUT-HEX-FINE,10MM

315B1000

$0.58
