TURN SIGNALS ('77-'78 B1/B2)

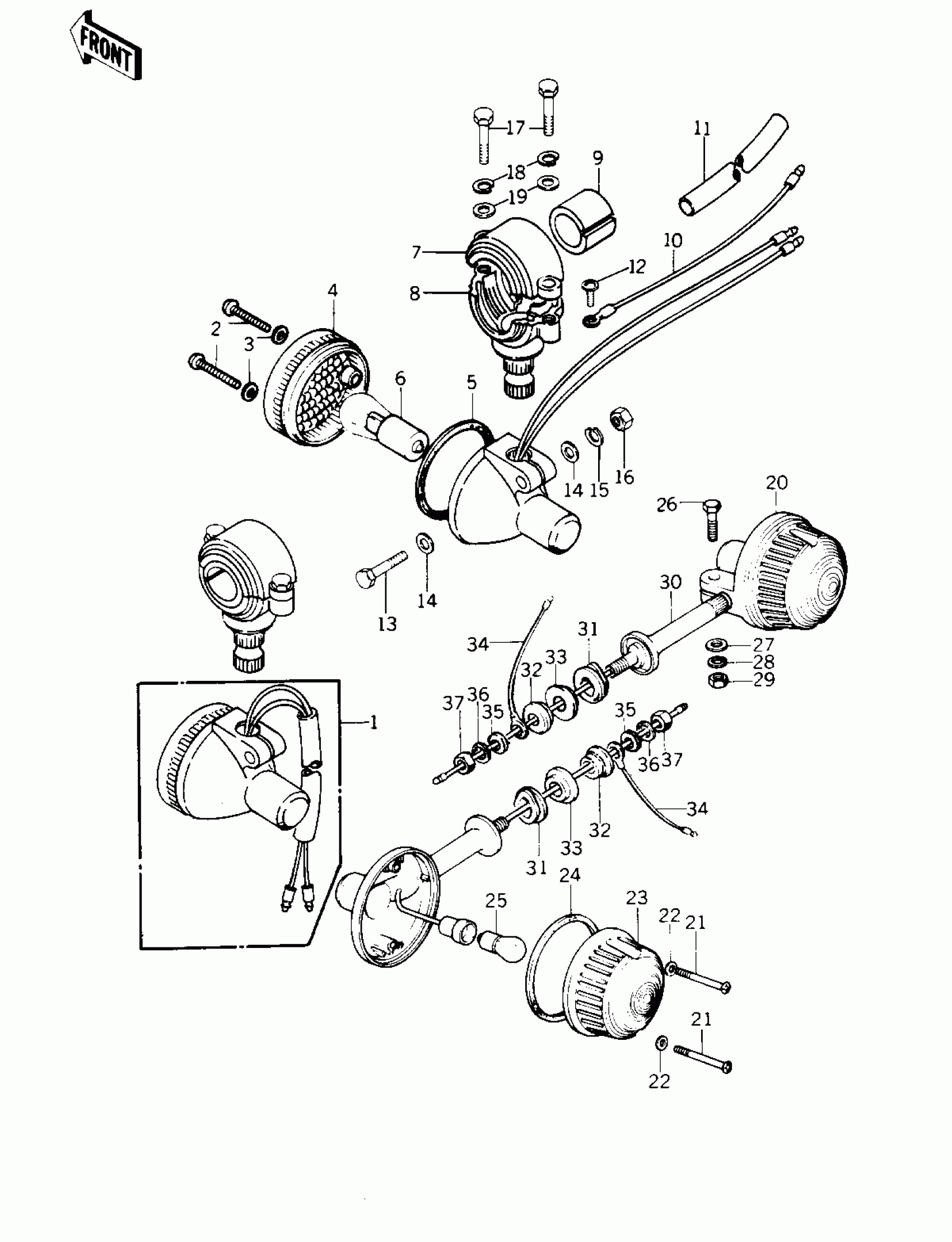

Kawasaki KZ1000 LTD TURN SIGNALS ('77-'78 B1/B2) Diagram
#
Description
Price
1
LAMP,FRNT,TURN SIGNAL
23040-1004
$139.11
2
SCREW-PAN HEAD,4X20
220E0420A
$2.76
3
WASHER,PLAIN,4MM
23058-002
$2.49
4
LENS-SIGNAL LAMP,"045-6588"
23048-1001
$10.57
5
GASKET,SIGNAL LAMP
23050-003
$5.80
6
BULB,12V 32/3CP(23/8W)
92069-060
$9.70
7
BRACKET-SIGNAL LAMP,FR
23051-1013
$22.30
7
BRACKET-SIGNAL LAMP,FR
23051-1013
$22.30
8
BRACKET-SIGNAL LAMP,FR
23051-1004
Unavailable
9
DAMPER
23066-003
$7.71
10
WIRE,LEAD,TURN SIGNAL
26011-066
Unavailable
10
WIRE-LEAD,SIGNAL LAMP
26011-061
Unavailable
11
COVER-WIRING HARNESS
26009-004
Unavailable
12
SCREW PAN HEAD 3X5
220B0305A
$0.59
13
BOLT-UPSET
112G0630
$1.36
14
WASHER PLAIN 6MM
411B0600
$2.84
15
WASHER SPRING 6MM
461F0600
$0.69
16
NUT 6MM
311B0600
$0.93
17
BOLT
110N0516
Unavailable
18
WASHER SPRING 5MM
461F0500
$0.69
19
WASHER-PLAIN-SMALL,5MM
410D0500
$1.59
20
LAMP ASSY,TURN SIGNAL
23040-034
$154.80
20
LAMP-TURN SIGNAL
23040-029
$153.16
21
SCREW-PAN HEAD,4X35
220E0435A
$8.56
22
WASHER,PLAIN,4MM
23058-002
$2.49
23
LENS-SIGNAL LAMP,"6.1445"MARK
23048-1024
$10.96
24
GASKET,TURN SIGNAL LAMP
23050-002
$4.97
25
BULB,12V 32CP(23W)
92069-055
$5.18
26
BOLT-UPSET
112G0630
$1.36
27
WASHER PLAIN 6MM
411B0600
$2.84
28
WASHER SPRING 6MM
461F0600
$0.69
29
NUT 6MM
311B0600
$0.93
30
BRACKET-TURN SIG LAMP
23078-001
Unavailable
30
BRACKET,TURN SIG LAMP
23051-1006
Unavailable
31
DAMPER,LAMP
92075-128
$5.86
32
COLLAR
92027-147
$15.20
33
DAMPER RUBBER,SIG LM
92075-158
$5.47
34
LEAD WIRE,SIGNAL LAMP
26011-063
$8.60
35
WASHER,10.5X20X1
92022-239
$3.92
36
WASHER SPRING 10MM
461F1000
$0.67
37
NUT-HEX-FINE,10MM
315B1000
$0.58
