TRANSMISSION/CHANGE DRUM ('77-'78 B1/B2)

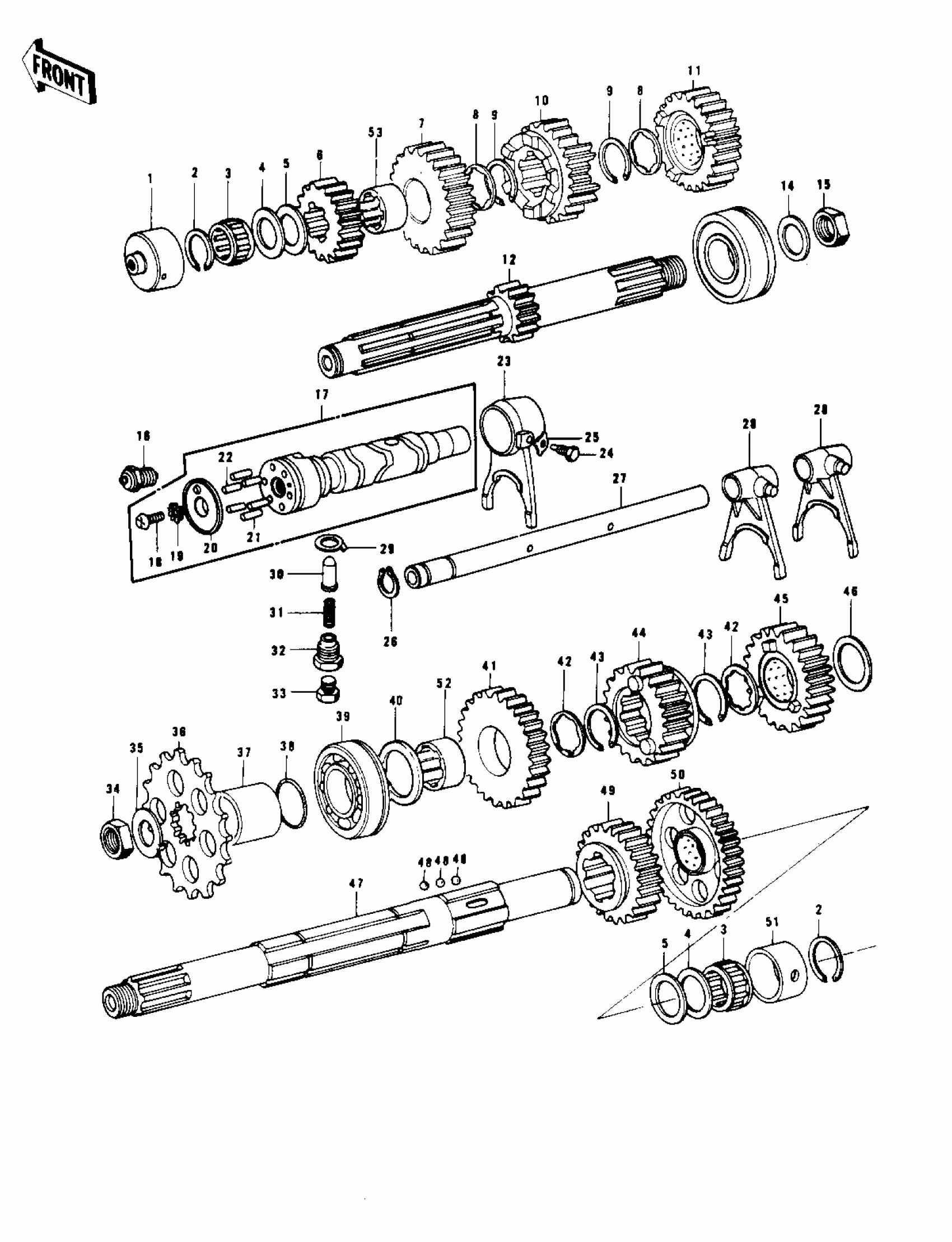

Kawasaki KZ1000 LTD TRANSMISSION/CHANGE DRUM ('77-'78 B1/B2) Diagram
#
1
BUSH,DRIVE SHAFT
92028-122
Unavailable
2
RING-SNAP,20X25.5X1.2
92033-025
$4.96
3
BEARING-NEEDLE,FWF-223014
92046-031
$19.72
4
WASHER,22.3X35X1.6
92022-212
$9.91
4
WASHER,22.3X35X1.2
92022-213
$10.35
5
SPACER,22X35.5X1.0
92026-1020
$5.23
6
2ND GER,DRIVE SHAFT
13130-032
Unavailable
7
TOP GEAR,DRIVE SHAFT
13136-042
Unavailable
8
WASHER,TOOTHED,26X35.5X1.5
92024-042
$11.07
9
CIRCLIP-TYPE-C,28MM
480J2800
$4.70
10
3RD GEAR,DRIVE SHAFT
13132-030
Unavailable
11
4TH GEAR,DRIVE SHAFT
13134-016
Unavailable
12
SHAFT,DRIVE 12T
13127-042
Unavailable
13
BEARING-BALL,5305NSH2
92045-1028
$132.72
14
WASHER
92125-002
Unavailable
15
NUT,20MM
92015-1555
$13.08
16
SWITCH-COMP
13151-5003
Unavailable
17
DRUM ASSY,GEAR CHANG
13239-1010
Unavailable
18
SCREW-PAN-CROS,6X14
220B0614
$1.48
19
WASHER LOCK 6MM
464G0600
$1.78
20
PLATE,GEAR CHNG DRUM
13142-013
Unavailable
21
PIN,DOWEL,4X15.8
92042-014
$0.43
22
PIN,DOWEL,4X17.8
92042-020
$5.05
23
FORK,SELECTOR,3RD
13140-046
Unavailable
24
PIN SELECT FORK GUIDE
92043-016
Unavailable
25
WASHER LOCK 10MM
92031-001
$11.45
26
CIRCLIP-TYPE-C,12MM
480J1200
$0.62
27
ROD,SHIFT
13209-011
Unavailable
28
FORK,SELECTOR,4TH&TOP
13140-045
$254.98
29
UNAVAILABLE IN PRICE BOOK
92024-041
Unavailable
30
PIN
92043-085
Unavailable
31
UNAVAILABLE IN PRICE BOOK
92081-061
Unavailable
32
BOLT,CHG DRUM POSITN
92001-112
Unavailable
33
BOLT
92001-119
Unavailable
34
NUT,20MM
92016-028
$9.91
35
WASHER,LOCK,20MM
92024-044
$13.52
36
ENGINE SPROCKET,15T
13144-1001
Unavailable
37
COLLAR,ENG SPROCKET
92027-288
$39.34
38
RING-O
92055-035
$5.00
39
BEARING,BL305 256217
92045-021
$184.13
40
WASHER,PLAIN,25MM
92022-210
Unavailable
41
2ND GEAR,OUTPUT SHAF
13131-038
Unavailable
42
WASHER,TOOTHED,30.3X40X1.5
92024-043
$13.07
43
CIRCLIP-TYPE-C,30MM
480J3000
$6.22
44
TOP GEAR,OUTPUT SHAF
13129-1214
Unavailable
45
3RD GEAR,OUTPUT SHAF
13133-031
Unavailable
46
WASHER,PLAIN,30MM
92022-209
Unavailable
47
SHAFT,OUTPUT
13128-5006
Unavailable
48
BALL-STEEL,3/16
600A0600
$1.07
49
4TH GEAR,OUTPUT SHAF
13135-020
Unavailable
50
LOW GER,OUTPUT SHAFT
13129-046
Unavailable
51
BUSHING,OUTPUT SHAFT
92028-123
$54.72
52
BUSHING,2ND GEAR
92028-1005
Unavailable
53
BUSHING,2ND GEAR
92028-1005
Unavailable
