TRANSMISSION ('79-'80 B3/B4)

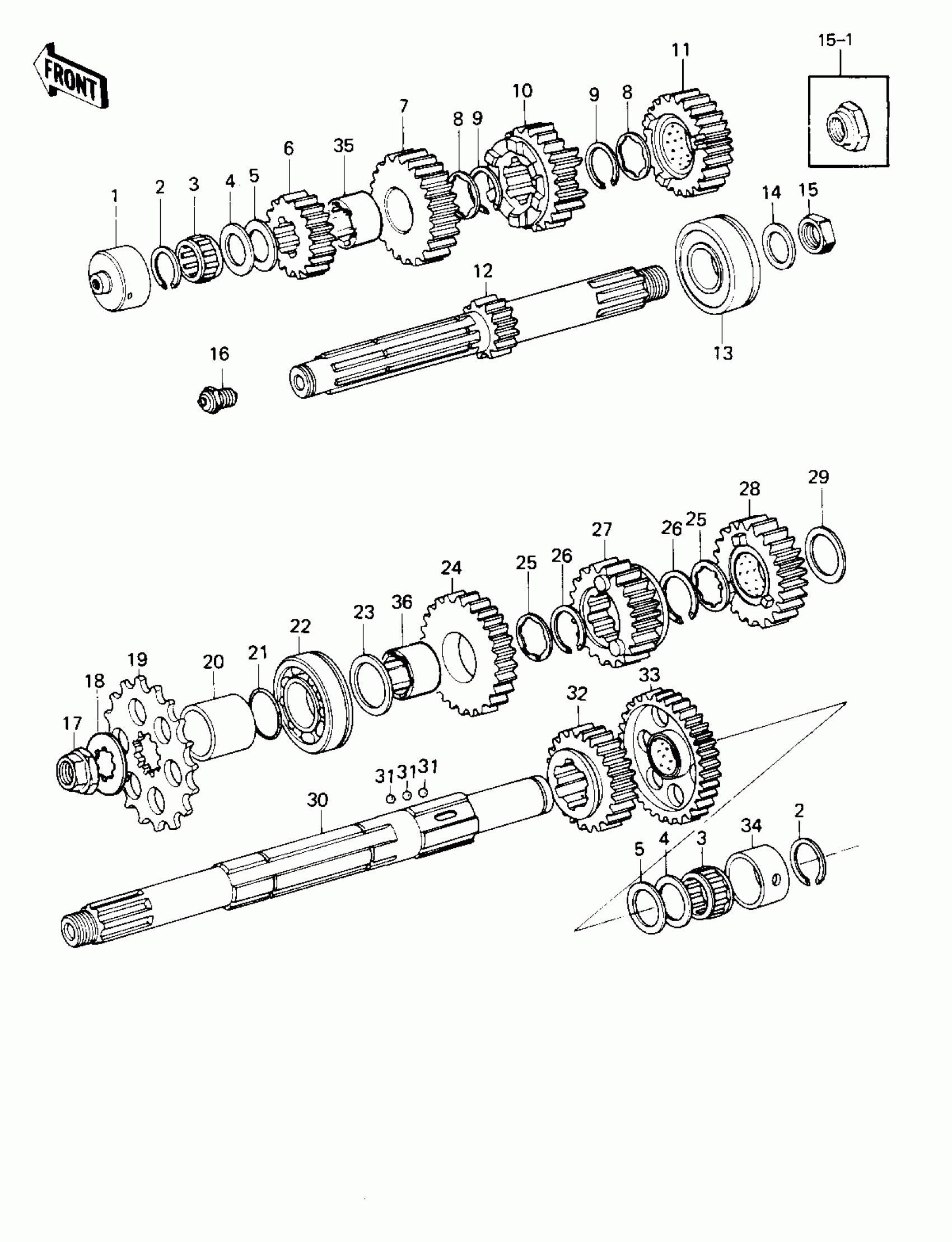

Kawasaki KZ1000 LTD TRANSMISSION ('79-'80 B3/B4) Diagram
#
1
BUSH,DRIVE SHAFT
92028-122
Unavailable
2
RING-SNAP,20X25.5X1.2
92033-025
$4.96
3
BEARING-NEEDLE,FWF-223014
92046-031
$19.72
4
WASHER,22.3X35X1.6
92022-212
$9.91
4
WASHER,22.3X35X1.2
92022-213
$10.35
5
SPACER,22X35.5X1.0
92026-1020
$5.23
6
2ND GER,DRIVE SHAFT
13130-032
Unavailable
7
TOP GEAR,DRIVE SHAFT
13136-042
Unavailable
8
WASHER,TOOTHED,26X35.5X1.5
92022-1077
$11.07
9
CIRCLIP-TYPE-C,28MM
480J2800
$4.70
10
3RD GEAR,DRIVE SHAFT
13132-030
Unavailable
11
4TH GEAR,DRIVE SHAFT
13134-016
Unavailable
12
SHAFT,DRIVE 12T
13127-042
Unavailable
13
BEARING-BALL,5305NSH2
92045-1028
$132.72
13
BEARING-BALL,5305NSH2
92045-1028
$132.72
14
WASHER
92125-002
Unavailable
15
NUT,20MM
92015-1555
$13.08
15-1
NUT,20MM
92015-1555
$13.08
16
SWITCH-COMP
13151-5003
Unavailable
17
NUT,20MM
92015-1254
$14.90
18
WASHER
92200-1065
$6.63
19
ENGINE SPROCKET,15T
13144-1001
Unavailable
20
COLLAR,ENG SPROCKET
92027-288
$39.34
21
RING-O
92055-035
$5.00
22
BEARING,BL305 256217
92045-021
$184.13
23
WASHER,PLAIN,25MM
92022-210
Unavailable
24
2ND GEAR,OUTPUT SHAF
13131-038
Unavailable
25
WASHER,LOCK(O.D=40)
92022-1078
$4.36
26
CIRCLIP-TYPE-C,30MM
480J3000
$6.22
27
TOP GEAR,OUTPUT SHAF
13129-1214
Unavailable
28
3RD GEAR,OUTPUT SHAF
13133-031
Unavailable
29
WASHER,PLAIN,30MM
92022-209
Unavailable
30
SHAFT,OUT PUT
13128-1013
Unavailable
31
BALL-STEEL,3/16
600A0600
$1.07
32
4TH GEAR,OUTPUT SHAF
13135-020
Unavailable
33
LOW GER,OUTPUT SHAFT
13129-046
Unavailable
34
BUSHING,OUTPUT SHAFT
92028-123
$54.72
35
BUSHING,TOP GEAR
92028-1124
$45.48
36
BUSHING,2ND GEAR
92028-1005
Unavailable
