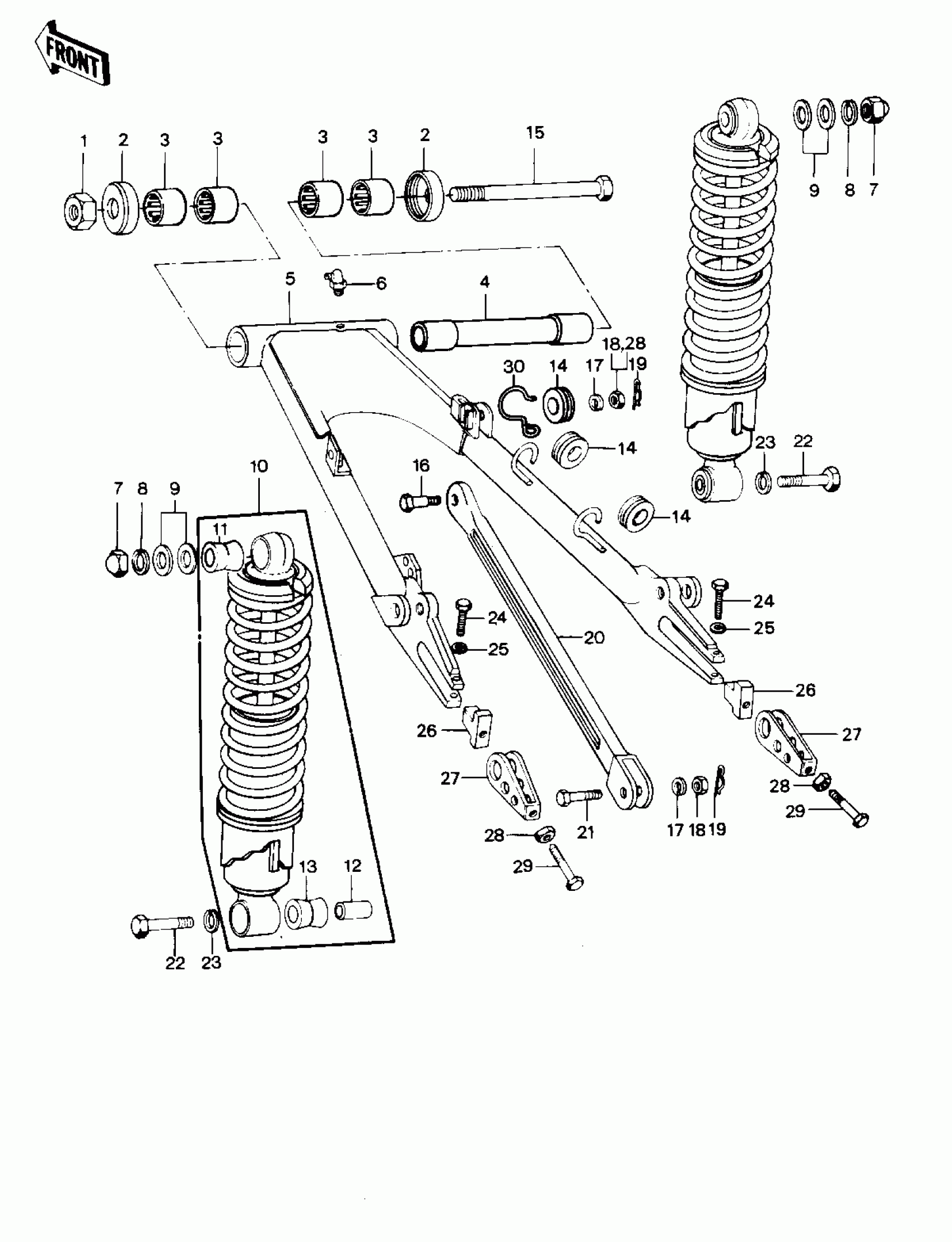

Kawasaki KZ1000 LTD SWING ARM/SHOCK ABSORBERS ('79-'80 B3/B4 Diagram

#

Description
Price

1

NUT-SELF LOCKING

92019-012

$25.70

2

CAP,SWING ARM

33035-009

Unavailable

3

BEARING-NEEDLE,HK2216

92046-1115

$20.02

4

SLEEVE,SWING ARM

42036-1011

Unavailable

5

SWING ARM

33001-1036

$246.40

6

GREASE NIPPLE

92005-002

Unavailable

7

NUT,CAP,12MM

92020-014

$9.45

8

WASHER-SPRING,12MM

461F1200

$0.96

9

WASHER-PLAIN-SMALL,12MM

410B1200

$0.70

10

UNAVAILABLE IN PRICE BOOK

45014-013

Unavailable

11

BUSHING,SHCK ABS RUB

45017-018

Unavailable

12

COLLAR,SHOCKABSORBER

45016-003

$15.92

13

BUSHING,SHCK ABSORBER

45017-011

$24.97

14

GROMMET,HOSE CLAMP

43064-007

$5.52

15

SHAFT-SWING ARM

33032-036

$64.39

16

BOLT,HEX HEAD,10X39

92003-218

Unavailable

17

WASHER SPRING 10MM

461F1000

$0.67

18

NUT-HEX-FINE,10MM

314B1000

$0.67

19

PIN-SNAP,8MM

554A0800

$1.26

20

TORQUE LINK,REAR HUB

43007-049

$52.17

21

BOLT,10X47

92001-1145

Unavailable

22

BOLT HEX HEAD 10X40

113N1040

Unavailable

23

WASHER SPRING 10MM

461F1000

$0.67

24

BOLT

92001-1578

$8.19

25

WASHER SPRING 8MM

461F0800

$0.40

26

STOPPER,CHAIN ADJUSTER

33044-001

$40.02

27

ADJUSTER-CHAIN

33040-066

$30.91

28

NUT-HEX-FINE,10MM

315B1000

$0.58

29

BOLT,10X50

92001-143

$19.74

30

CLAMP,BRAKE HOSE

92037-1061

Unavailable
