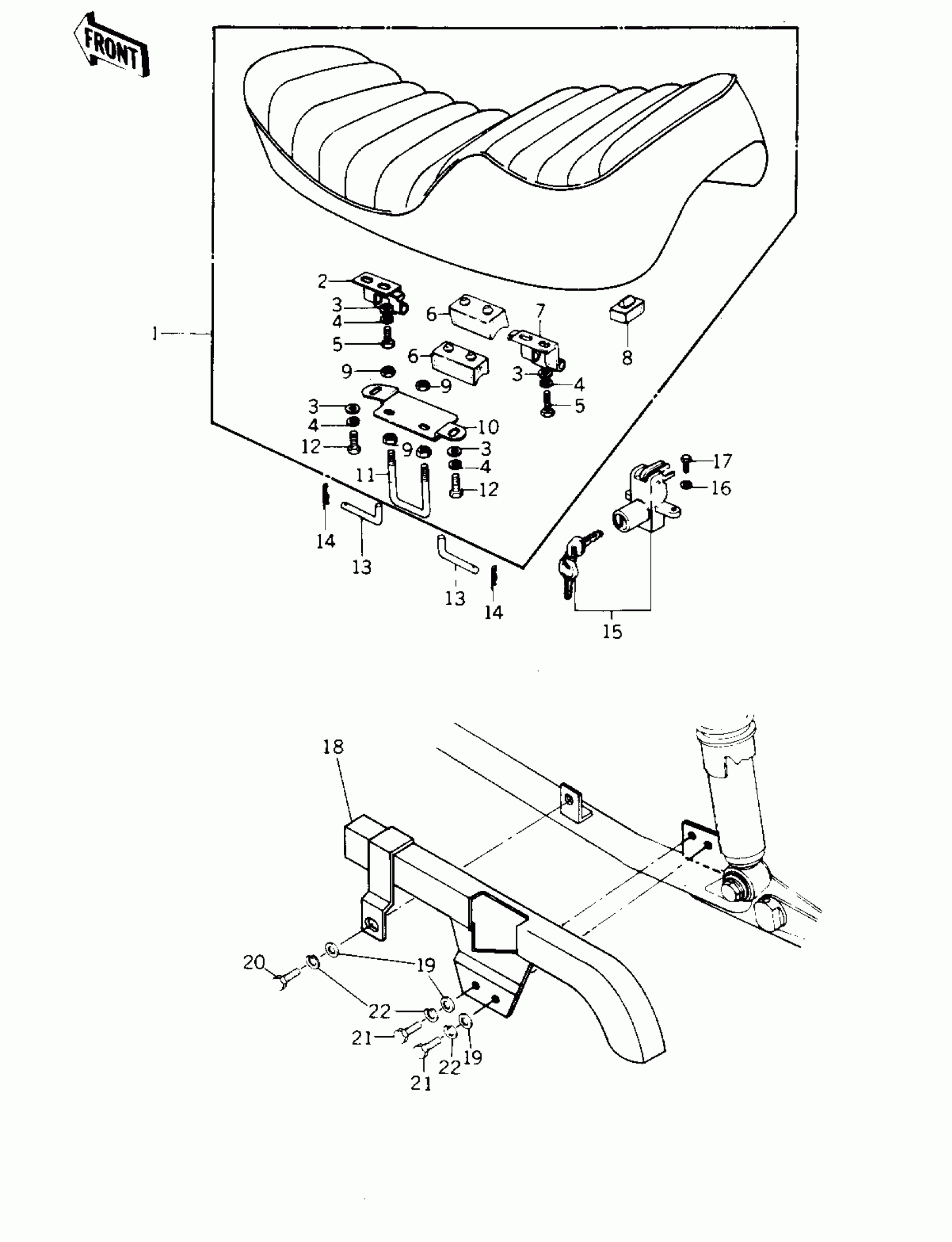

Kawasaki KZ1000 LTD SEAT/CHAIN COVER ('79-'80 B3/B4) Diagram

#

Description
Price

1

SEAT,LTD 900/1000

53001-130

Unavailable

2

HINGE,REAR

53009-030

Unavailable

3

WASHER PLAIN 6MM

411B0600

Unavailable

4

WASHER SPRING 6MM

461F0600

Unavailable

5

BOLT-UPSET,6X16

112G0616

Unavailable

6

DAMPER RUBBER,SEAT

92075-139

$8.72

7

HINGE,REAR

53009-032

Unavailable

8

DAMPER

92075-099

$4.18

9

NUT 6MM

311B0600

Unavailable

10

BRACKET,SEAT CATCH

53058-003

Unavailable

11

HOOK,SEAT

53056-002

$15.71

12

UNAVAILABLE IN PRICE BOOK

110B0-014

Unavailable

13

PIN,DUAL SEAT PIVOT

53011-008

Unavailable

14

COTTER PIN

92041-003

$4.35

15

LOCK-ASSY,SEAT

27016-5010

Unavailable

15

LOCK-ASSY,SEAT

27016-5010

Unavailable

16

WASHER SPRING 6MM

461F0600

Unavailable

17

BOLT-UPSET,6X12

112G0612

Unavailable

18

CASE-CHAIN

36014-069

Unavailable

19

WASHER-PLAIN,6MM

411D0600

$1.49

20

BOLT-HEX HEAD,6X16

110N0616

Unavailable

21

BOLT-UPSET

112G0614

Unavailable

22

WASHER SPRING 6MM

461F0600

Unavailable
