Partiron

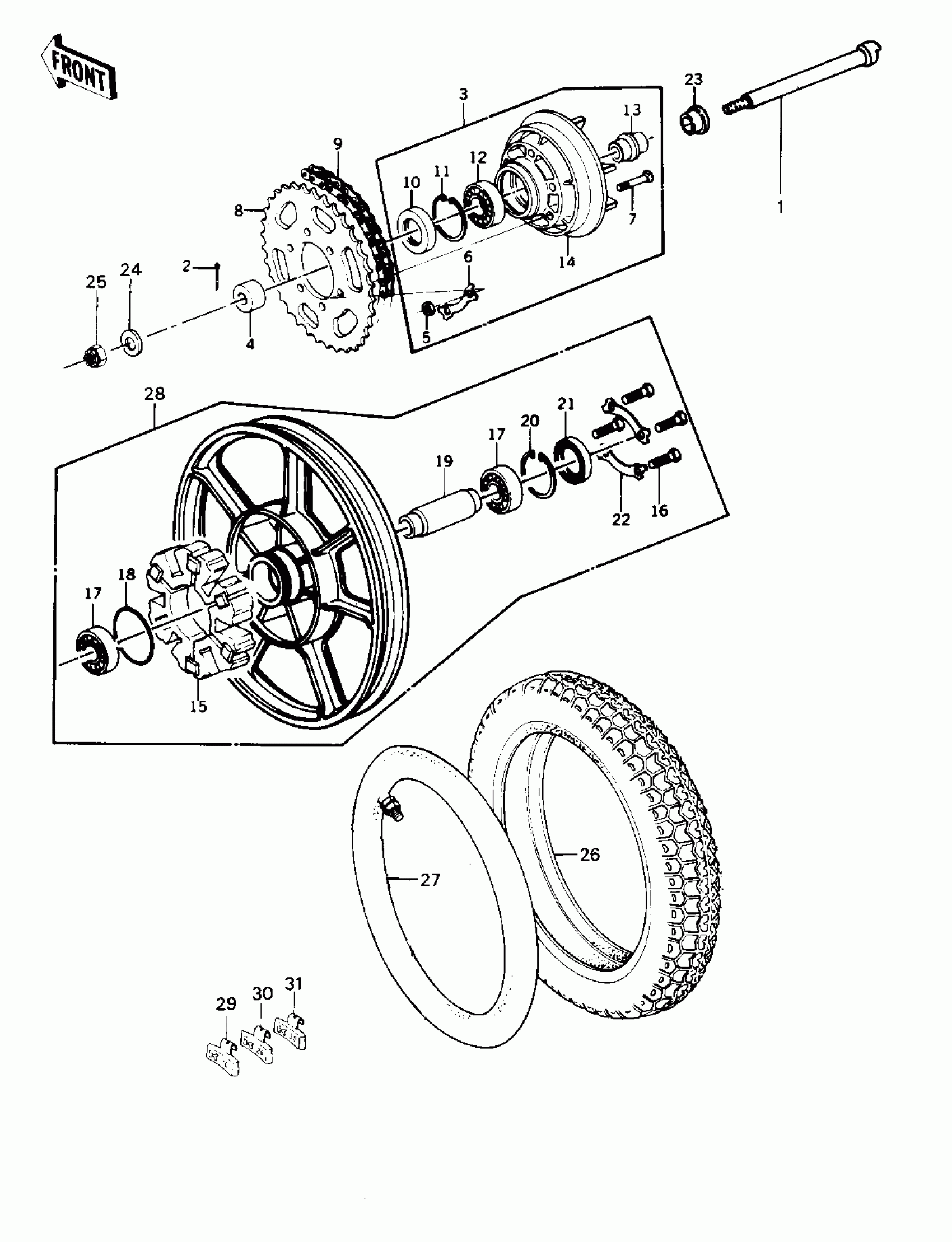

Kawasaki KZ1000 LTD REAR WHEEL/HUB/TIRE/CHAIN ('79-'80 B3/B4 Diagram

#

Description
Price

1

AXLE,REAR

42031-034

$144.85

2

PIN-COTTER,4.0X35

550D4035

$1.57

3

COUPLING ASSY,RR HUB

42008-040

$232.28

4

COLLAR,REAR AXLE

42032-071

Unavailable

5

NUT,10MM

42045-005

$6.08

6

WASHER LOCK

92088-007

$12.10

7

BOLT-REAR SPROCKET

92003-087

Unavailable

8

REAR SPROCKET,33T

42041-1010

Unavailable

9

DR CHAIN 630X92

92057-107

Unavailable

10

SEAL-OIL,AJN40627

92050-027

$16.96

11

RING-SNAP,62MM

92033-1044

$8.59

12

BALL BEARING,#6206

601B6206

$17.84

13

SLEEVE,RR HUB COUPLN

42036-033

Unavailable

15

DAMPER,RR HUB SHOCK,"1000"

42014-033

$114.22

16

BOLT,FLANGED,10X30

92001-1173

$8.42

17

BEARING-BALL,#6304ZZC3

601B6304ZZ

Unavailable

18

O RING,65MM

671B2565

$6.75

19

COLLAR,RR HUB BEARING

42010-040

$16.59

20

RING-SNAP,52MM

92033-1043

$6.15

21

SEAL-OIL,TWC35527

92052-006

Unavailable

22

WASHER,LOCK

92088-023

$10.87

23

COLLAR, REAR AXLE

92027-1177

Unavailable

24

WASHER,20.3X34X4.5

92022-248

$11.12

25

NUT,CASTLE,18MM

42045-018

$7.01

26

TIRE 510-16 MT90 R

41021-072

$175.88

27

TUBE 510-16

K41022-1651

$17.46

28

SOLID WHEEL ASSY,REAR

41073-1043

$386.09

29

BALANCER-WHEEL,10G

41075-1011

Unavailable

30

BALANCER-WHEEL,20G

41075-1012

Unavailable

31

BALANCER-WHEEL,30G

41075-1013

Unavailable
