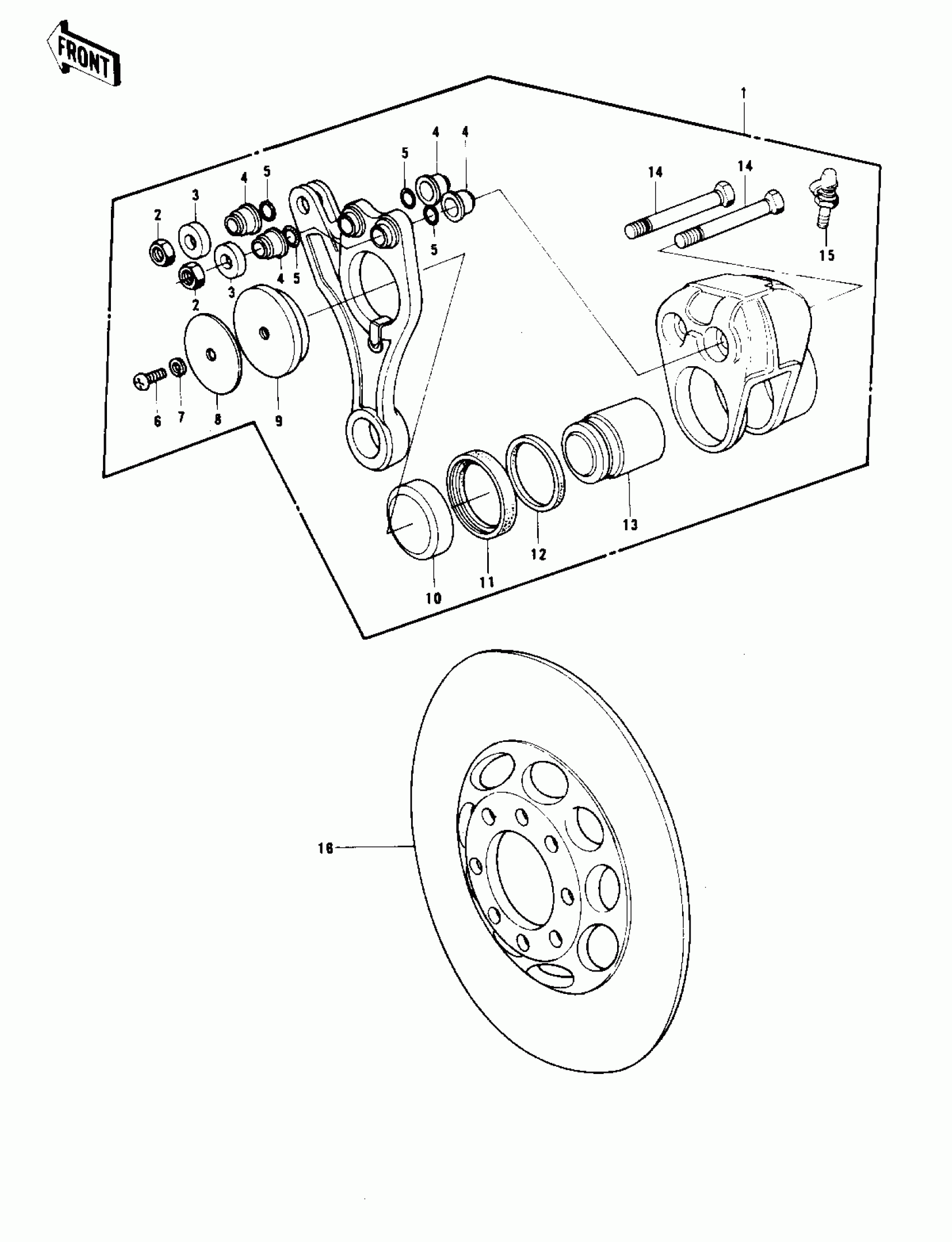

Kawasaki KZ1000 LTD REAR BRAKE ('77-'78 B1/B2) Diagram

#

Description
Price

1

CALIPER ASSY,REAR

43041-034

Unavailable

2

NUT-HEX-FINE,10MM

315B1000

Unavailable

3

PLUG

43088-002

Unavailable

4

DUST SHILD,SHAFT

43052-005

Unavailable

5

"0" RING

43053-006

Unavailable

6

SCREW PAN HEAD 6X12

220B0612

Unavailable

7

WASHER SPRING 6MM

461F0600

Unavailable

8

SPACER

43040-004

Unavailable

9-10

PAD SET,(REAR)

43050-5002

$115.59

9

PAD B

43051-009

$34.42

10

PAD A

43050-008

$33.07

11

DUST SEALD,RUBBER

43054-003

Unavailable

12

PACKING,PISTON SEAL

43049-002

$10.56

13

PISTON,CALIPER

43048-006

Unavailable

14

BOLT

43045-006

$42.74

15

BLEEDER SET

43085-001

$19.94

16

PLATE,REAR DISC

41080-008

$495.98
