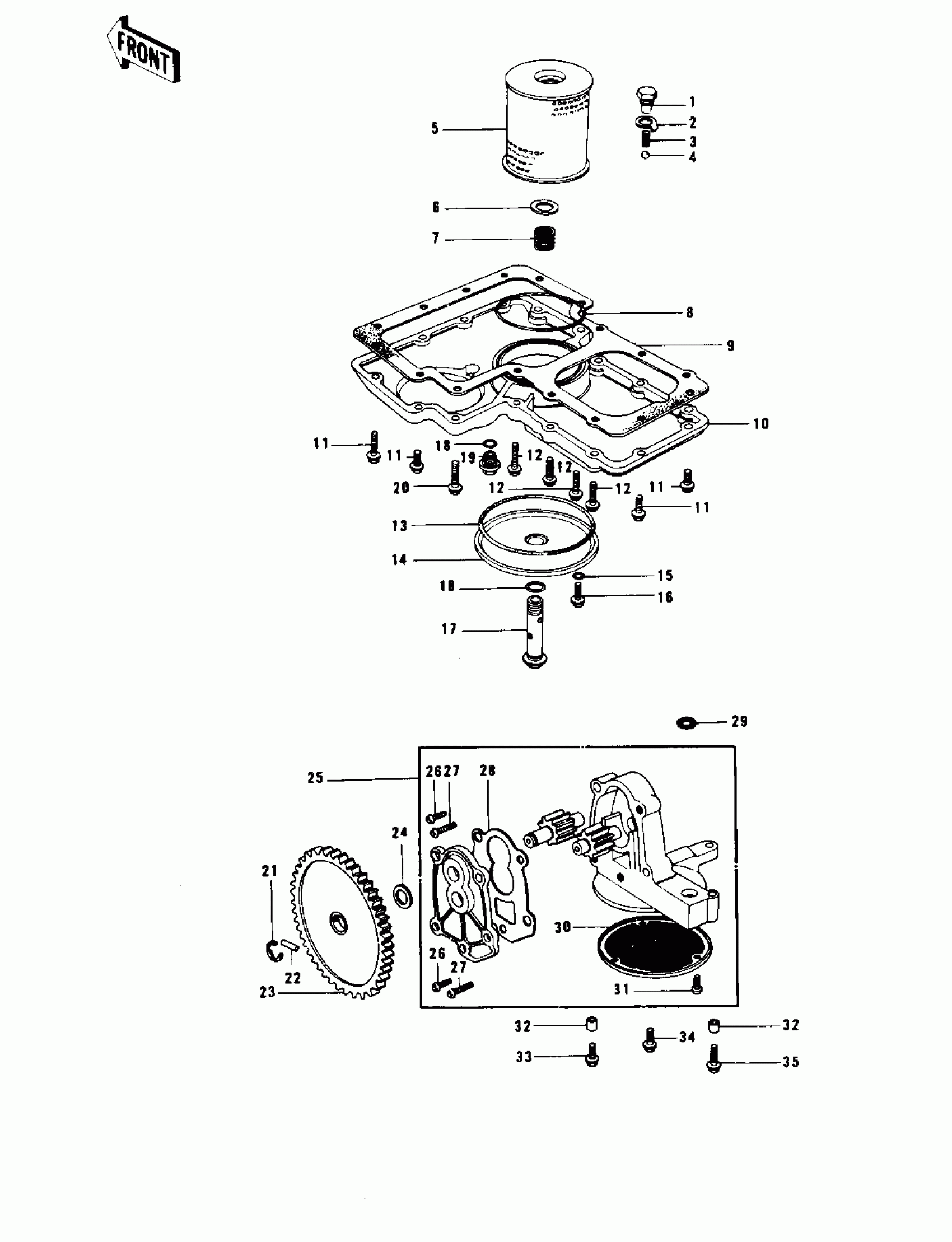

Kawasaki KZ1000 LTD OIL PAN/OIL PUMP/OIL FILTER ('77-'78 B1/ Diagram

#

Description
Price

1

BOLT

92003-095

Unavailable

2

WASHER,LOCK

92024-048

Unavailable

3

SPRING

92081-109

$11.29

4

BALL-STEEL,3/8"

600A1200

$1.56

5

ELEMENT-OIL FILTER

16099-002

$16.20

6

WASHER,20.5X30X1

92022-1012

$4.34

7

SPRING,OIL FILTER

92081-1018

$4.65

8

RING-O,91.6X3.4

92055-052

$9.89

9

GASKET,OIL PAN

11060-1074

Unavailable

10

PAN-OIL

49034-5020

$265.23

11

BOLT,FLANGED,6X25

130G0625

$1.17

12

BOLT, HEX HEAD, 6X34

92003-159

Unavailable

13

"0" RING,105MM

671B25105

$31.93

14

COVER,OIL FILTER

14025-1112

Unavailable

15

O RING,8MM

670B1508

$1.29

16

PLUG,OIL DRAIN

92066-024

Unavailable

17

BOLT,OIL FILTER

92001-1074

$83.10

18

O RING,22MM

670B2022

$4.69

19

PLUG,OIL DRAIN

92001-1183

$54.58

20

BOLT-FLANGED,6X50

130G0650

$1.01

21

CIRCLIP,7MM

482K7000

$3.81

22

PIN,DOWEL,3X14

551A0314

$0.73

23

GEAR,OIL PUMP 49T

16085-019

$102.31

24

WASHER,LOCK,16MM

92026-080

$4.69

25

PUMP-ASSY-OIL

16082-5001

$637.41

26

SCREW PAN HEAD 6X18

220B0618

$3.67

27

SCREW PAN HEAD 6X28

220B0628

$3.41

28

GASKET,OIL PUMP

11009-1029

Unavailable

28

GASKET,OIL PUMP

11009-1029

Unavailable

29

RING-O,OD=18

92055-048

$4.80

30

FILTER,OIL PUMP

16111-004

$44.36

31

SCREW PAN HEAD 5X8

220B0508

$0.46

32

PIN,DOWEL,8X10

92043-1302

$1.03

33

BOLT,HEX HEAD,6X35

92001-164

$6.60

34

UNAVAILABLE IN PRICE BOOK

92001-168

Unavailable

35

BOLT,FLANGED,6X45

92001-165

$5.24
