Description

Price

1

NUT,LOCK,8MM

92017-013

$10.35

2

HOLDER,EXHAUST PIPE,

18069-1005

$61.29

3

INSERT,EXHAUST PIPE

92027-170

$13.51

4

GASKET,EXHAUST PIPE

11009-1906

$11.06

5

MUFFLER,LEFT

18001-1064

Unavailable

5

MUFFLER,LEFT

18001-1064

Unavailable

5

MUFFLER,LEFT

18001-1064

Unavailable

6

MUFFLER,RIGHT

18001-1065

Unavailable

6

MUFFLER,RIGHT

18001-1065

Unavailable

6

MUFFLER,RIGHT

18001-1065

Unavailable

7

HOLDER,EXHAUST PIPE,

18069-1004

Unavailable

8

EXHAUST PIPE,L.H. INN

18049-1005

$136.40

9

EXHAUST PIPE,R.H. INN

18049-1006

$136.12

9

EXHAUST PIPE,R.H. INN

18049-1006

$136.12

10

BOLT-HEX HEAD,10X60

113N1060

$11.86

11

WASHER,PLAIN,10MM (Canada)

410D1000

Unavailable

12

NUT,LOCK,10MM

92019-021

$6.11

13

BUSHING,MUFFLER FITT

92092-010

$16.18

14

CLAMP,EXH PIPE CONNCT

92037-180

Unavailable

15

BOLT-SMALL-UPSET 8X25

115G0825

$5.05

16

WASHER SPRING 8MM

461F0800

$0.40

17

BOLT (6X10)

110R0610

$3.44

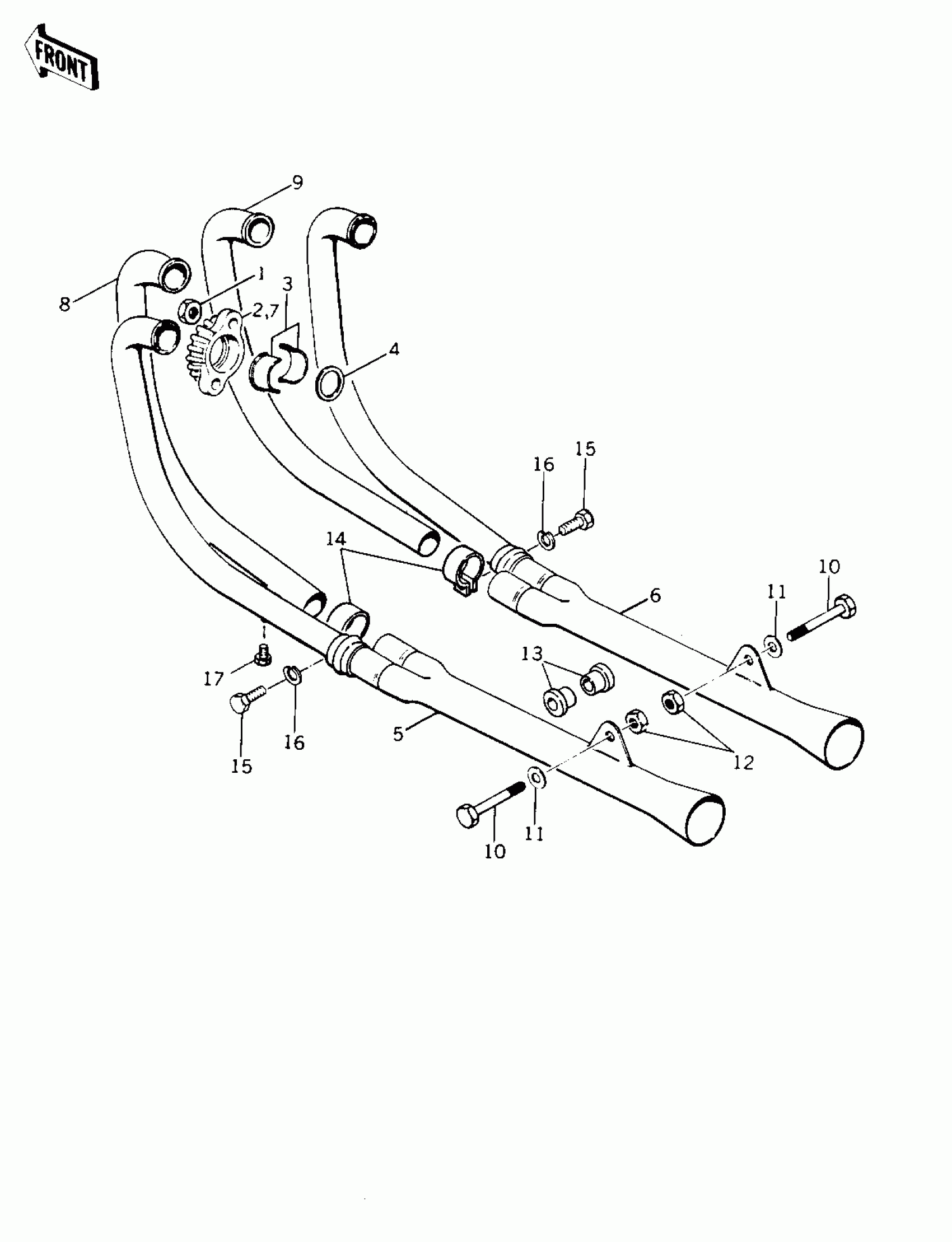

Kawasaki KZ1000 LTD MUFFLERS ('77-'78 B1/B2) Diagram

NUT,LOCK,8MM

HOLDER,EXHAUST PIPE,

INSERT,EXHAUST PIPE

GASKET,EXHAUST PIPE

MUFFLER,LEFT

MUFFLER,LEFT

MUFFLER,LEFT

MUFFLER,RIGHT

MUFFLER,RIGHT

MUFFLER,RIGHT

HOLDER,EXHAUST PIPE,

EXHAUST PIPE,L.H. INN

EXHAUST PIPE,R.H. INN

EXHAUST PIPE,R.H. INN

BOLT-HEX HEAD,10X60

WASHER,PLAIN,10MM (Canada)

NUT,LOCK,10MM

BUSHING,MUFFLER FITT

CLAMP,EXH PIPE CONNCT

BOLT-SMALL-UPSET 8X25

WASHER SPRING 8MM

BOLT (6X10)
