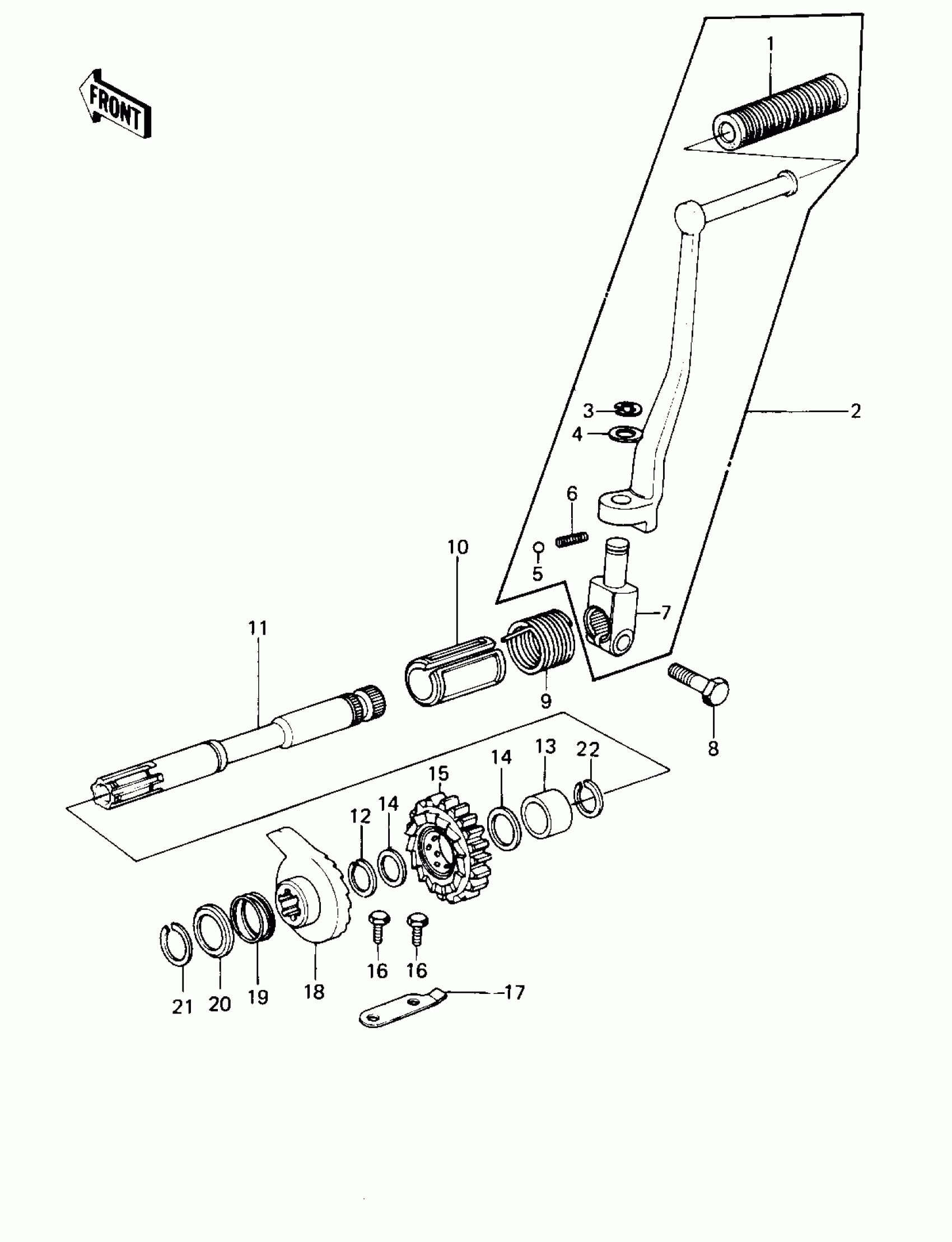

Kawasaki KZ1000 LTD KICKSTARTER MECHANISM ('79-'80 B3/B4) Diagram

#

Description
Price

1

DAMPER,KICK PEDAL

13063-004

$8.32

2

PEDAL,KICKSTARTER

13058-044

Unavailable

3

CIRCLIP-TYPE-E,10MM

482J0100

$0.65

4

WASHER BRAKE PEDAL

92022-085

$3.53

5

BALL-STEEL,1/4

600A0800

$0.59

6

SPRING,KICK PEDAL

92081-020

$3.25

7

BOSS-KICK PEDAL

13061-014

Unavailable

8

BOLT-HEX HEAD,10X25

114B1025

Unavailable

9

SPRING,KICKSTARTER

92082-004

Unavailable

10

GUID,KICK SPRING

13070-1008

Unavailable

11

SHAFT,KICKSTARTER

13066-1004

Unavailable

12

RING-SNAP,20X25.5X1.2

92033-025

$3.78

13

COLLAR,KICKSHAFT

92028-126

$27.68

14

WASHER,PLAIN,22MM

92022-207

Unavailable

15

GEAR,KICKSTARTER

59051-1006

$76.27

16

BOLT-UPSET

112G0614

Unavailable

17

STOPPER,KICKSTARTER

13072-012

Unavailable

18

RATCHET,KICK SHAFT

13078-011

Unavailable

19

SPRING RATCHET

92081-104

$9.88

20

CAP,KICKSTARTER

92102-008

Unavailable

21

CIRCLIP-TYPE-C,19MM

480J1900

$0.98

22

RING-SNAP,20X25.5X1.2

92033-025

$3.78

22

CIRCLIP-TYPE-C,22MM

480J2200

$3.81
