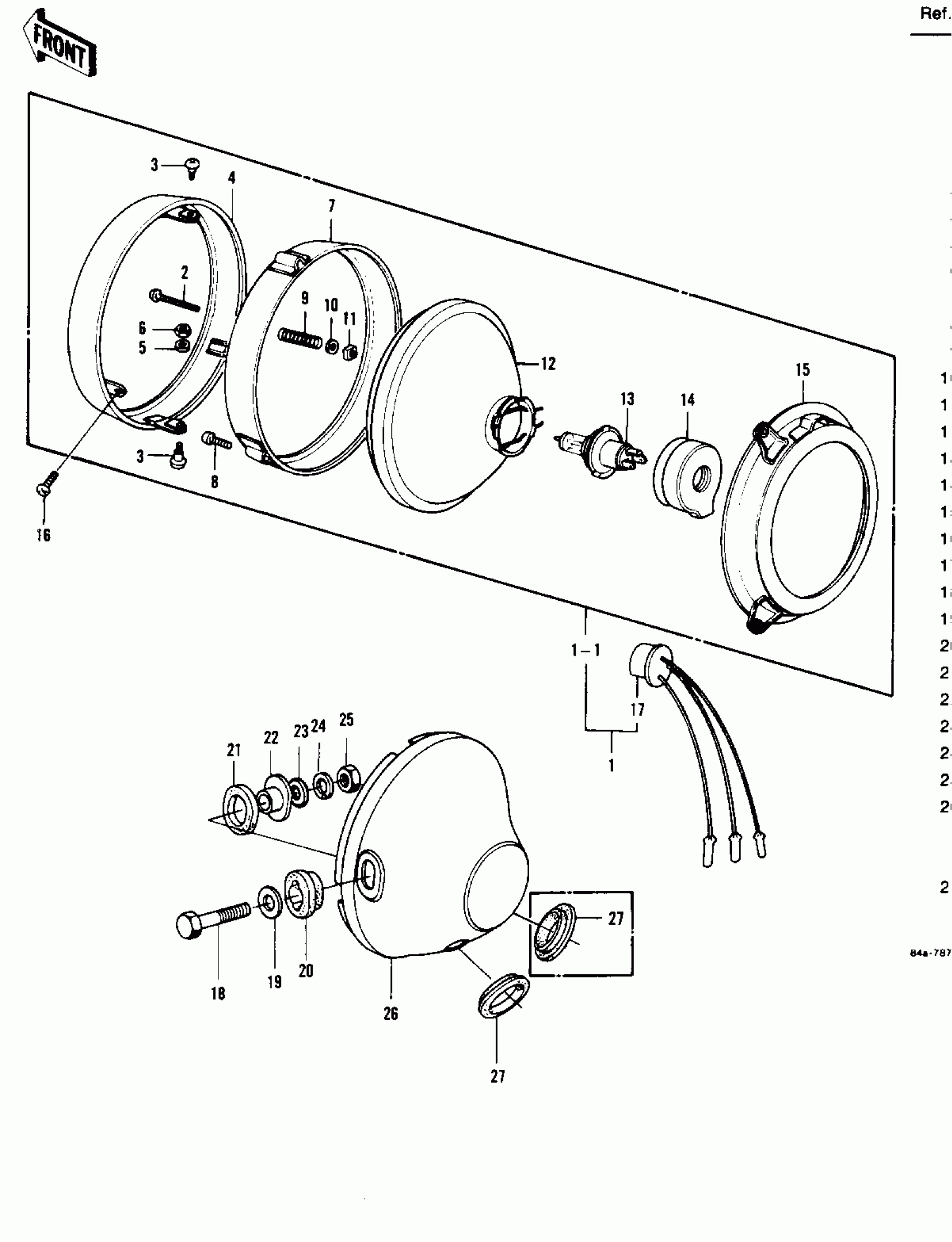

Kawasaki KZ1000 LTD HEADLIGHT (KZ1000-B4) Diagram

#

Description
Price

1

23004-1040 (Canada)

23004-1035

$0.12

1-1

LAMP-HEAD

23004-1040

Unavailable

2

SCREW,FOCUS ADJUSTING

23019-021

$4.69

3

SCREW,PAN HEAD,5X12

23019-023

$5.43

4

RIM,HEAD LAMP

23006-038

Unavailable

5

WASHER,PLAIN,5MM

23021-012

$5.43

6

NUT,5MM

23020-023

Unavailable

7

RING,HEAD LAMP MOUNT

23072-001

$44.17

8

SCREW-PAN-CROS

220B0312

$1.58

9

SPRING,FOCUS ADJUSTING

23014-005

$3.62

10

WASHER,4.1X8X0.8

23021-004

$2.91

11

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

12

LENS-COMP,"001-1970" MARK

23007-1009

Unavailable

13

BULB,12V 60/55W,H4

92069-1002

Unavailable

14

COVER-SEAL

49016-1016

Unavailable

15

RING,HEAD LAMP MOUNT

23074-001

$64.65

16

SCREW,SPECIAL,5X14

23019-022

$2.12

17

SOCKET ASSY,HEAD LAMP

23008-037

Unavailable

18

BOLT,10X35

92007-024

$8.06

19

WASHER-PLAIN,10MM

411D1000

$4.78

20

DAMPER RUBBER

23066-022

Unavailable

21

DAMPER RUBBER

23066-021

Unavailable

22

COLLAR

23052-010

Unavailable

23

WASHER PLAIN 10MM

410B1000

$0.58

24

WASHER SPRING 10MM

461F1000

$0.67

25

NUT-HEX-FINE,10MM

315B1000

$0.58

26

BODY-COMP-HEAD LAMP

23005-1016

$231.11

26

BODY-COMP-HEAD LAMP

23005-1016

Unavailable

27

GROMMET

92071-1008

Unavailable
