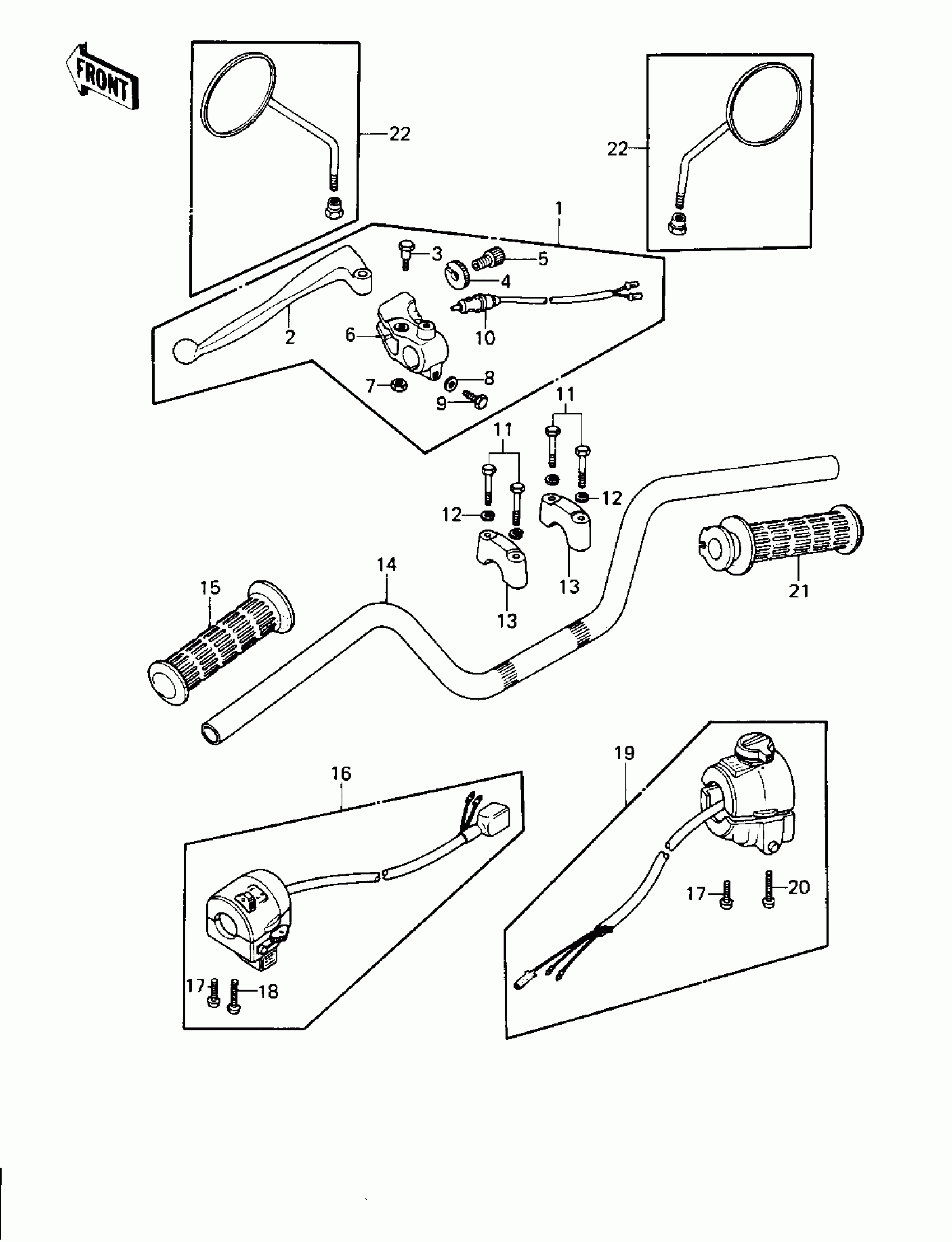

Kawasaki KZ1000 LTD HANDLEBAR ('79-'80 B3/B4) Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

46076-064

Unavailable

2

LEVER-GRIP,CLUTCH

46092-023

$36.65

3

BOLT,HEX HEAD

92007-047

Unavailable

4

NUT,CABLE ADUST NUT

46056-007

Unavailable

5

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

5

SCREW,CABLE ADJUSTER

92009-1022

Unavailable

6

HOLDER,CLUTCH LEVER

46094-019

$72.21

7

NUT,LOCK 6MM

92017-014

$5.74

8

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

9

BOLT HEX HEAD 6X25

110N0625

Unavailable

10

SWITCH,CLUTCH

27043-002

Unavailable

11

BOLT 8X38

92001-1405

$12.52

11

BOLT 8X38

92001-1405

$12.52

12

WASHER SPRING 8MM

461F0800

Unavailable

13

HOLDER-HANDLE,UPP

46012-008

$33.69

14

HANDLEBAR

46003-037

Unavailable

15

RUBBER,L.H GRIP

46075-028

$40.75

16

HOUSING ASSY,L.H

46091-1049

Unavailable

16

HOUSING ASSY,L.H.

46091-1095

$122.14

16

HOUSING ASSY,L.H.

46091-1095

$122.14

17

SCREW PAN HEAD 5X30

220B0530

Unavailable

18

SCREW-PAN-CROS

220B0535

$2.80

19

HOUSING ASSY,R.H

46091-1050

Unavailable

20

SCREW-PAN-CROS

220B0540

Unavailable

21

GRIP ASSY,THROTTLE

46019-038

Unavailable

22

MIRROR-ASSY,LH&RH

56001-5008

Unavailable
