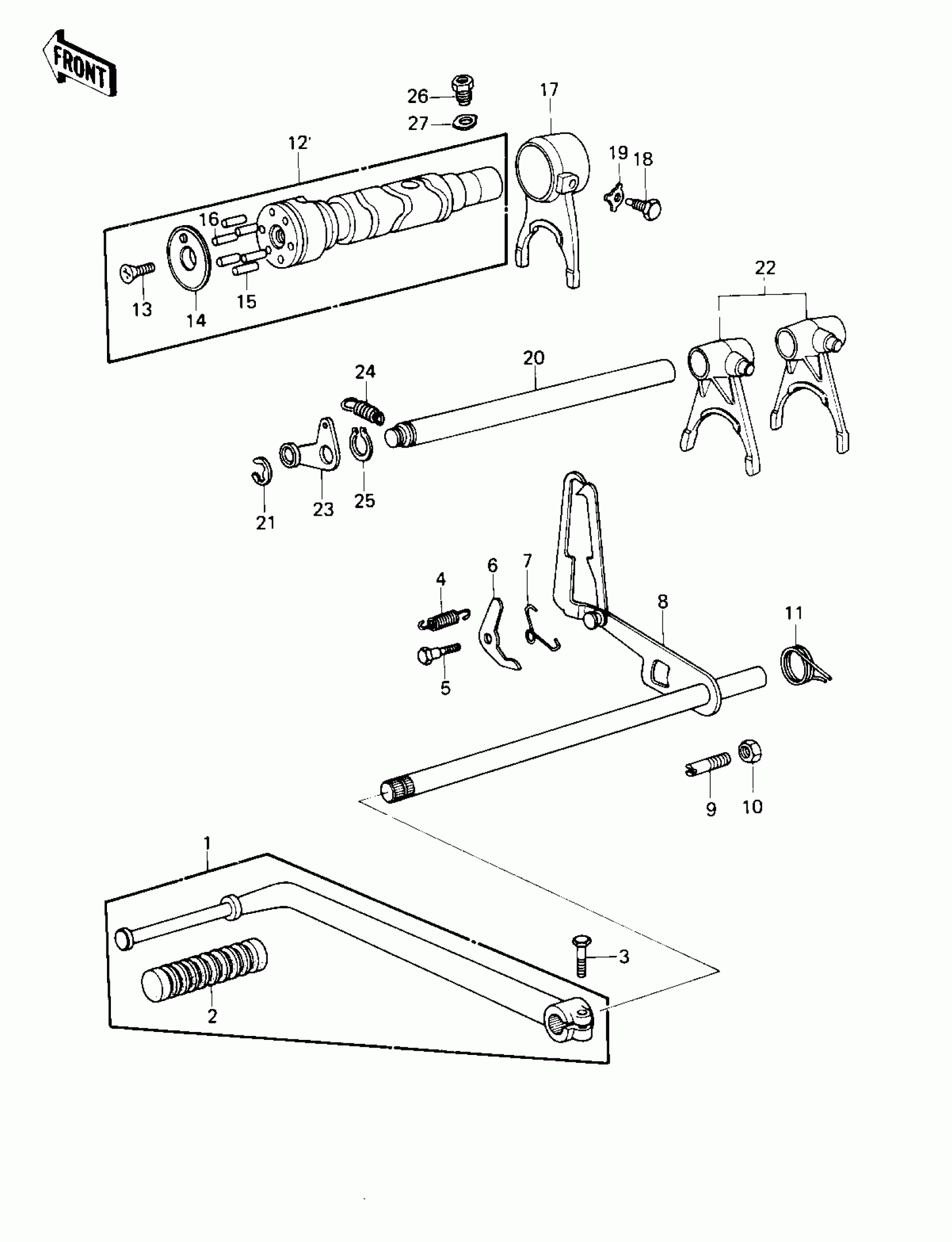

Kawasaki KZ1000 LTD GEAR CHANGE MECHANISM (KZ1000-B3) Diagram

#

Description
Price

1

PEDAL ASSY,GEAR CHAN

13242-006

Unavailable

2

DAMPER,CHANGE PEDAL

13157-004

Unavailable

3

BOLT-UPSET

112N0620

Unavailable

4

SPRING,NEUTRAL POSITION

92081-051

$4.76

5

BOLT,CHANGE DRUM LEVER

92150-1450

$4.71

6

LEVER,GEAR CHNG DRUM

13168-024

Unavailable

7

SPRING

92083-018

$9.47

8

LEVER ASSY GEAR CHNG

13161-029

Unavailable

9

PIN CHANGE PEDAL SPRG

92043-057

Unavailable

10

NUT 8MM

312B0800

Unavailable

11

SPRING,CHG PEDL RTRN

92083-028

Unavailable

12

DRUM ASSY,GEAR CHANG

13239-1015

Unavailable

13

SCREW-CSK-CROS,6X20

221B0620

$1.71

14

HOLDER,CHANGE DRUM PIN

13091-1088

$25.85

15

PIN,DOWEL,4X15.8

92042-014

$0.46

16

PIN,DOWEL,4X17.8

92042-020

$4.46

17

FORK,SELECTOR,3RD

13140-046

Unavailable

18

PIN SELECT FORK GUIDE

92043-016

Unavailable

19

WASHER LOCK 10MM

92031-001

$8.71

20

ROD,SHIFT

49047-1006

$27.86

21

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

22

FORK,SELECTOR,4TH&TOP

13140-045

$260.39

23

LEVER ASSY,CHANGE

13236-1005

Unavailable

24

SPRING,NEUTRAL POSITION

92081-051

$4.76

25

CIRCLIP-TYPE-E,6MM

482J6000

$0.65

26

BOLT,CHG DRUM POSITN

92001-112

Unavailable

27

WASHER,LOCK

92024-047

Unavailable
