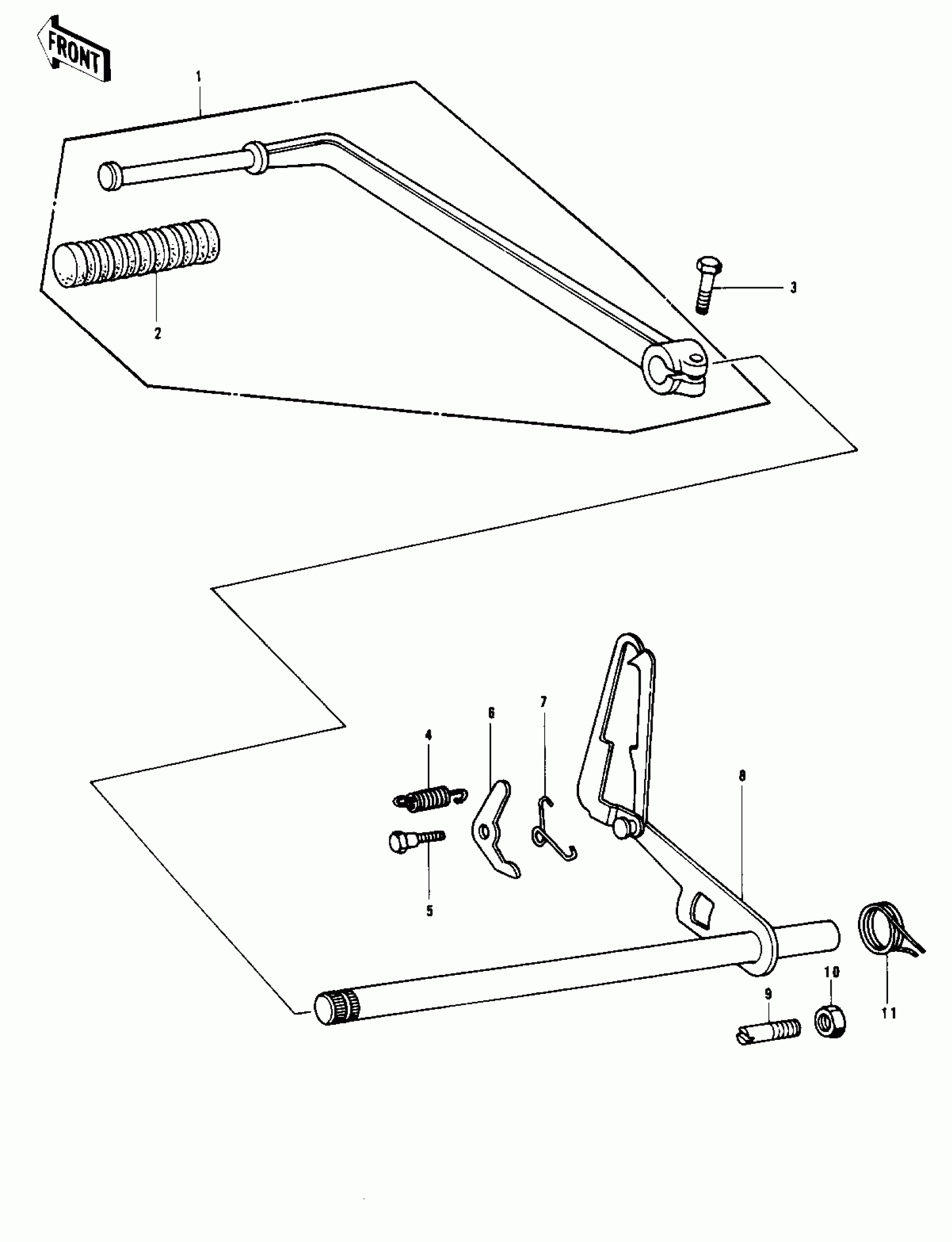

Kawasaki KZ1000 LTD GEAR CHANGE MECHANISM ('77-'78 B1/B2) Diagram

#

Description

Price

1

LEVER-ASSY-CHANGE

13242-1100

Unavailable

2

DAMPER,CHANGE PEDAL

92160-1036

$3.85

3

BOLT-UPSET

112N0620

Unavailable

4

SPRING,NEUTRAL POSITION

92081-051

$4.76

5

BOLT,CHANGE DRUM LEVER

92150-1450

$4.71

6

LEVER,GEAR CHNG DRUM

13168-024

Unavailable

7

SPRING

92083-018

$9.47

8

LEVER ASSY GEAR CHNG

13161-029

Unavailable

9

PIN CHANGE PEDAL SPRG

92043-057

Unavailable

10

NUT 8MM

312B0800

Unavailable

11

SPRING,CHG PEDL RTRN

92083-028

Unavailable
