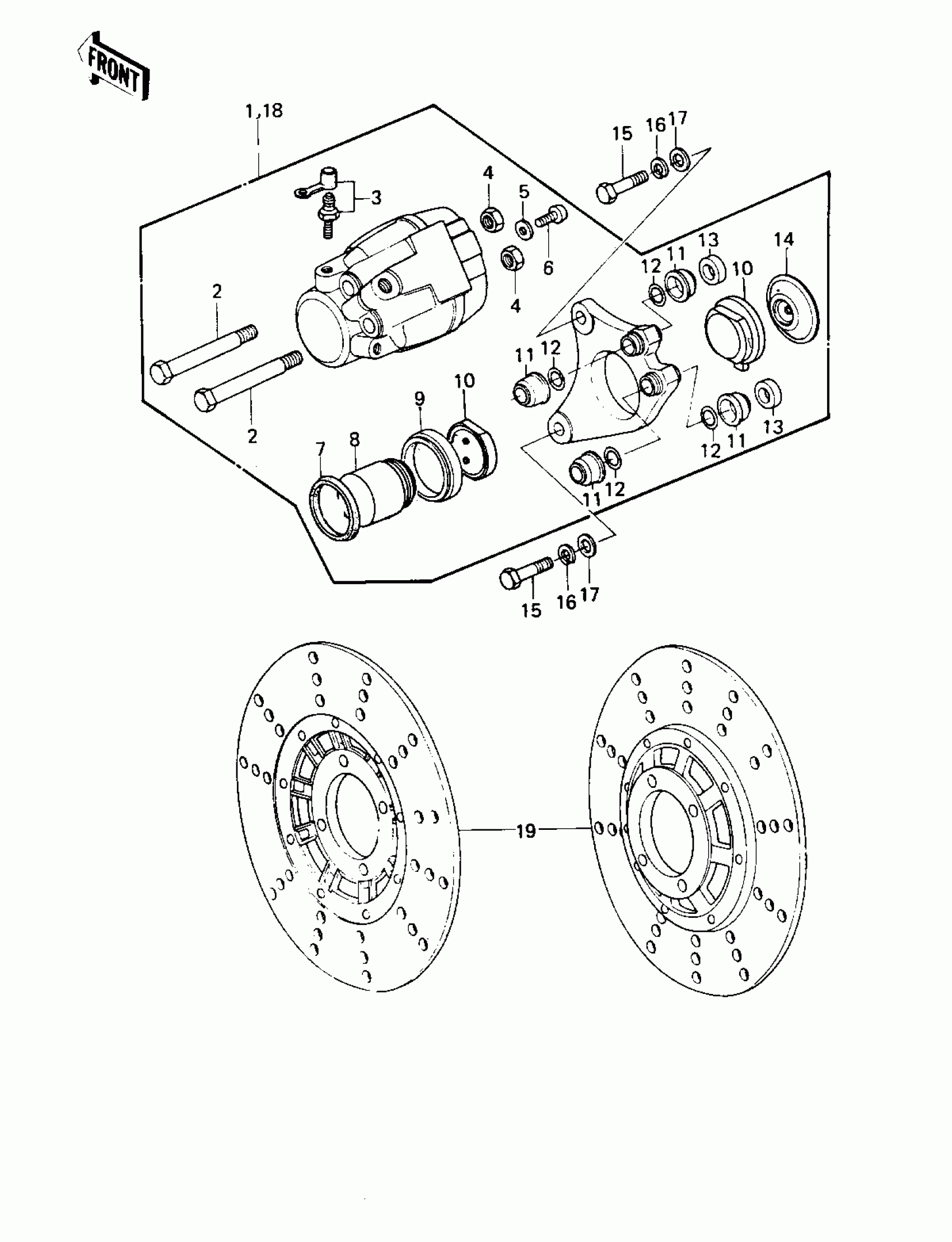

Kawasaki KZ1000 LTD FRONT BRAKE ('79-'80 B3/B4) Diagram

#

Description
Price

1

CALIPER ASSY,L.H,

43041-1024

$494.86

2

BOLT

43045-006

$42.74

3

BLEEDER SET

43085-001

$19.94

4

NUT-HEX-FINE,10MM

315B1000

Unavailable

5

WASHER SPRING 6MM

461F0600

Unavailable

6

SCREW PAN HEAD 6X12

220B0612

Unavailable

7

PACKING,PISTON SEAL

43049-002

$10.56

8

PISTON,BRAKE,42M/M

43020-1012

Unavailable

9

DUST SEALD,RUBBER

43054-003

Unavailable

10

PAD SET

43082-1001

Unavailable

11

DUST SHILD,SHAFT

43052-005

Unavailable

12

"0" RING

43053-006

Unavailable

13

PLUG

43088-002

Unavailable

14

SPACER

43040-004

Unavailable

15

BOLT

92007-032

$13.15

15

BOLT,FLANGED,10X38

92001-1293

$7.25

16

WASHER SPRING 10MM

461F1000

Unavailable

17

WASHER PLAIN 10MM

410B1000

Unavailable

18

CALIPER ASSY,R.H

43041-1025

$317.19

19

DISC PLATE,FRONT BRA

41080-1022

$496.43
