Description

Price

1

BOLT,16X25.5

92007-031

Unavailable

2

WASHER,16X41X4

92022-230

$11.93

3

WASHER,WAVE

46100-003

$11.39

4

NUT,30MM

92090-007

$11.71

5

CAP,STEERING STEM

46098-016

$6.51

6

RACE,STEERING STEM BEARING

92047-011

$14.60

7

BALL-STEEL,1/4

600A0800

$0.62

8

RACE,STEERING STEM BEARING

92048-006

$11.61

9

RACE,STEERING STEM BEARING

92048-008

$16.02

10

FRAME

32002-1050

$931.52

10

FRAME

32002-1119

$945.53

11

REFLECTOR-REFLEX,FR

28012-016

$23.25

12

DAMPER,REFLECTOR

92094-011

$4.60

13

BOLT,ENGINE MOUNTING

92091-022

Unavailable

14

NUT,8MM

311B0800

$0.67

15

WASHER SPRING 8MM

461F0800

$0.40

16

PLATE,ENG MOUNT FRON

32030-025

$21.66

17

BOLT,HEX HEAD,8X65

92001-1236

$2.13

18

BOLT,FLANGED,8X60

92001-1581

$5.14

19

NUT,LOCK,10MM

92019-021

$6.11

20

WASHER SPRING 10MM

461F1000

$0.67

21

BOLT,HEX HEAD,12X55

92001-1262

Unavailable

22

BOLT-SMALL-UPSET,8X18

115G0818

$5.23

23

PLATE,ENG MOUNT LOWER

32030-026

$18.71

24

PLATE,REAR ENGINE,L.H

32030-066

Unavailable

25

PLATE,REAR ENGINE,R.H

32030-067

Unavailable

25

BRACKET,REAR ENGINE

32029-1024

$15.73

26

BOLT,HEX HEAD,8X40

92001-1230

Unavailable

27

COLLAR,ENG MOUNTING

92027-160

Unavailable

28

COLLAR,ENG MOUNTING

92027-159

$29.02

29

BOLT,FLANGED,8X35

92001-1577

Unavailable

30

BOLT,ENGINE MOUNTING

92003-099

Unavailable

31

BOLT,ENGINE MOUNTING

92091-023

Unavailable

32

BOLT,HEX HEAD,12X70

92001-1265

Unavailable

33

WASHER-SPRING,12MM

461F1200

$0.96

34

NUT,12MM

92016-045

$25.59

35

BRACKET,SIDE COV,R.H

32049-101

Unavailable

36

CLAMP,OVER FLOW PIPE

92037-134

$11.50

37

LOCK,ASSY,STEERING

27016-5016

Unavailable

38

SCREW,3.51MM

92008-007

$4.11

39

WASHER,WAVE

92097-003

$4.50

40

CAP,STEERING LOCK

11012-1134

$6.87

41

SPRING,STEERING LOCK

27032-001

$5.25

42

BRACKET,SIDE STAND

11034-1684

Unavailable

43

BOLT-UPSET,6X12

112G0612

$1.45

44

WASHER SPRING 6MM

461F0600

$0.69

45

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

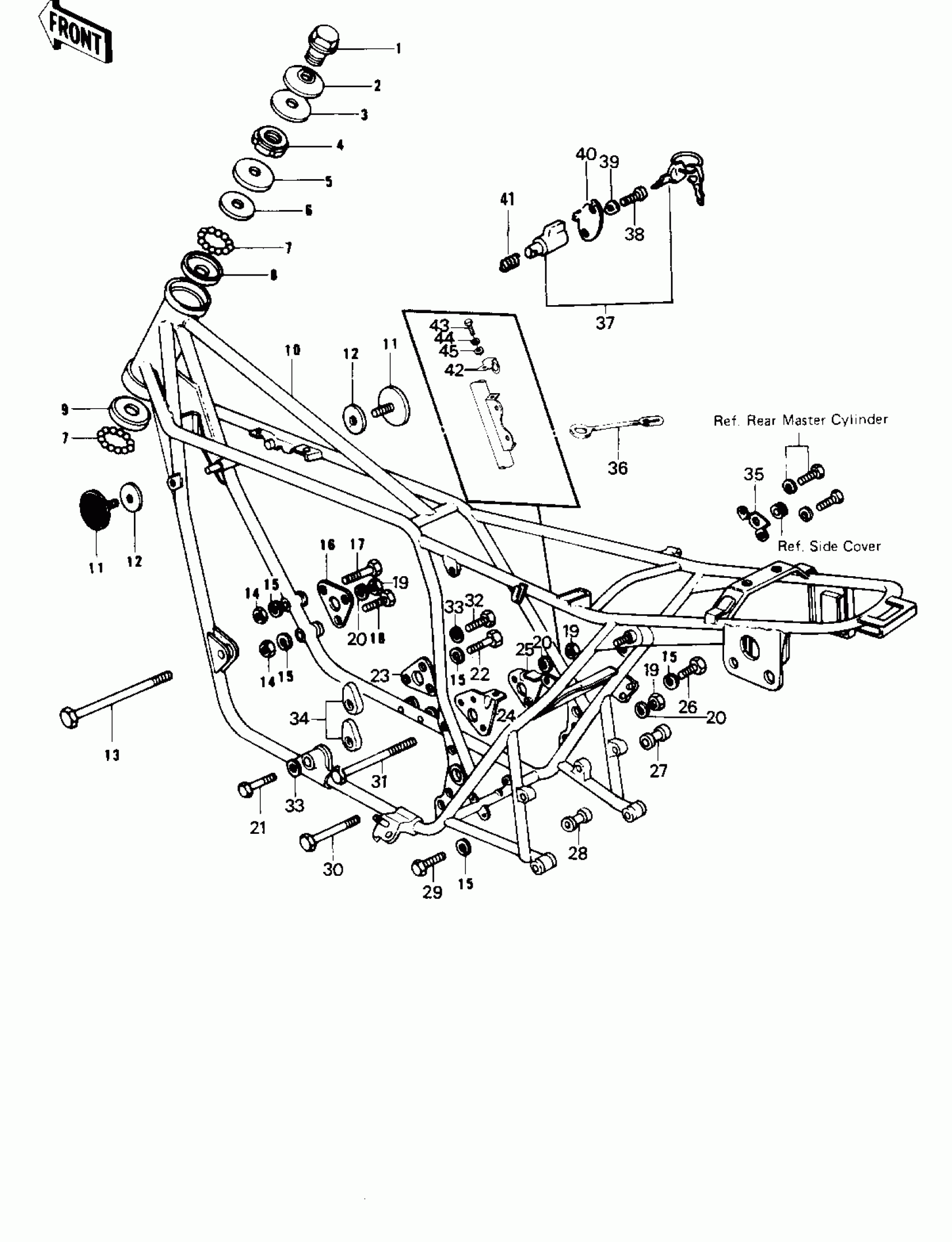

Kawasaki KZ1000 LTD FRAME/FRAME FITTINGS ('79-'80 B3/B4) Diagram

BOLT,16X25.5

WASHER,16X41X4

WASHER,WAVE

NUT,30MM

CAP,STEERING STEM

RACE,STEERING STEM BEARING

BALL-STEEL,1/4

RACE,STEERING STEM BEARING

RACE,STEERING STEM BEARING

FRAME

FRAME

REFLECTOR-REFLEX,FR

DAMPER,REFLECTOR

BOLT,ENGINE MOUNTING

NUT,8MM

WASHER SPRING 8MM

PLATE,ENG MOUNT FRON

BOLT,HEX HEAD,8X65

BOLT,FLANGED,8X60

NUT,LOCK,10MM

WASHER SPRING 10MM

BOLT,HEX HEAD,12X55

BOLT-SMALL-UPSET,8X18

PLATE,ENG MOUNT LOWER

PLATE,REAR ENGINE,L.H

PLATE,REAR ENGINE,R.H

BRACKET,REAR ENGINE

BOLT,HEX HEAD,8X40

COLLAR,ENG MOUNTING

COLLAR,ENG MOUNTING

BOLT,FLANGED,8X35

BOLT,ENGINE MOUNTING

BOLT,ENGINE MOUNTING

BOLT,HEX HEAD,12X70

WASHER-SPRING,12MM

NUT,12MM

BRACKET,SIDE COV,R.H

CLAMP,OVER FLOW PIPE

LOCK,ASSY,STEERING

SCREW,3.51MM

WASHER,WAVE

CAP,STEERING LOCK

SPRING,STEERING LOCK

BRACKET,SIDE STAND

BOLT-UPSET,6X12

WASHER SPRING 6MM

WASHER-PLAIN-SMALL,6MM
