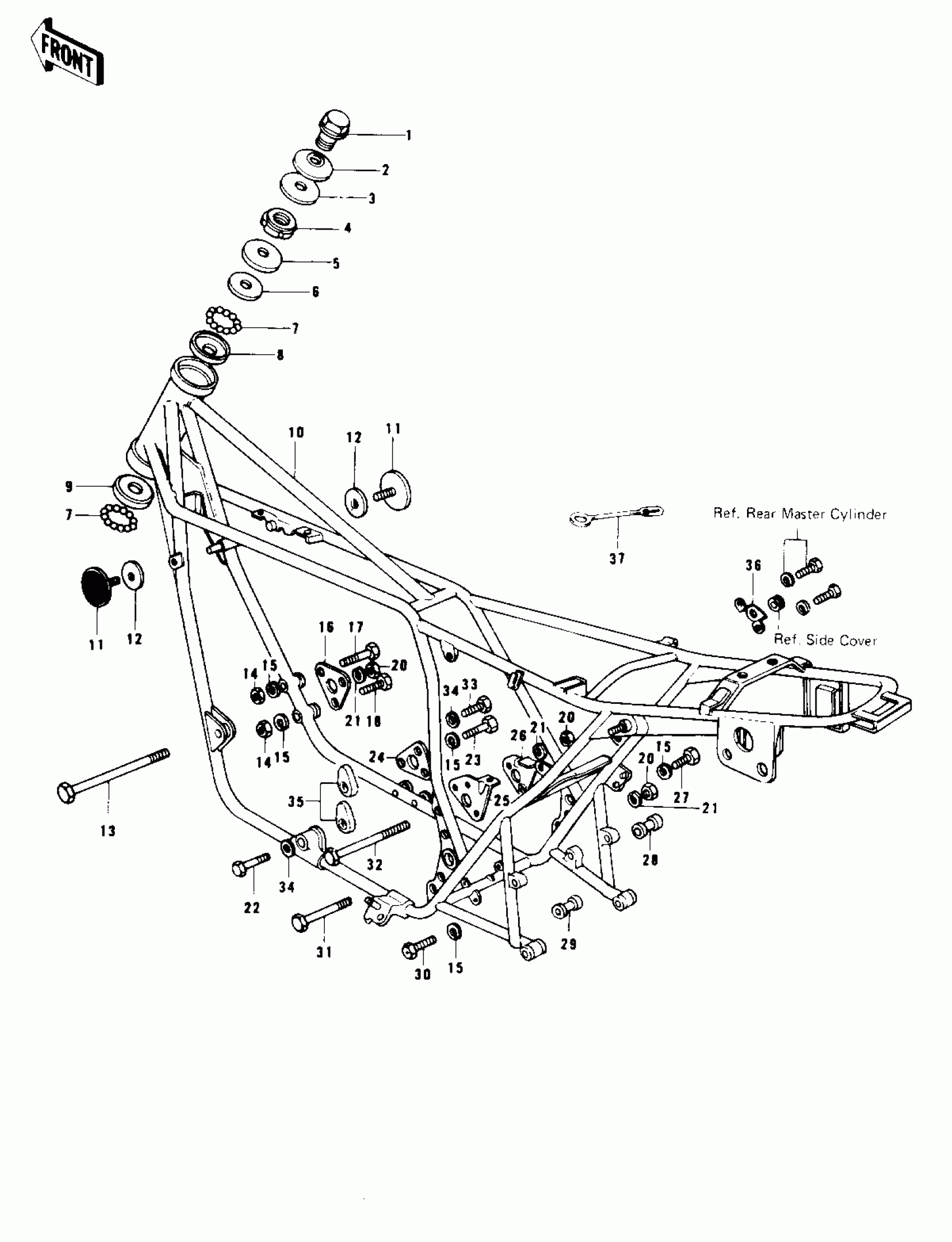

Kawasaki KZ1000 LTD FRAME/FRAME FITTINGS ('77-'78 B1/B2) Diagram

#

Description
Price

1

BOLT,16X25.5

92007-031

Unavailable

2

WASHER,16X41X4

92022-230

$11.93

3

WASHER-WAVE

46100-002

Unavailable

4

NUT,30MM

92090-007

$11.71

5

CAP,STEERING STEM

46098-016

$6.51

6

RACE,STEERING STEM BEARING

92047-011

$14.60

7

BALL-STEEL,1/4

600A0800

$0.62

8

RACE,STEERING STEM BEARING

92048-006

$11.61

9

RACE,STEERING STEM BEARING

92048-008

$16.02

10

FRAME

32002-1003

$1,026.41

11

REFLECTOR-REFLEX,FR

28012-016

$23.25

12

DAMPER,REFLECTOR

92094-011

$4.60

13

BOLT,ENGINE MOUNTING

92091-022

Unavailable

14

NUT,8MM

311B0800

$0.67

15

WASHER SPRING 8MM

461F0800

$0.40

16

PLATE,ENG MOUNT FRON

32030-025

$21.66

17

BOLT,8X63

92001-1397

$5.43

18

BOLT,HEX HEAD,8X59

110G0859

Unavailable

20

NUT,LOCK,10MM

92019-021

$6.11

21

WASHER SPRING 10MM

461F1000

$0.67

22

BOLT,HEX HEAD,12X55

92001-1262

Unavailable

23

BOLT-SMALL-UPSET,8X18

115G0818

$5.23

24

PLATE,ENG MOUNT LOWER

32030-026

$18.71

25

PLATE,REAR ENGINE,L.H

32030-066

Unavailable

26

PLATE,REAR ENGINE,R.H

32030-067

Unavailable

27

BOLT

92001-1578

$8.19

28

COLLAR,ENG MOUNTING

92027-160

Unavailable

29

COLLAR,ENG MOUNTING

92027-159

$29.02

30

BOLT,FLANGED,8X35

92001-1577

Unavailable

31

BOLT,ENGINE MOUNTING

92003-099

Unavailable

32

BOLT,ENGINE MOUNTING

92091-023

Unavailable

33

BOLT,HEX HEAD,12X70

92001-1265

Unavailable

34

WASHER-SPRING,12MM

461F1200

$0.96

35

NUT,12MM

92016-045

$25.59

36

BRACKET,SIDE COV,R.H

32049-101

Unavailable

37

CLAMP,OVER FLOW PIPE

92037-134

$11.50
