Partiron

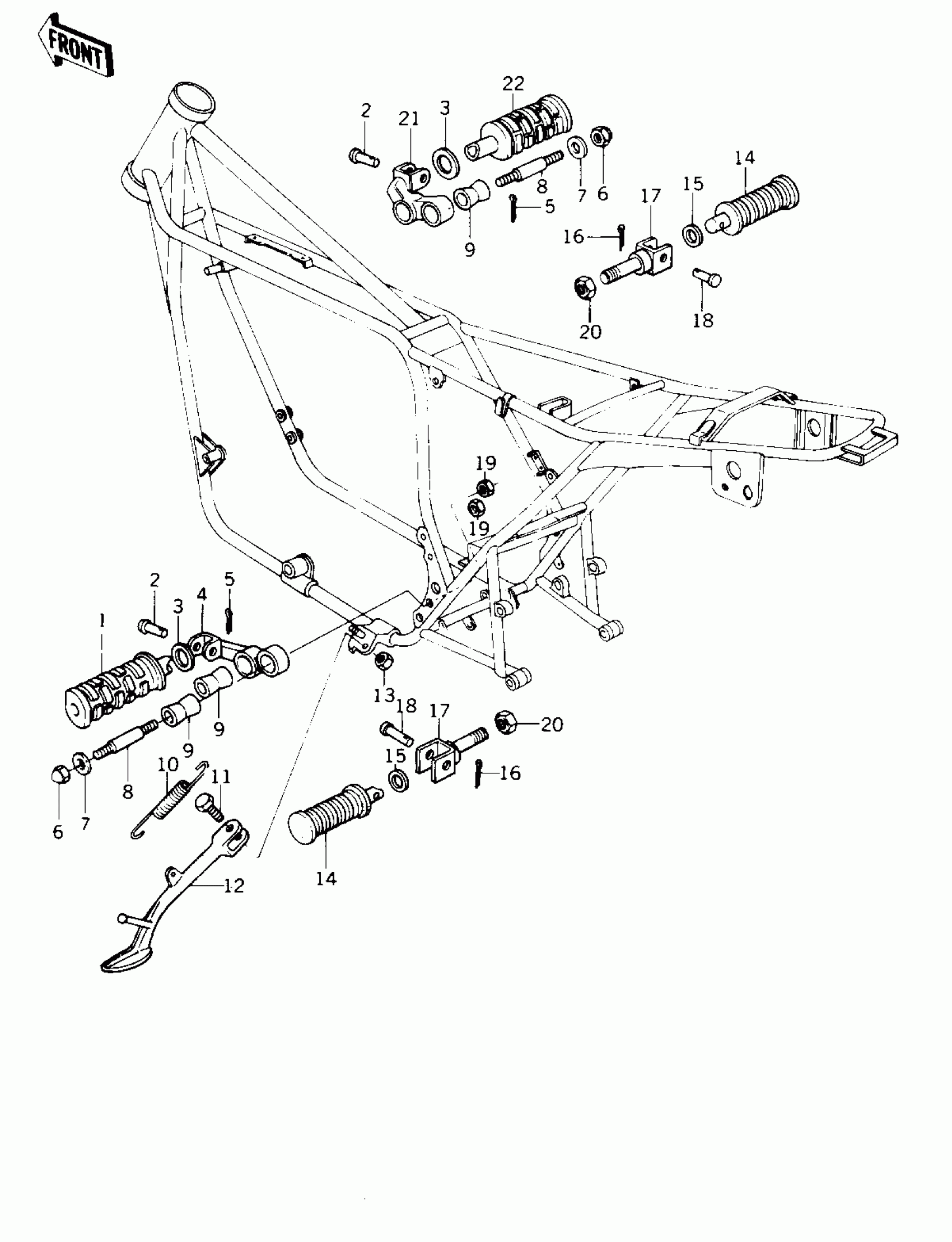

Kawasaki KZ1000 LTD FOOTRESTS/STAND ('79-'80 B3/B4) Diagram

#

Description
Price

1

BAR-FOOTREST,L.H

34028-011

Unavailable

2

PIN,8X31

92043-080

$5.03

3

WASHER,25X36X2.3

92022-250

$3.81

4

BRACKET,FOOTREST,L.H

34003-036

Unavailable

5

PIN COTTER 2.5X16

550D2516

$2.27

6

NUT,CAP AND LOCK,8MM

92019-013

$11.31

7

CAP,FOOTRESTBAR

92102-010

$6.47

8

STUD,FOOTREST BAR FI

92004-048

Unavailable

9

DAMPER RUBBER,FOOTRST

92075-140

$8.39

10

SPRING,STAND

34025-005

$5.79

11

BOLT,SIDE STAND

92003-079

$9.37

12

STAND-SIDE

34024-065

$118.69

13

NUT-HEX-FINE,10MM

315B1000

Unavailable

14

RUBBER,FOOTREST

92076-027

$37.92

15

WASHER-PLAIN (OPT)

92022-199

Unavailable

16

PIN-COTTER,2.0X12

550D2012

$0.89

17

BRACKET,REAR FOOTREST

33028-011

Unavailable

18

PIN,6X28

92043-1464

$6.18

19

NUT-HEX-FINE,10MM

315B1000

Unavailable

20

NUT-HEX-FINE

315B1200

Unavailable

21

BRACKET,FOOTREST,R.H

34003-037

Unavailable

22

BAR-FOOTREST,R.H

34028-012

Unavailable
