FENDERS/SEAT COVER ('79-'80 B3/B4)

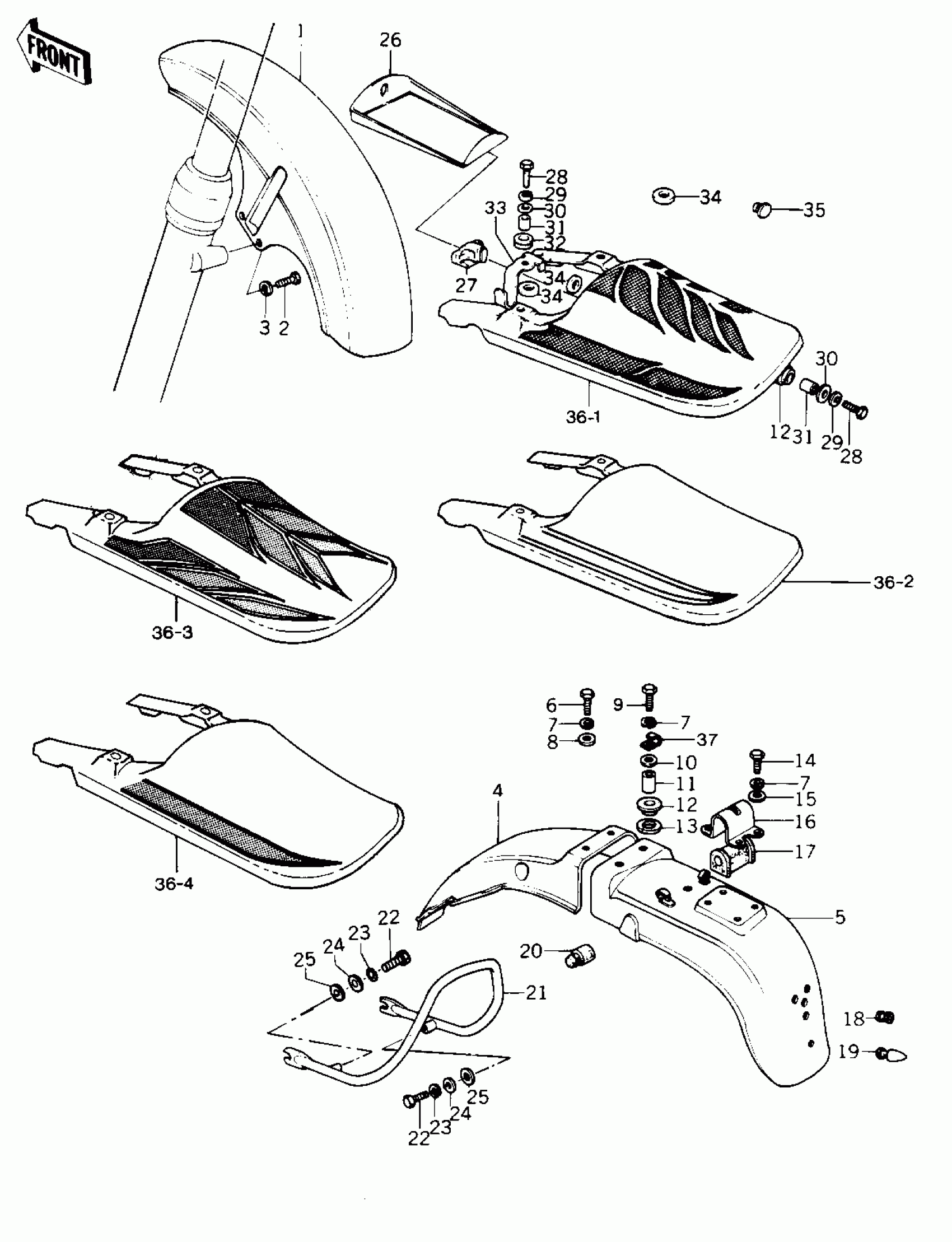

Kawasaki KZ1000 LTD FENDERS/SEAT COVER ('79-'80 B3/B4) Diagram
#
1
FENDER-FR
35004-1047
$430.01
2
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
3
WASHER SPRING 8MM
461F0800
$0.40
4
FENDER-RR
35022-154
Unavailable
5
FENDER-RR
35022-151
$168.43
6
BOLT-UPSET 6X14
112B0614
Unavailable
7
WASHER SPRING 6MM
461F0600
$0.69
8
WASHER PLAIN
92022-024
$3.65
9
BOLT-UPSET
112G0625
$3.62
10
WASHER,7X24X1.6
92022-228
$3.92
11
COLLAR
92027-241
$6.57
12
RUBBER,FENDER COVER
92075-174
$4.78
13
DAMPER,FEMALE
92075-175
$4.39
14
BOLT-UPSET,6X16
112G0616
$1.10
15
WASHER PLAIN 6MM
411B0600
$2.84
16
BRACKET,REAR FENDER
35026-006
Unavailable
17
DAMPER RUBBER,RR FEN
92075-132
Unavailable
18
GROMMET,10MM
92071-019
$3.89
19
DAMPER RUBBER
92075-266
Unavailable
20
DAMPER RUBBER,RR FEN
92075-135
$5.59
21
REAR STAY
35032-040
Unavailable
22
BOLT-UPSET,10X22
112B1022
$4.76
23
WASHER SPRING 10MM
461F1000
$0.67
24
WASHER-PLAIN,10MM
411B1000
$0.93
25
WASHER,10.5X26X2.3
92022-044
$3.92
26
CASE
32099-018
Unavailable
27
PLUG,CASE RUBBER
92074-024
Unavailable
28
BOLT-UPSET
112G0625
$3.62
29
WASHER SPRING 6MM
461F0600
$0.69
30
WASHER,7X24X1.6
92022-228
$3.92
31
COLLAR,6.8X10X12
92027-162
$6.57
32
RUBBER,FENDER COVER
92075-174
$4.78
33
BRACKET,HELMET HOLDER
32122-010
Unavailable
34
DAMPER,FEMALE
92075-175
$4.39
35
PLUG,BACKREST HOLE
92074-022
Unavailable
36-1
REAR FENDER COVER GRN (Canada)
53043-013-8J
$132.15
36-2
REAR FENDER COVER EBY
53043-5502-8G
$122.04
36-3
COVER,REAR FENDER,BLU
53043-013-8K
Unavailable
36-4
COVER,REAR FENDER,EBY
53043-5504-8G
Unavailable
37
CLAMP,WIRING HARNESS,L=60
92037-1069
Unavailable
