CYLINDER/PISTONS/CRANKSHAFT ('77-'78 B1/

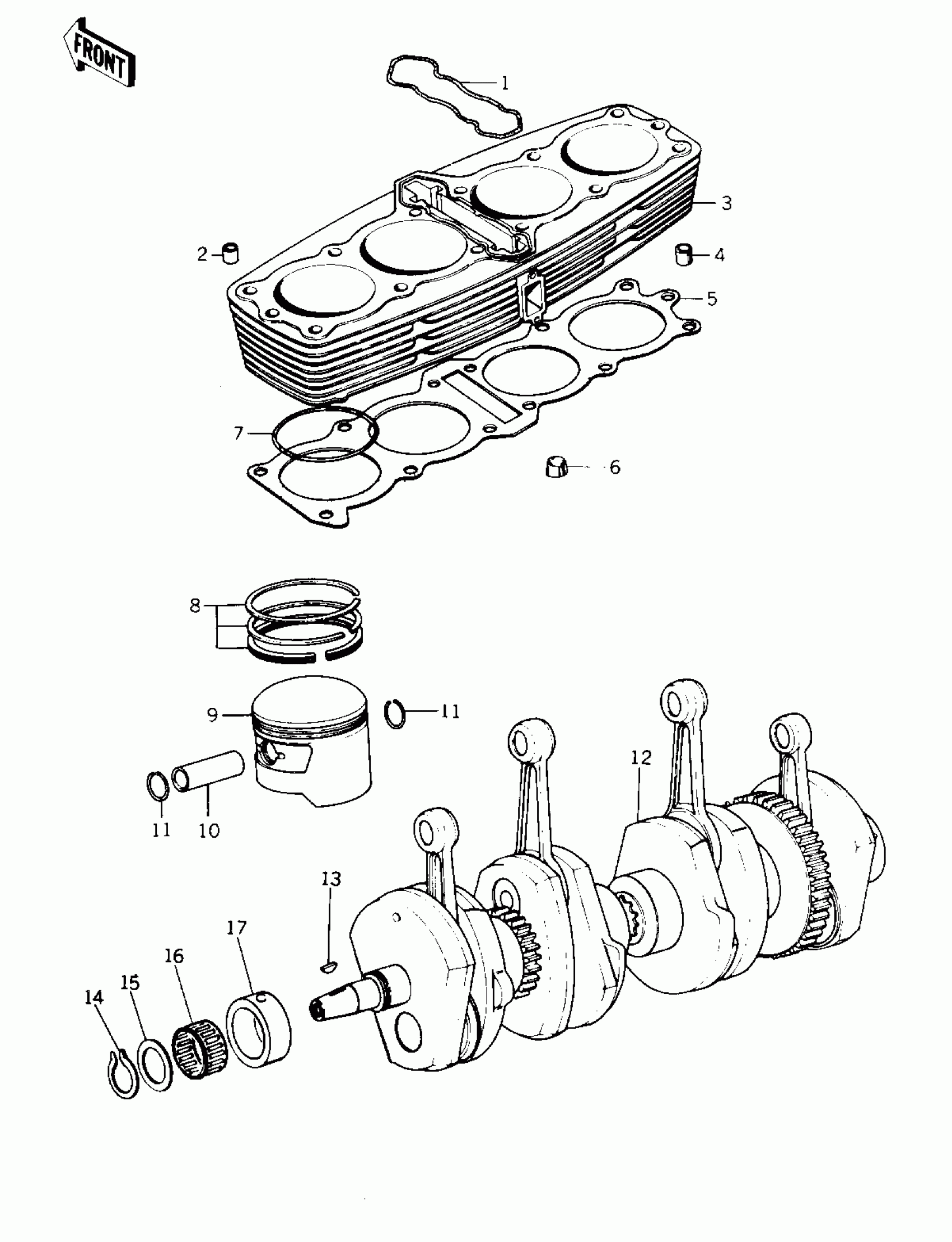

Kawasaki KZ1000 LTD CYLINDER/PISTONS/CRANKSHAFT ('77-'78 B1/ Diagram
#
Description
Price
1
GASKET,CYLINDER RUBE
92055-062
$153.96
2
PIN,DOWEL,10X14
92043-1037
$0.74
3
CYLINDER
11005-163-2H
Unavailable
4
PIN,11X14X12.3
92043-1266
$1.08
5
GASKET,CYLINDER BASE
11009-030
Unavailable
6
RUBBER PLUG,CYLINDER
92074-030
Unavailable
7
"O" RING,73MM
92055-054
$21.81
8
RING SET,STD
13008-5012
$151.39
8
RING SET,STD
13008-5012
Unavailable
8
RING SET,0.020"O/S
13025-5007
Unavailable
8
RING SET,0.020"O/S
13025-5007
Unavailable
8
RING SET,0.040"O/S
13024-5008
Unavailable
8
RING SET,0.040"O/S
13024-5008
Unavailable
9
PISTON,S.T.D
13001-1005
Unavailable
9
PISTON,S.T.D
13001-1005
Unavailable
9
PISTON,0.020'O/S
13029-078
Unavailable
9
PISTON,0.020 O/S
13029-1003
Unavailable
9
PISTON,0.040"0/S
13027-1003
Unavailable
9
PISTON,0.040"0/S
13027-1003
Unavailable
10
PIN-PISTON
13002-022
$58.36
11
CIRCLIP,PISTON PIN
92036-021
$0.49
12
CRANKSHAFT ASSY
13031-056
Unavailable
12
CRANKSHAFT ASSY
13031-1006
Unavailable
13
KEY,WOODRUFF
92038-001
$4.96
14
CIRCLIP-TYPE-C,30MM
480J3000
$6.22
15
SPACER,30X38X1.0
92026-079
$8.86
16
BRG,N,PK304016.8X3
92046-063
Unavailable
17
BUSHING,CRANKSHAFT
92028-121
Unavailable
