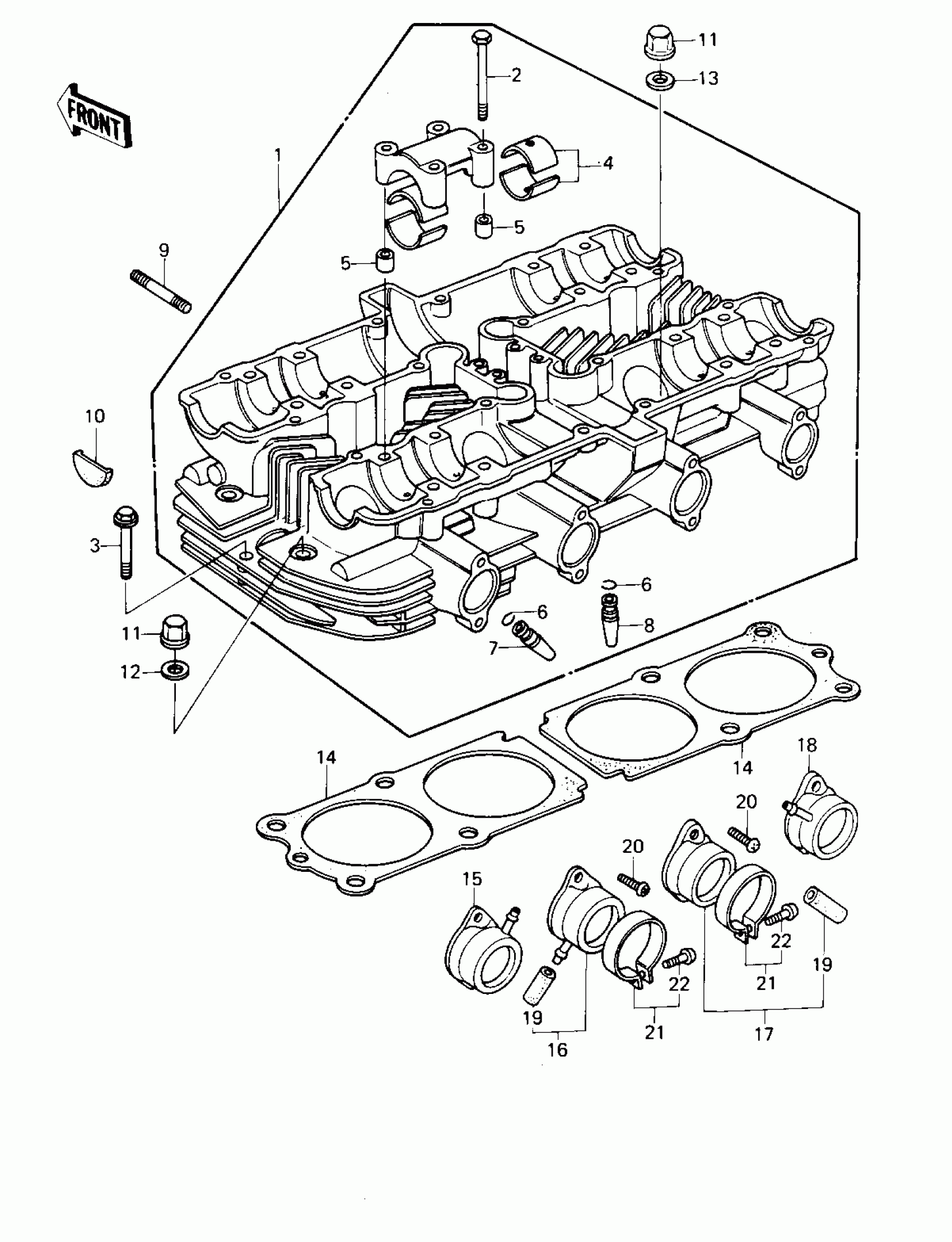

Kawasaki KZ1000 LTD CYLINDER HEAD ('79-'80 B3/B4) Diagram

#

Description
Price

1

CYLINDER HEAD,BARREL

11002-1019

Unavailable

2

BOLT,6X43

92002-1881

$5.53

3

BOLT,FLANGED,6X45

92003-092

$5.79

4

BUSHING,CAMSHAFT

13034-030

$17.90

5

PIN,DOWEL,6.3X8X14

92042-007

$4.31

6

RING-SNAP,VALVE GUIDE

92036-023

$0.48

7

GUIDE-VALVE,INTAKE

12013-009

$22.09

8

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

9

STUD,8X30

92004-1069

$5.74

10

PLUG,CAM SHAFT

92066-017

Unavailable

11

NUT,FLANGED CAP,10MM

92015-076

$10.39

12

WASHER,PLAIN,10MM

92022-215

$9.34

13

WASHER-PLAIN,10MM

411B1000

Unavailable

14

GASKET,CYLINDER HEAD

11004-076

Unavailable

15

HOLDER,CARBURETOR,L.

16065-029

$102.45

16

HOLDER,CARBURETOR,L.

16065-029

$102.45

17

HOLDER-R.H CARBRETOR

16065-028

$102.45

18

HOLDER-R.H CARBRETOR

16065-028

$102.45

19

PLUG,12X25

92068-006

$3.25

20

SCREW PAN HEAD 6X18

220B0618

$2.79

21

CLAMP,HOLDER

92037-077

$9.55

22

SCREW,PAN HEAD

92011-037

Unavailable
