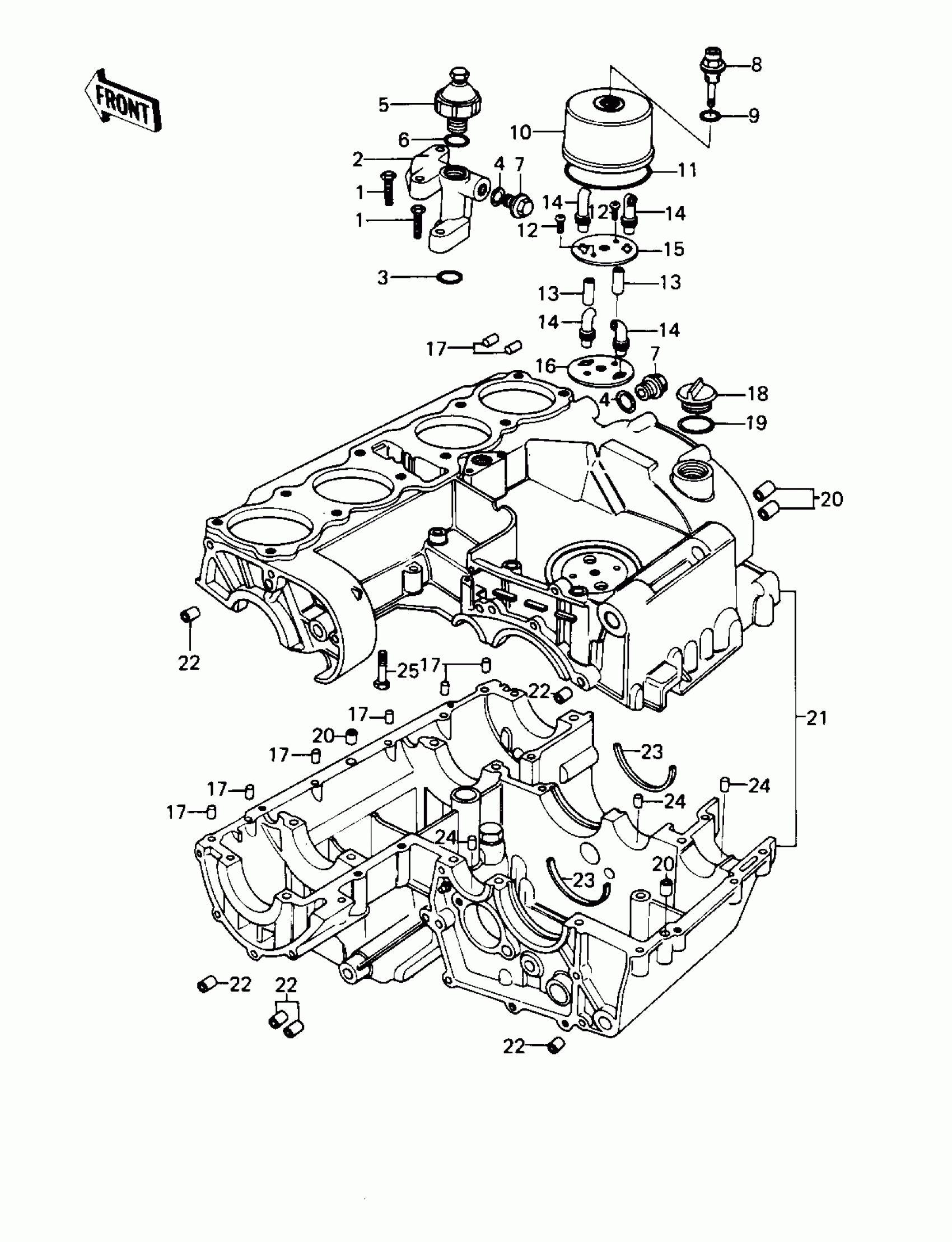

Kawasaki KZ1000 LTD CRANKCASE/BREATHER COVER ('79-'80 B3/B4) Diagram

#

Description
Price

1

BOLT,HEX HEAD,6X35

92001-164

$6.60

2

PIPE

16109-003

Unavailable

3

O RING,18MM

670B2018

$1.42

4

O RING,15MM

670B2015

$1.42

5

SWITCH,OIL PRESSURE

27010-1013

$39.96

6

RING-O,19.5X1.5

92055-055

$4.31

7

PLUG,14X12

92066-021

$22.10

8

BOLT,BREATHER FITTING

92003-098

$49.97

9

O RING,16MM

670B2016

$1.36

10

BODY,BREATHER

14070-007

$46.10

11

RING-O,91.6X3.4

92055-052

$9.89

12

SCREW PAN HEAD 6X40

220B0640

Unavailable

13

COLLAR,IGNITION COIL

92027-276

Unavailable

14

TUBE,BREATHER

92059-140

Unavailable

15

PLATE,BREATHER

14068-009

$11.13

16

PLATE,BREATHER

14068-007

$9.69

17

PIN,DOWEL,6X14

610A0614

$3.52

17

PIN,DOWEL,6X16

92042-016

$5.00

18

CAP-OIL FILLER

16115-013

$19.96

19

RING-O,31.5X2.6

92055-049

$4.31

20

PIN,DOWEL,10X14

92043-1037

$0.74

21

CRANKCASE SET

14001-5025

Unavailable

21

CRANKCASE SET

14001-5042

Unavailable

22

PIN,DOWEL,6.3X8X14

92042-007

$5.70

23

RING-POSITION,T=1.98

14013-1004

$4.96

23

RING-POSITION,T=1.90

14013-013

Unavailable

24

BOLT,HEX HEAD,8X72

92003-107

Unavailable

25

PIN,DOWEL,6X16

92042-016

$5.00
