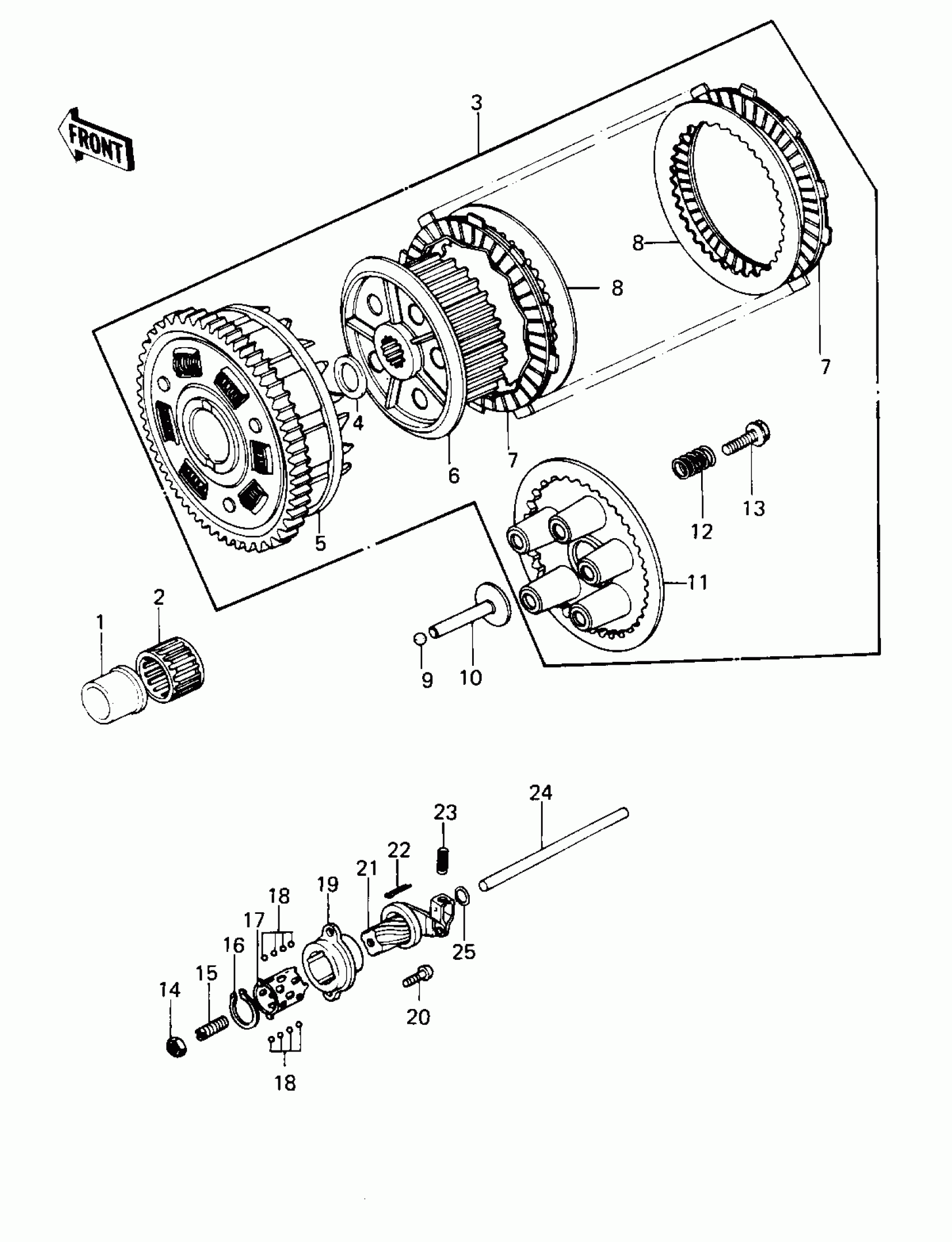

Kawasaki KZ1000 LTD CLUTCH ('79-'80 B3/B4) Diagram

#

Description
Price

1

BUSHING,CLUTCH

92028-135

Unavailable

2

BEARING-NEEDLE,KTV323723

92046-028

$21.24

3

CLUTCH-ASSY

13081-1014

Unavailable

4

SPACER,25.5X47X2.5

92026-022

$9.91

5

CLUTCH-ASSY

13081-1367

Unavailable

6

CLUTCH-ASSY

13081-1367

Unavailable

7

PLATE,CLUTCH FRICTION

13088-030

$26.17

8

PLATE,CLUTCH STEEL

13089-022

Unavailable

9

BALL-STEEL,3/8"

600A1200

$1.56

10

PUSHER,CLUTCH SPRG P

13116-022

Unavailable

11

PLATE,CLUTCH SPRING

13187-006

Unavailable

12

SPRING,CLUTCH

92081-1033

$7.38

13

BOLT,FLANGED,6X18

92001-1066

$6.22

14

NUT-HEX-SMALL,8MM

318B0800

$0.59

15

SCREW,SLOTTED,8X25

92014-014

Unavailable

16

CIRCLIP-TYPE-C,15MM

480J1500

$2.31

17

RETAINER

13197-004

Unavailable

18

BALL,STEEL,1/8"

600A0400

$1.40

19

OUTER,CLUTCH RELEASE

13118-011

Unavailable

20

SCREW-PAN-CROS,6X16

220B0616

$2.84

21

INNER,CLUTCH RELEASE

13102-019

Unavailable

22

PIN-COTTER,1.6X15

550D1615

$2.51

23

SPRING,CLUTCH RELEASE

92081-069

$7.51

24

PUSH ROD,CLUTCH

13116-021

Unavailable

25

O RING,7MM

670B1507

$1.28
