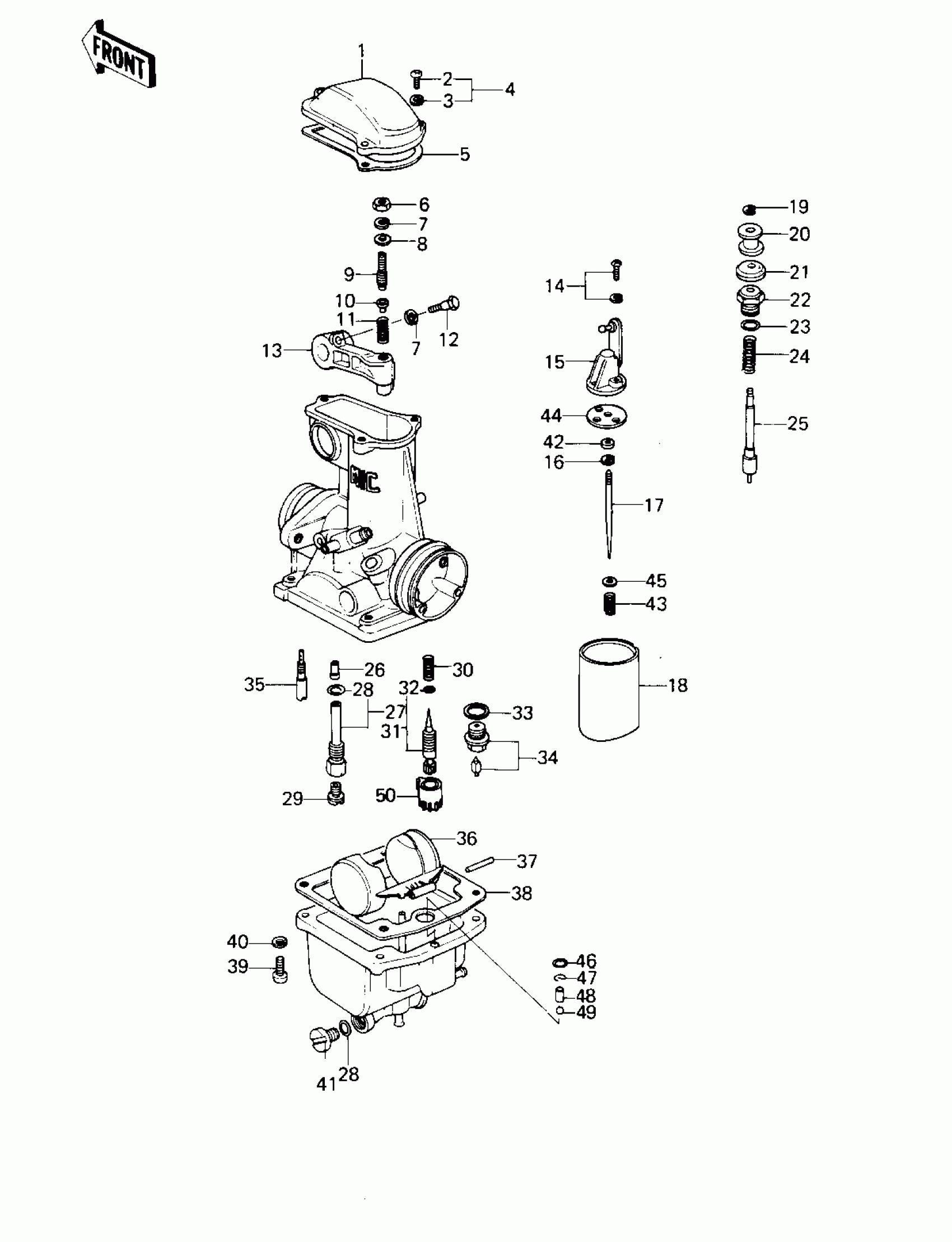

Kawasaki KZ1000 LTD CARBURETOR PARTS (KZ1000-B3) Diagram

#

Description
Price

1

TOP,MIXING CHAMBER

16005-027

$24.02

2

SCREW-PAN-CROS

220B0414

$4.28

3

WASHER SPRING 4MM

461F0400

Unavailable

4

SCREW-PAN-WS-CROS

223B0414

$1.52

5

GASKET,CHAMBER TOP

16019-031

$43.53

6

NUT,5MM

16003-013

$9.40

6

NUT-HEX,5MM

312B0500

Unavailable

7

WASHER SPRING 5MM

461F0500

$0.69

8

WASHER,PLAIN

16039-016

Unavailable

9

SCREW,SLOTTED

16046-012

Unavailable

10

SEAT-SPRING

16057-002

Unavailable

11

SPRING

16040-026

$6.62

12

BOLT,HEX HEAD,5X14

16067-006

Unavailable

13

LEVER,THROTTLE

39075-1001

Unavailable

14

SCREW,PAN HEAD,3X14

16033-031

Unavailable

15

BRACKET,THROTTLE VLV

11034-1238

Unavailable

16

CLAMP,E-TYPE

16008-010

$9.21

17

JET NEEDLE,5CN18

16009-1030

$27.13

18

VALVE,THROTTLE,CAZ.0

16025-1014

$86.81

19

CIRCLIP

16076-003

$8.92

20

COLLAR

16073-014

$10.47

21

CAP,STARTER PLUNGER

16039-015

$6.88

22

CAP,STARTER PLUNGER

16012-015

Unavailable

23

O RING,9MM

670B1509

$3.65

24

SPRING,STARTER PLUG

16013-008

Unavailable

25

PLUNGER,STARTER

16016-021

Unavailable

26

NEEDLE JET,AO-6

16017-1033

$24.72

27

PIPE,BLEED

49122-1004

$21.51

28

"0" RING,MAIN JET COV

16038-016

$3.02

29

MAIN JET,#A102.5

92063-1028

$17.74

29

MAIN JET,#A100

92063-1033

Unavailable

29

MAIN JET,#A105R

92063-1042

Unavailable

29

JET-MAIN NO 107.5R

92063-073

Unavailable

30

SPRING,PILOT SCREW

16022-016

$9.10

31

SCREW,PILOT ADJUSTING

16014-018

Unavailable

32

"O" RING

16038-024

$1.56

33

WASHER FLOAT VLV SEAT

16029-004

$3.89

34

FLOAT VALVE ASSY

16030-027

Unavailable

35

PILOT JET,#A15

92064-1017

Unavailable

36

FLOAT

16031-031

$172.74

37

PIN,FLOAT

16032-003

$6.57

38

GASKET,FLOAT CHAMBER

11009-1562

$24.64

39

SCREW PAN HEAD 4X16

220B0416

$1.66

40

WASHER SPRING 4MM

461F0400

Unavailable

41

SCREW,GUIDE

16049-007

Unavailable

42

COLLAR,THROTTLE VALVE

92027-1103

$7.34

43

SPRING,JET NEEDLE

92081-1072

$5.54

44

PLATE,JET NEEDLE

13169-1107

Unavailable

45

WASHER,THROTTLE VALVE

92022-1024

$6.61

46

"O" RING,CHECK VALVE

92055-1059

$11.60

47

CLAMP,SPRING,CHECK VL

92037-1123

Unavailable

48

WEIGHT,PUMP,CHECK VLV

13042-1004

Unavailable

49

BALL,STEEL,CHECK VALV

92140-1003

Unavailable

50

CAP,LIMITER

11012-1041

Unavailable
