Description

Price

1

TOP,MIXING CHAMBER

16005-027

$24.02

2

SCREW-PAN-WS-CROS

223B0414

$1.52

3

WASHER SPRING 4MM

461F0400

Unavailable

4

GASKET,CHAMBER TOP

16019-031

$43.53

5

NUT,5MM

16003-013

$9.40

6

WASHER SPRING 5MM

461F0500

$0.69

7

WASHER,PLAIN

16039-016

Unavailable

8

SCREW,SLOTTED

16046-012

Unavailable

9

SEAT-SPRING

16057-002

Unavailable

10

SPRING

16040-026

$6.62

11

BOLT,HEX HEAD,5X14

16067-006

Unavailable

12

LEVER,THROTTLE

39075-1001

Unavailable

13

SCREW,PAN HEAD,3X14

16033-031

Unavailable

14

BRACKET,THROTTLE VLV

11034-1238

Unavailable

15

CLAMP,E-TYPE

16008-010

$9.21

16

JET NEEDLE,5CN7

16009-1014

$25.47

17

VALVE,THROTTLE,CAZ.0

16025-1014

$86.81

18

CIRCLIP

16076-003

$8.92

19

COLLAR

16073-014

$10.47

20

CAP,STARTER PLUNGER

16039-015

$6.88

21

CAP,STARTER PLUNGER

16012-015

Unavailable

22

O RING,9MM

670B1509

$3.65

23

SPRING,STARTER PLUG

16013-008

Unavailable

24

PLUNGER,STARTER

16016-021

Unavailable

25

NEEDLE JET,AO-3

16017-1017

$25.21

26

PIPE,BLEED

49122-1004

$21.51

27

"0" RING,MAIN JET COV

16038-016

$3.02

28

MAIN JET,#A102.5

92063-1028

$17.74

29

SPRING,PILOT SCREW

16022-016

$9.10

30

SCREW,PILOT ADJUSTING

16014-018

Unavailable

31

"O" RING

16038-024

$1.56

32

CAP,LIMITER

11012-1041

Unavailable

33

WASHER FLOAT VLV SEAT

16029-004

$3.89

34

FLOAT VALVE ASSY

16030-027

Unavailable

35

PILOT JET,#A15

92064-1017

Unavailable

36

FLOAT

16031-031

$172.74

37

PIN,FLOAT

16032-003

$6.57

38

GASKET,FLOAT CHAMBER

11009-1563

Unavailable

39

SCREW PAN HEAD 4X16

220B0416

$1.66

40

SCREW,GUIDE

16049-007

Unavailable

41

COLLAR,THROTTLE VALVE

92027-1103

$7.34

42

SPRING,JET NEEDLE

92081-1072

$5.54

43

PLATE,JET NEEDLE

13169-1107

Unavailable

44

WASHER,THROTTLE VALVE

92022-1024

$6.61

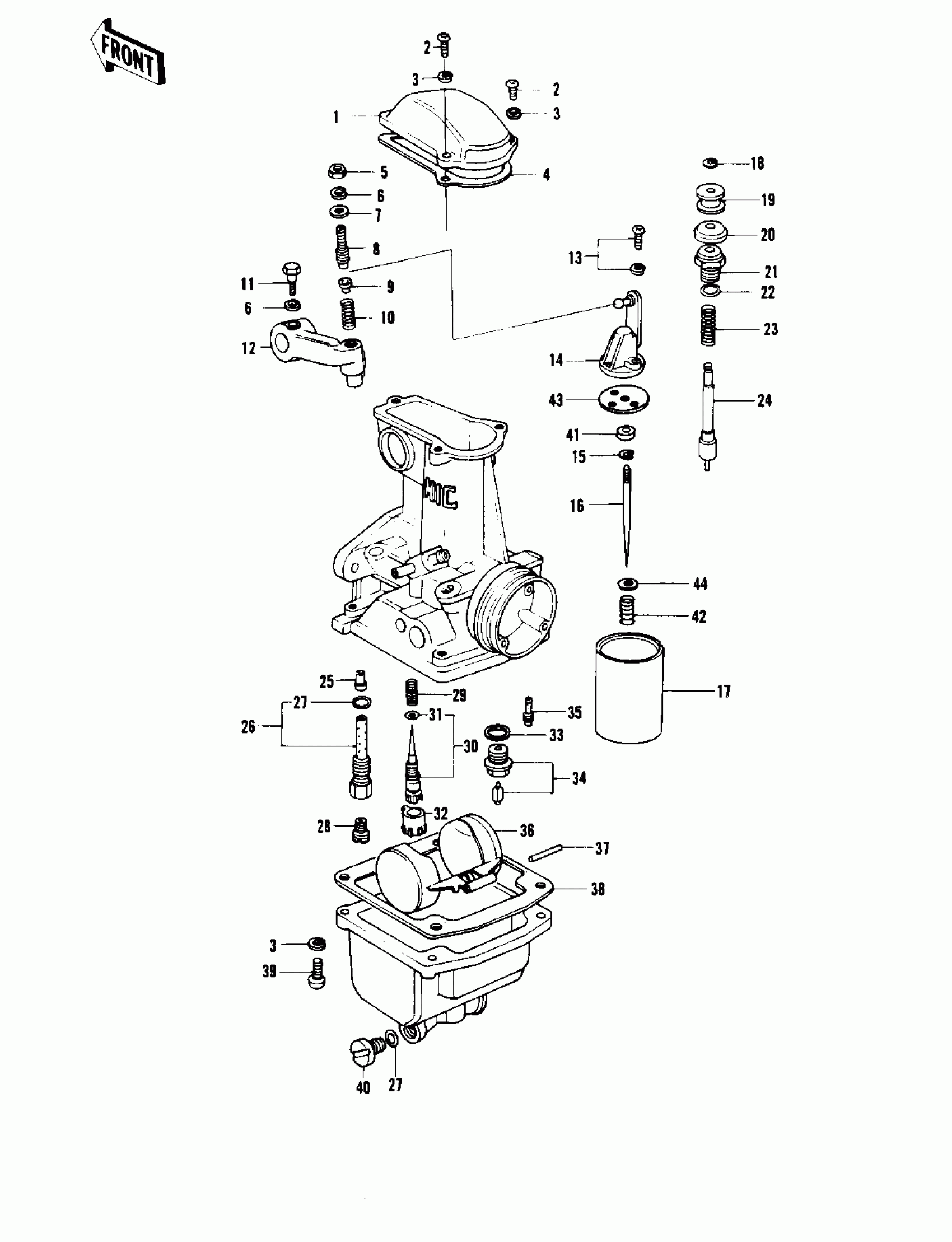

Kawasaki KZ1000 LTD CARBURETOR PARTS (KZ1000-B2) Diagram

TOP,MIXING CHAMBER

SCREW-PAN-WS-CROS

WASHER SPRING 4MM

GASKET,CHAMBER TOP

NUT,5MM

WASHER SPRING 5MM

WASHER,PLAIN

SCREW,SLOTTED

SEAT-SPRING

SPRING

BOLT,HEX HEAD,5X14

LEVER,THROTTLE

SCREW,PAN HEAD,3X14

BRACKET,THROTTLE VLV

CLAMP,E-TYPE

JET NEEDLE,5CN7

VALVE,THROTTLE,CAZ.0

CIRCLIP

COLLAR

CAP,STARTER PLUNGER

CAP,STARTER PLUNGER

O RING,9MM

SPRING,STARTER PLUG

PLUNGER,STARTER

NEEDLE JET,AO-3

PIPE,BLEED

"0" RING,MAIN JET COV

MAIN JET,#A102.5

SPRING,PILOT SCREW

SCREW,PILOT ADJUSTING

"O" RING

CAP,LIMITER

WASHER FLOAT VLV SEAT

FLOAT VALVE ASSY

PILOT JET,#A15

FLOAT

PIN,FLOAT

GASKET,FLOAT CHAMBER

SCREW PAN HEAD 4X16

SCREW,GUIDE

COLLAR,THROTTLE VALVE

SPRING,JET NEEDLE

PLATE,JET NEEDLE

WASHER,THROTTLE VALVE
