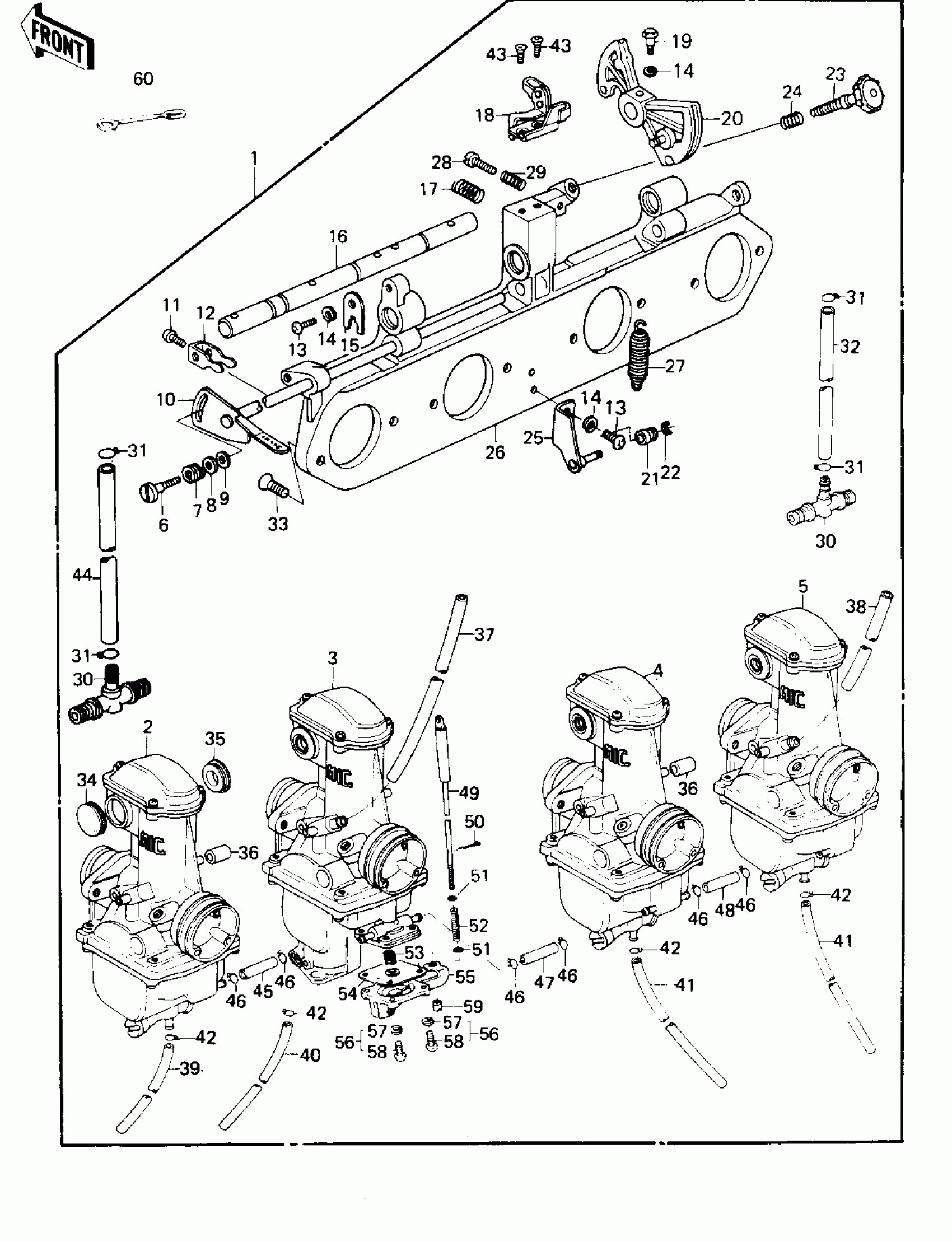

Kawasaki KZ1000 LTD CARBURETOR ASSY (KZ1000-B4) Diagram

#

Description
Price

1

CARBURETOR ASSY

16001-1202

$1,138.03

2

CARBURETOR,L.H OUTSI

16001-1227

$433.21

3

CARBURETOR,L.H,INSIDE

16001-1231

$331.52

4

CARBURETOR,R.H,INSIDE

16001-1232

$347.23

5

CARBURETOR,R.H OUTSI

16001-1230

$327.40

6

SCREW

16046-005

Unavailable

7

SPRING,F

16040-009

Unavailable

8

WASHER,PLAIN

16039-020

Unavailable

8

WASHER PLAIN 5MM

410B0500

Unavailable

9

WASHER,PLAIN,NYLON

16039-019

Unavailable

10

SHAFT,STARTER PLUNGE

16041-021

$54.54

11

SCREW,PAN HEAD,5X7

16046-007

Unavailable

12

LEVER,STARTER PLUNGE

13168-1026

Unavailable

13

SCREW-PAN-CROS

220B0514

$4.04

14

WASHER SPRING 5MM

461F0500

$0.69

15

PLATE,SHAFT STOPPER

16055-012

Unavailable

16

SHAFT,CARB CONNECTIO

16041-017

Unavailable

17

SPRING,CABLE PULLY

16040-022

Unavailable

18

BRACKET,THROTTLE CAB

16077-017

$59.26

19

BOLT,HEX HEAD,5X14

16067-006

Unavailable

20

PULLEY,THROTTLE CABLE

13236-1014

Unavailable

21

RING

16073-016

Unavailable

22

CIRCLIP 3MM

482K3000

$1.78

23

SCREW,THROTTLE STOP

16021-1010

$32.19

24

SPRING,THROTTLE STOP

16022-017

Unavailable

25

BRACKET,THROTTLE CABL

16077-016

$15.67

26

HOLDER,CARBURETOR

16065-049

$114.50

27

SPRING,THROTTLE PULL

92081-1028

Unavailable

28

SCREW,ADJUSTER

16021-1011

$11.07

29

SPRING,THROTTLE ADJST

16022-010

Unavailable

30

JOINT,FUEL PIPE

16046-002

$49.81

31

CLAMP,CARB CONECT HOS

92037-056

$6.60

32

HOSE,FUEL,6.5OX11.5O

92059-1026

Unavailable

33

SCREW,6X14

16033-029

Unavailable

33

SCREW-CSK-CROS,6X14

221B0614

Unavailable

34

CAP,RUBBER

16039-042

Unavailable

35

GROMMET,CARBURETOR

92071-104

Unavailable

36

HOSE,6X11.5X16

92059-141

$17.97

37

HOSE,AIR VENT,5X8X55

92059-1028

Unavailable

38

HOSE,AIR VENT,5X8X55

92059-1028

Unavailable

39

HOSE,FUEL OVERFLOW

92059-147

Unavailable

40

HOSE,FUEL OVERFLOW

92059-134

Unavailable

41

HOSE,FUEL OVERFLOW

92059-134

Unavailable

42

CLAMP,CARBURETOR HLDR

92037-178

Unavailable

43

SCREW CNTSNK HD 5X10

221B0510A

$3.67

44

HOSE,6.50X11.50X100

92059-1059

$35.79

45

TUBE,3.5X7.5X47.5

92059-1072

$14.00

46

CLAMP,TUBE

92037-1124

$6.11

47

TUBE,3.5X7.5X64.5

92059-1071

$33.46

48

TUBE,3.5X7.5X47.5

92059-1072

$14.00

49

ROD ASSY,PUMP

46102-1013

Unavailable

50

COTTER PIN,1.0X6

550D1006

$3.19

51

WASHER,PUMP ROD

92022-1138

Unavailable

52

SPRING,PUMP ROD

92081-1138

Unavailable

53

SPRING,PUMP DIAPHRAGM

92081-1139

Unavailable

54

DIAPHRAGM,PUMP

43028-1012

Unavailable

55

COVER ASSY,PUMP

14025-1139

Unavailable

56

SCREW-PAN-WS-CROS

223B0414

$1.52

57

WASHER SPRING 4MM

461F0400

Unavailable

58

SCREW-PAN-CROS

220B0414

$4.28

59

NUT,PUMP ROD

92015-1075

Unavailable

60

CLAMP,OVER FLOW PIPE

92037-134

$11.50
